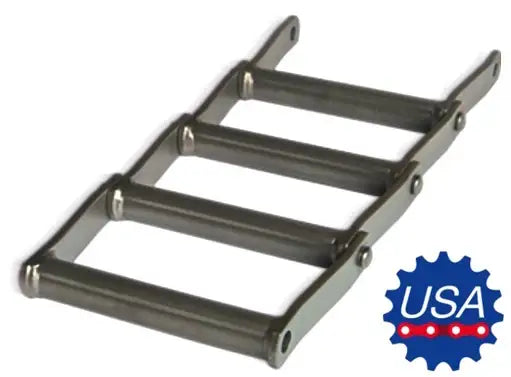

Welded Steel Drag Chain

Welded steel drag chains are designed in a way that allows for a larger "carry" surface for more material distribution. Because of the design welded steel drag chain is found in lumber mills, aggregate facilities, pulp, paper, mining, asphalt, and many other applications. Our welded steel drag chains separate themselves by being made with top-quality steel alloys, heat-treated surfaces, and tier-one quality control for a consistent chain every time. Unlike other suppliers, we also offer a Made in USA welded steel chain option right off the shelf! We carry all 26 sizes of standard welded steel chain in stock and also supply sprockets, attachments, and wear surfaces to accompany the chain. Something important to note is that welded steel drag chains run on the exact same sprockets as their cast drag-chain counter-parts.

Welded Steel Drag Chain Options

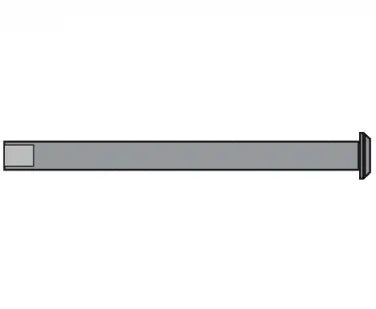

WD - Standard welded steel drag chain with heat-treated pins
WDH - Welded steel drag chain with heat-treated pins, barrels, and side-bars
WDH---XHD - Extra Heavy Duty Welded steel drag chain with heat-treated pins, barrels, and side-bars.
SS - Stainless Steel Welded Steel Drag Chain

Welded Steel Drag Chain Sizes

Size	Pitch (A)	(B)	(C)	(D)	(E)	(F)	(G)	Weight Per Ft
WD102	5.00"	1-1/2"	3/8"	3/4"	9-1/4"	7-3/4"	6-3/8"	12.0 LBS
WDH102	5.00"	1-1/2"	3/8"	3/4"	9-1/4"	7-3/4"	6-3/8"	12.0 LBS
WD104	6.00"	1-1/2"	3/8"	3/4"	6-3/4"	5-3/8"	4-1/8"	8.6 LBS
WDH104	6.00"	1-1/2"	3/8"	3/4"	6-3/4"	5-3/8"	4-1/8"	8.6 LBS
WD110	6.00"	1-1/2"	3/8"	3/4"	11-3/4"	10-1/4"	9.00"	12.0 LBS
WDH110	6.00"	1-1/2"	3/8"	3/4"	11-3/4"	10-1/4"	9.00"	12.0 LBS
WD112	8.00"	1-1/2"	3/8"	3/4"	11-3/4"	10-1/4"	9.00"	10.0 LBS
WDH112	8.00"	1-1/2"	3/8"	3/4"	11-3/4"	10-1/4"	9.00"	10.0 LBS
WD116	8.00"	1-3/4"	3/8"	3/4"	15-1/2"	14-1/8"	13.00"	12.9 LBS
WDH116	8.00"	1-3/4"	3/8"	3/4"	15-1/2"	14-1/8"	13.00"	12.9 LBS
WD118	8.00"	2.00"	1/2"	7/8"	16-5/8"	14-7/8"	13-1/4"	18.0 LBS
WDH118	8.00"	2.00"	1/2"	7/8"	16-5/8"	14-7/8"	13-1/4"	18.0 LBS
WDH118XHD	8.00"	2.00"	5/8"	1.00"	17-3/8"	15-1/8"	13-1/4"	21.0 LBS
WD120	6.00"	2.00"	1/2"	7/8"	12.0"	10-1/4"	8-3/4"	18.0 LBS
WDH120	6.00"	2.00"	1/2"	7/8"	12.0"	10-1/4"	8-3/4"	18.0 LBS
WDH120XHD	6.00"	2.00"	5/8"	1.00"	12-3/4"	10-1/2"	8-3/4"	21.0 LBS
WD122	8.00"	2.00"	1/2"	7/8"	12.0"	10-1/4"	8-3/4"	15.0 LBS
WDH122	8.00"	2.00"	1/2"	7/8"	12.0"	10-1/4"	8-3/4"	15.0 LBS
WDH122XHD	8.00"	2.00"	5/8"	1.00"	12-3/4"	10-1/2"	8-3/4"	17.60 LBS
WD480	8.00"	2.00"	1/2"	7/8"	14-1/2"	12-3/4"	11.00"	16.90 LBS
WDH480	8.00"	2.00"	1/2"	7/8"	14-1/2"	12-3/4"	11.00"	16.90 LBS
WDH480XHD	8.00"	2.00"	5/8"	1.00"	15-1/4"	13.00"	11.00"	19.50 LBS
WD580	8.00"	2.00"	0.50"	1.00"	14.63"	12.10"	11.20"	19.40 LBS
WDH580	8.00"	2.00"	0.50"	1.00"	14.63"	12.10"	11.20"	19.40 LBS
WD680	8.00"	2.00"	0.63"	1.00"	15.33"	13.00"	11.20"	21.00 LBS
WDH680	8.00"	2.00"	0.63"	1.00"	15.33"	13.00"	11.20"	21.00 LBS

Welded Steel Drag Chain Attachments

Flight Attachment:

The flight attachment is designated by C1/2, C1, C2, C3, or C4 depending on the height and thickness. These attachments create an even larger carrying surface and can even be used in elivating applications.
RR Attachment:

The RR attachment is used anywhere from gripping to elevating applications and has two points (one on each side) of the chain.

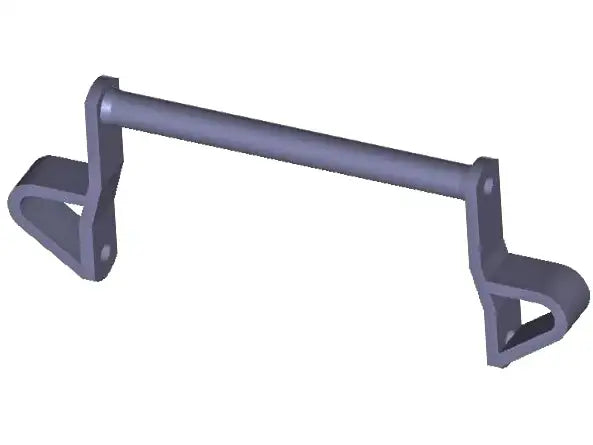

Wing Attachment:

Wing attachments are used to create a larger carry surface, catch "run-off", or for attaching additional fixtures to the chain.
