WD680 Chain

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Welded Steel Drag Chain > WD680 Drag Chain

WD680 Chain

Note: Custom Cut to Length Chain Also Available
SKU: WD680-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715462889839" , "metafield_value":""}]
WD680 Chain Features
WD680 Chain Specifications
WD680 chain features a large and wide pushing area, which gives it the capability of caring a sizable capacity when operating at low to even moderate speeds. WD680 welded steel chain is found in a wide range of applications including; conveyors, forest products, grain handling, heavy duty conveyors, pulp and paper industry, sugar processing, and more! This WD680 drag chain is engineered to be durable, reliable, and high strength. Then manufactured using a select grade of high quality alloy steels to provide a long working life with solid performance.

Dimensions:

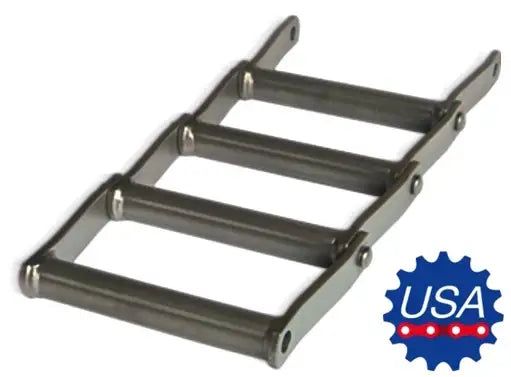

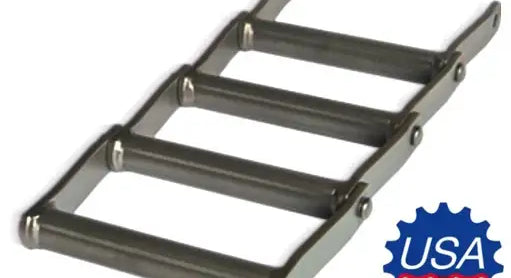

WD680 Chain
  • Chain Size: WD680
  • Pitch (P): 8.00"
  • Sidebar Height (H): 2.00"
  • Sidebar Thickness (S): 0.63"

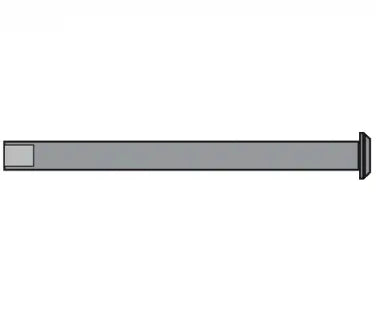

  • Pin Diameter (D6): 1.00"
  • Overall Width (F1): 15.33"
  • Length Of Bearing (B): 13.00"
  • Maximum Sprocket Thickness (L): 11.20"
  • Weight Per Foot: 21.00 LBS

Additionally, we offer a full line of high quality WD680 chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We can even supply custom made to order sprockets within a really great lead-time. We can also supply WD680 wing attachments along with the C 1/2 - C4 attachments and even the RR attachments, and have them assembled onto the chain in any configuration needed. For pricing and availability on WD580 chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WD680
  • Pitch (P): 8.00"
  • Sidebar Height (H): 2.00"
  • Sidebar Thickness (S): 0.63"
  • Pin Diameter (D6): 1.00"
  • Overall Width (F1): 15.33"
  • Length Of Bearing (B): 13.00"
  • Maximum Sprocket Thickness (L): 11.20"
  • Weight Per Foot: 21.00 LBS
