DS06ATB25H Sprocket

Note:

Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.

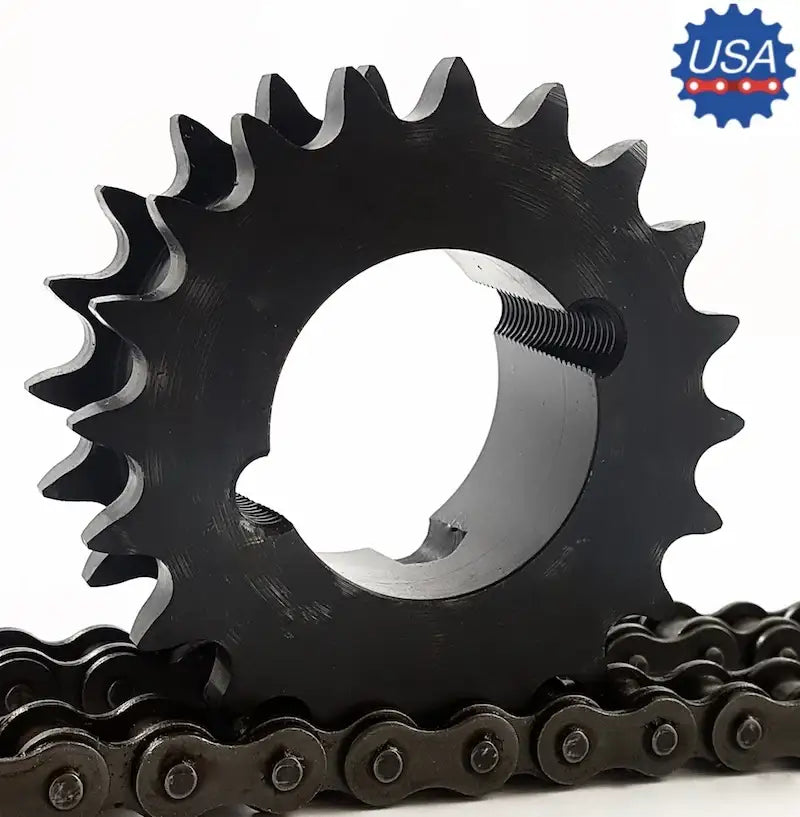

Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.

SKU: DS06ATB25H-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Buy it With:

Metric 06B Roller Chain - 10ft Box $35.99
Premium 06B Roller Chain - 10ft Box $77.99

DS06ATB25H Sprocket Description/Features

DS06ATB25H Sprocket Specifications

DS06ATB25H Sprocket is a double single taper bushed 25-tooth metric roller chain sprocket made for 06B-1 roller chain. Double single DS06ATB25H sprockets are made to run two single-strands of roller chain parallel to each other and utilizes a 1108 taper bushing. Specifically, this sprocket is manufactured in accordance with ISO, DIN, and British Standards so it directly interchanges with previous sprockets in the application along with other manufacture brands. Utilizing premium grade alloy steel and precision machining our DS06ATB25H sprocket exceeds in performance, durability, and working life.

DS06ATB25H Sprocket Dimensions

]

Sprocket Size: DS06ATB25H
Tooth Count: 25
Bushing Size: 1108
Outside Diameter: 80.00mm
Pitch Diameter: 76.02mm
Minimum Bore: 9mm
Maximum Recommended Bore: 28mm
Sprocket Type: ATB
Dimension (L1): 23.5mm
Dimension (C): 18.17mm
Dimension (E): 64.0mm
Dimension (L2): 22.2mm
Dimension (F): 5.31mm
Sprocket Weight: 0.53 kG

Besides the metric double single sprocket, we also supply 1108 bushings, 06B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
