DS06ATB24H Sprocket
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: DS06ATB24H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
DS06ATB24H Sprocket Description/Features
DS06ATB24H Sprocket Specifications

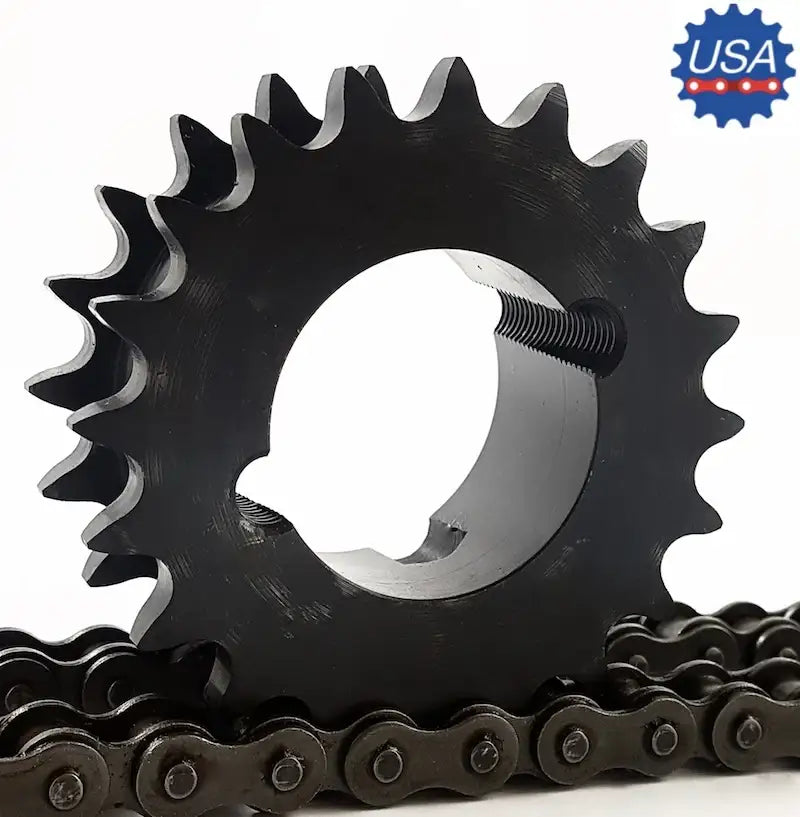

DS06ATB24H Sprocket is a double single taper bushed 24-tooth metric roller chain sprocket made for 06B-1 roller chain. Double single DS06ATB24H sprockets are made to run two single-strands of roller chain parallel to each other and utilizes a 1108 taper bushing. Specifically, this sprocket is manufactured in accordance with ISO, DIN, and British Standards so it directly interchanges with previous sprockets in the application along with other manufacture brands. Utilizing premium grade alloy steel and precision machining our DS06ATB24H sprocket exceeds in performance, durability, and working life.
DS06ATB24H Sprocket Dimensions
- Sprocket Size: DS06ATB24H
- Tooth Count: 24
- Bushing Size: 1108
- Outside Diameter: 77.00mm
- Pitch Diameter: 72.97mm
- Minimum Bore: 9mm
- Maximum Recommended Bore: 28mm
- Sprocket Type: ATB
- Dimension (L1): 23.5mm
- Dimension (C): 18.17mm
- Dimension (E): 61.0mm
- Dimension (L2): 22.2mm
- Dimension (F): 5.31mm
- Sprocket Weight: 0.47 kG
- Sprocket Size: DS06ATB24H
- Tooth Count: 24
- Bushing Size: 1108
- Outside Diameter: 77.00mm
- Pitch Diameter: 72.97mm
- Minimum Bore: 9mm
- Maximum Recommended Bore: 28mm
- Sprocket Type: ATB
- Dimension (L1): 23.5mm
- Dimension (C): 18.17mm
- Dimension (E): 61.0mm
- Dimension (L2): 22.2mm
- Dimension (F): 5.31mm
- Sprocket Weight: 0.47 kG
