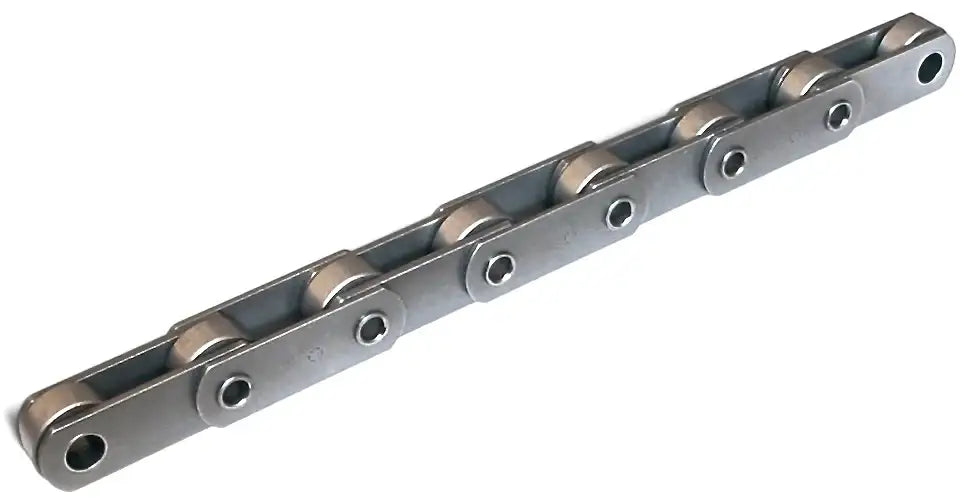

MC56B160 Hollow Pin Chain | MC56B160 Chain

MC56B160 hollow pin chain is manufactured to ISO 1977 and DIN 8167 dimensional standards. The hollow pin design makes it possible to affix attachments through the hollow pin and even assemble cross sectional bars for parallel conveying systems. Our MC56B160 chain is made from high-quality steel alloys and we also supply a heat treated hardened pin type for heavy-duty applications. Hollow pin conveyor chains are found anywhere from lumber applications to pan conveyor applications, we also supply complete pan conveyor assemblies and MC56B160 sprockets. We also recommend using a chain lubricant to extend the working life and to get the optimal performance form your chain. For additional information or to get a quote please contact us and we will be happy to assist you.

MC56B160 Chain Dimensions

• Chain Size: MC56B160
• Pitch (P): 160mm
• Working Load: 56 kN
• Working Load With Heat-Treated Pins: 90 kN
• Roller Style: B
• Roller Outside Diameter: 30mm
• Pin Outside Diameter (D6): 15.5mm
• Hollow Pin Inside Diameter (D7): 10.2mm
• Overall Width (F1): 45mm
• Overall Width (F2): 45.5mm
• Bushing Diameter (D5): 21mm
• Distance Between Sidebars (L): 24mm
• Sidebar Thickness (S): 4mm
• Sidebar Height (H): 35mm
• Weight (less roller): 2.50 kG/ M
