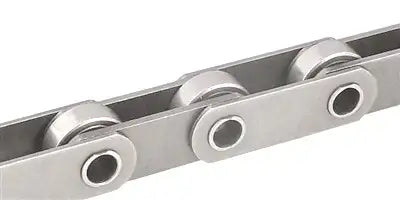

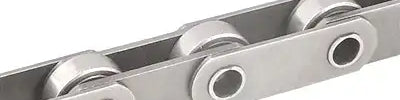

SSC2069 Stainless Steel Hollow Pin Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: SSC2069-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SSC2069 Stainless Steel Hollow Pin Roller Chain Features
SSC2069 Stainless Steel Hollow Pin Roller Chain Specifications
Chain Size: SSC2069 Pitch (P): 38.10 mm Roller Diameter (Dr): 22.22 mm Inside Width (W): 12.57 mm Plate Height (Hi): 18.00 mm Plate Thickness (S): 2.30 mm Pin Outside Diameter (Dp): 8.35 mm Pin Inside Diameter (Df): 6.05 mm Pin Width (A1): 24.00 mm Overall Width (B): 29.60 mm Average Ultimate Strength: 18.65 kN Average Weight: 1.78 Kg/m
Email:
Chain Size: SSC2069 Pitch (P): 38.10 mm Roller Diameter (Dr): 22.22 mm Inside Width (W): 12.57 mm Plate Height (Hi): 18.00 mm Plate Thickness (S): 2.30 mm Pin Outside Diameter (Dp): 8.35 mm Pin Inside Diameter (Df): 6.05 mm Pin Width (A1): 24.00 mm Overall Width (B): 29.60 mm Average Ultimate Strength: 18.65 kN Average Weight: 1.78 Kg/m
