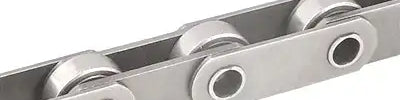

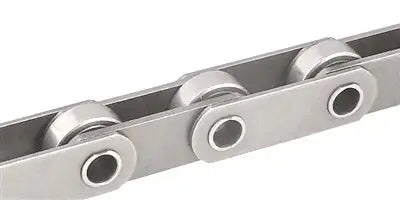

SSC2059D Stainless Steel Hollow Pin Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: SSC2059D-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SSC2059D Stainless Steel Hollow Pin Roller Chain Features
SSC2059D Stainless Steel Hollow Pin Roller Chain Specifications
Chain Size: SSC2059D Pitch (P): 31.75 mm Roller Diameter (Dr): 19.05 mm Inside Width (W): 9.40 mm Plate Height (Hi): 14.85 mm Plate Thickness (S): 2.00 mm Pin Outside Diameter (Dp): 7.03 mm Pin Inside Diameter (Df): 5.13 mm Pin Width (A1): 20.50 mm Overall Width (B): 25.30 mm Average Ultimate Strength: 12.75 kN Average Weight: 0.96 Kg/m
Email:
Chain Size: SSC2059D Pitch (P): 31.75 mm Roller Diameter (Dr): 19.05 mm Inside Width (W): 9.40 mm Plate Height (Hi): 14.85 mm Plate Thickness (S): 2.00 mm Pin Outside Diameter (Dp): 7.03 mm Pin Inside Diameter (Df): 5.13 mm Pin Width (A1): 20.50 mm Overall Width (B): 25.30 mm Average Ultimate Strength: 12.75 kN Average Weight: 0.96 Kg/m
