80-3 Triple Sprockets
Our Triple 80-3 Roller Chain Sprockets are manufactured in accordance with ANSI B29 standards and boast high-precision tolerances for dependable and consistent performance with the 1" pitch chain. We also stock 80-3 roller chain and a wide range of other components such as v-belt pulleys, electric motors, gear reducers, bearings, and more! The below chart shows standard 80-3 chain sprockets but we also supply custom roller chain sprockets and specific bore sprockets. For more information or to get a quote please contact us and we will be happy to assist you!80-3 Triple Sprocket Size Charts

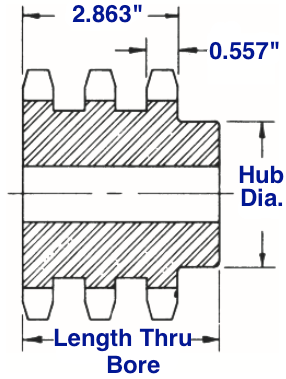

80-3 B-Hub Sprockets
|
|
Tooth Count
|
Outside Diameter
|
Stock Bore
|
Max. Recommended Bore
|
Hub Diameter
|
Length Thru Bore
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|
| 11 | 4.010 | 1" | 1-3/4" | 2-1/2 | 3-5/8 | 5.9 | |
| 12 | 4.330 | 1" | 1-7/8" | 2-27/32 | 3-5/8 | 7.5 | |
| 13 | 4.660 | 1" | 2-1/4" | 3-5/32 | 3-5/8 | 9.2 | |
| E80B14H | 14 | 4.980 | 1" | 2-3/8" | 3-15/32 | 3-5/8 | 11.0 |
| 15 | 5.300 | 1" | 2-1/2" | 3-51/64 | 3-5/8 | 13.1 | |
| 16 | 5.630 | 1" | 2-3/4" | 4 | 3-7/8 | 15.8 | |
| 17 | 5.950 | 1" | 3" | 4-27/64 | 3-7/8 | 18.6 | |
| 18 | 6.270 | 1" | 3-1/4" | 4-47/64 | 3-7/8 | 21.2 | |
| 19 | 6.590 | 1" | 3-5/16" | 5 | 3-7/8 | 23.7 | |
| 20 | 6.910 | 1" | 3-5/16" | 5 | 3-7/8 | 26.0 | |
| 21 | 7.240 | 1" | 3-5/16" | 5 | 3-7/8 | 28.4 | |
| 22 | 7.560 | 1" | 3-5/16" | 5 | 3-7/8 | 31.0 | |
| 23 | 7.880 | 1" | 3-5/16" | 5 | 3-7/8 | 33.6 | |
| 24 | 8.200 | 1" | 3-1/2" | 5-1/4 | 3-7/8 | 37.1 | |
| 25 | 8.520 | 1" | 3-1/2" | 5-1/4 | 3-7/8 | 40.1 | |
| 26 | 8.840 | 1" | 3-1/2" | 5-1/4 | 3-7/8 | 42.9 | |
| 30 | 10.110 | 1-1/4" | 3-3/4" | 5-3/4 | 4-1/4 | 54.5 | |
| 35 | 11.710 | 1-1/4" | 3-3/4" | 5-3/4 | 4-1/4 | 79.5 | |
| 36 | 12.030 | 1-1/4" | 3-3/4" | 5-3/4 | 4-1/4 | 80.9 |
80-3 C-Hub Sprockets
|
|
Tooth Count | Outside Diameter | Stock Bore | Max. Recommended Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| 42 | 13.940 | 1-1/2" | 3-13/16 | 6 | 4-1/2 | 84.9 | |
| E80C45 | 45 | 14.900 | 1-1/2" | 3-13/16 | 6 | 4-1/2 | 92.4 |
| 52 | 17.130 | 1-1/2" | 4-1/4 | 6 | 4-1/2 | 107.0 | |
| 60 | 19.680 | 1-1/2" | 4-1/4 | 6-1/4 | 4-3/4 | 128.0 | |
| 68 | 22.230 | 1-1/2" | 4-1/4 | 6-1/4 | 4-3/4 | 140.0 | |
| 76 | 24.780 | 1-1/2" | 4-1/4 | 6-1/4 | 4-3/4 | 165.0 | |
| 95 | 30.830 | 1-1/2" | 4-1/2 | 6-3/4 | 5 | 240.0 |
80-3 QD Bushed Sprockets
|
Sprocket Size
|
Tooth Count
|
Bushing Type
|
Outside Diameter
|
Pitch Diameter
|
Type
|
Max. Bore
|
(L1)
|
(L2)
|
(C)
|
(Y)
|
(P)
|
(G)
|
(V)
|
(X)
|
(T)
|
(W)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36 | E | 12.030 | 11.474 | B | 3.500" | 3.109" | 3.422" | 6 | 0.25" | 0.484" | 0.125" | 0.625" | 1.625" | 0.557" | 2.863" | 55.1 | |
| 42 | E | 13.940 | 13.382 | B | 3.500" | 3.109" | 3.422" | 6 | 0.25" | 0.484" | 0.125" | 0.625" | 1.625" | 0.557" | 2.863" | 71.9 | |
| 45 | E | 14.900 | 14.336 | B1 | 3.500" | 3.109" | 3.422" | 6 | 0.25" | 0.484" | 0.125" | 0.625" | 1.625" | 0.557" | 2.863" | 65.3 | |
| 52 | E | 17.130 | 16.562 | B1 | 3.500" | 3.109" | 3.422" | 6 | 0.25" | 0.484" | 0.125" | 0.625" | 1.625" | 0.557" | 2.863" | 80.0 | |
| 60 | F | 19.680 | 19.107 | B1 | 3.938" | 3.672" | 4.047" | 6.625" | 0.813" | 0.047" | 0.125" | 0.188" | 2.500" | 0.557" | 2.863" | 100.0 | |
| 68 | F | 22.230 | 21.653 | B1 | 3.938" | 3.672" | 4.047" | 6.625" | 0.813" | 0.047" | 0.125" | 0.188" | 2.500" | 0.557" | 2.863" | 120.0 | |
| 76 | F | 24.780 | 24.198 | B1 | 3.938" | 3.672" | 4.047" | 6.625" | 0.813" | 0.047" | 0.125" | 0.188" | 2.500" | 0.557" | 2.863" | 138.0 | |
| 95 | F | 30.830 | 30.245 | B1 | 3.938" | 3.672" | 4.047" | 6.625" | 0.813" | 0.047" | 0.125" | 0.188" | 2.500" | 0.557" | 2.863" | 196.0 |
80-3 Taper Bushed Sprocket
|
Sprocket Size
|
Tooth Count
|
Bushing Type
|
Outside Diameter
|
Pitch Diameter
|
Type
|
Max. Bore
|
(OL)
|
(L)
|
(C)
|
(H)
|
(P)
|
(T)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 | P2 | 4.660 | 4.179 | 24 | 1.750" | 3.750" | 2.938" | 0.563" | 3" | 0.625" | 0.557" | 5.7 | |
| 14 | Q2 | 4.980 | 4.494 | 27 | 2.625" | 5.781" | 3.500" | 2" | 4.125" | 1.750" | 0.557" | 7.5 | |
| 15 | Q2 | 5.300 | 4.810 | 22 | 2.625" | 4.906" | 3.500" | 1.125" | 4.125" | 1.750" | 0.557" | 8.1 | |
| 16 | Q2 | 5.630 | 5.126 | 25 | 2.625" | 3.875" | 3.500" | 0.094" | 4.125" | 0.750" | 0.557" | 9.3 | |
| 17 | Q2 | 5.950 | 5.442 | 24 | 2.625" | 3.906" | 3.500" | 0.125" | 4.125" | 0.750" | 0.557" | 9.8 | |
| 18 | Q2 | 6.270 | 5.759 | 24 | 2.625" | 3.906" | 3.500" | 0.125" | 4.125" | 0.750" | 0.557" | 12.0 | |
| 19 | Q2 | 6.590 | 6.076 | 24 | 2.625" | 3.906" | 3.500" | 0.125" | 4.125" | 0.750" | 0.557" | 13.9 | |
| 20 | R1 | 6.910 | 6.392 | 24 | 3.750" | 4.031" | 2.875" | 0.875" | 5.375" | 0.875" | 0.557" | 10.2 | |
| 21 | R1 | 7.240 | 6.710 | 24 | 3.750" | 4.031" | 2.875" | 0.875" | 5.375" | 0.875" | 0.557" | 12.4 | |
| 22 | R1 | 7.560 | 7.027 | 24 | 3.750" | 4.031" | 2.875" | 0.875" | 5.375" | 0.875" | 0.557" | 14.6 | |
| 23 | R1 | 7.880 | 7.344 | 25 | 3.750" | 3.156" | 2.875" | 0 | 5.375" | 0 | 0.557" | 15.9 | |
| 24 | R1 | 8.200 | 7.661 | 25 | 3.750" | 3.156" | 2.875" | 0 | 5.375" | 0 | 0.557" | 18.5 | |
| 25 | R1 | 8.520 | 7.979 | 25 | 3.750" | 3.156" | 2.875" | 0 | 5.375" | 0 | 0.557" | 20.3 | |
| 26 | R1 | 8.840 | 8.296 | 25 | 3.750" | 3.156" | 2.875" | 0 | 5.375" | 0 | 0.557" | 23.4 | |
| 27 | R1 | 9.160 | 8.614 | 25 | 3.750" | 3.156" | 2.875" | 0 | 5.375" | 0 | 0.557" | 25.8 | |
| 28 | R1 | 9.480 | 8.931 | 25 | 3.750" | 3.156" | 2.875" | 0 | 5.375" | 0 | 0.557" | 28.1 | |
| 30 | R1 | 10.110 | 9.567 | 25 | 3.750" | 3.156" | 2.875" | 0 | 5.375" | 0 | 0.557" | 33.3 | |
| 36 | S1 | 12.030 | 11.474 | 22 | 4.250" | 5.125" | 4.375" | 0 | 6.375" | 1.500" | 0.557" | 67.0 | |
| 42 | S1 | 13.940 | 13.382 | 22 | 4.250" | 5.125" | 4.375" | 0 | 6.375" | 1.500" | 0.557" | 96.1 | |
| 45 | S1 | 14.900 | 14.336 | 22 | 4.250" | 5.125" | 4.375" | 0 | 6.375" | 1.500" | 0.557" | 112.0 | |
| 52 | U0 | 17.130 | 16.562 | 22 | 2.500" | 5.719" | 5.250" | 0 | 8.375" | 1.781" | 0.557" | 150.0 | |
| 60 | U0 | 19.680 | 19.107 | 22 | 2.500" | 5.719" | 5.250" | 0 | 8.375" | 1.781" | 0.557" | 207.0 | |
| 68 | U0 | 22.230 | 21.653 | 22 | 2.500" | 5.719" | 5.250" | 0 | 8.375" | 1.781" | 0.557" | 271.0 | |
| 76 | U0 | 24.780 | 24.198 | 22 | 2.500" | 5.719" | 5.250" | 0 | 8.375" | 1.781" | 0.557" | 344.0 | |
| 95 | U0 | 30.830 | 30.245 | 25 | 2.500" | 5.859" | 5.250" | 0.031" | 8.375" | 1.406" | 0.557" | 183.0 |
