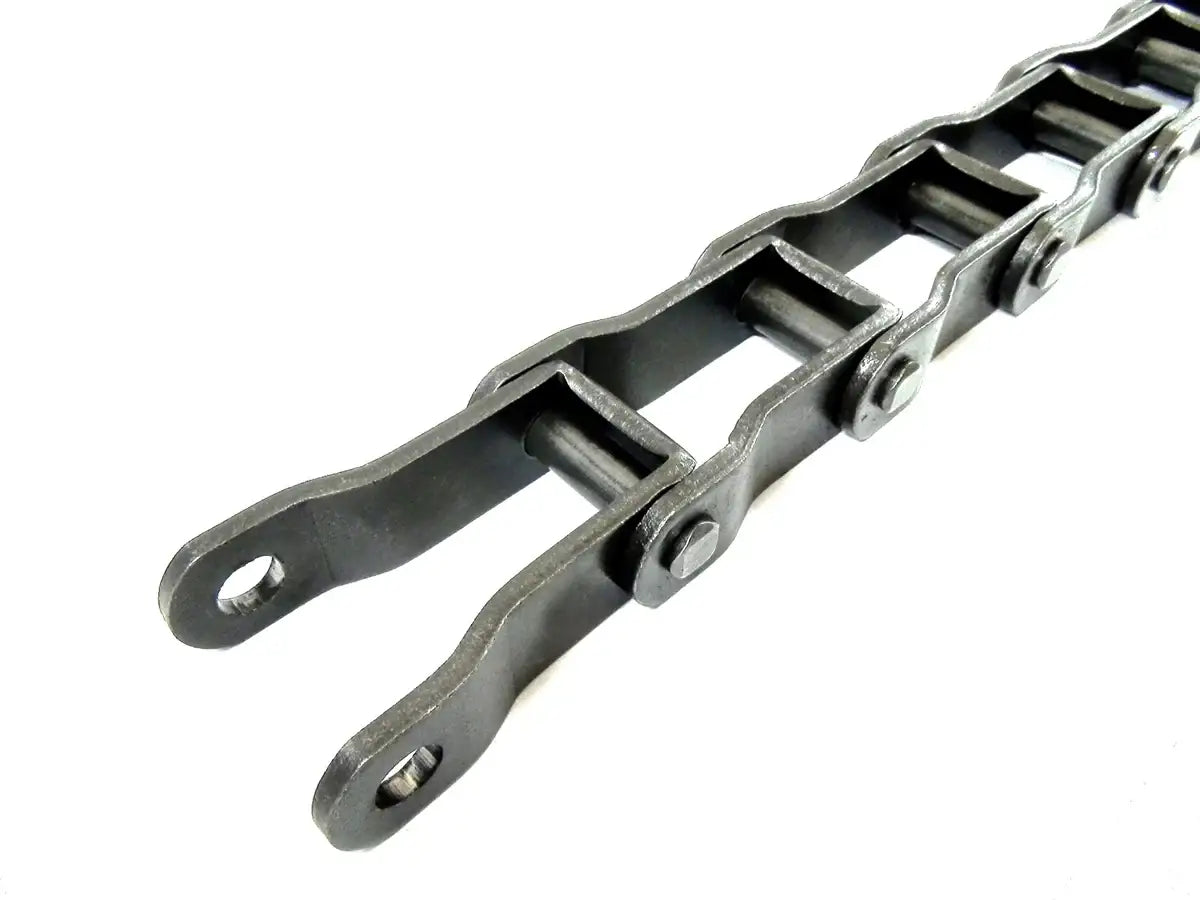

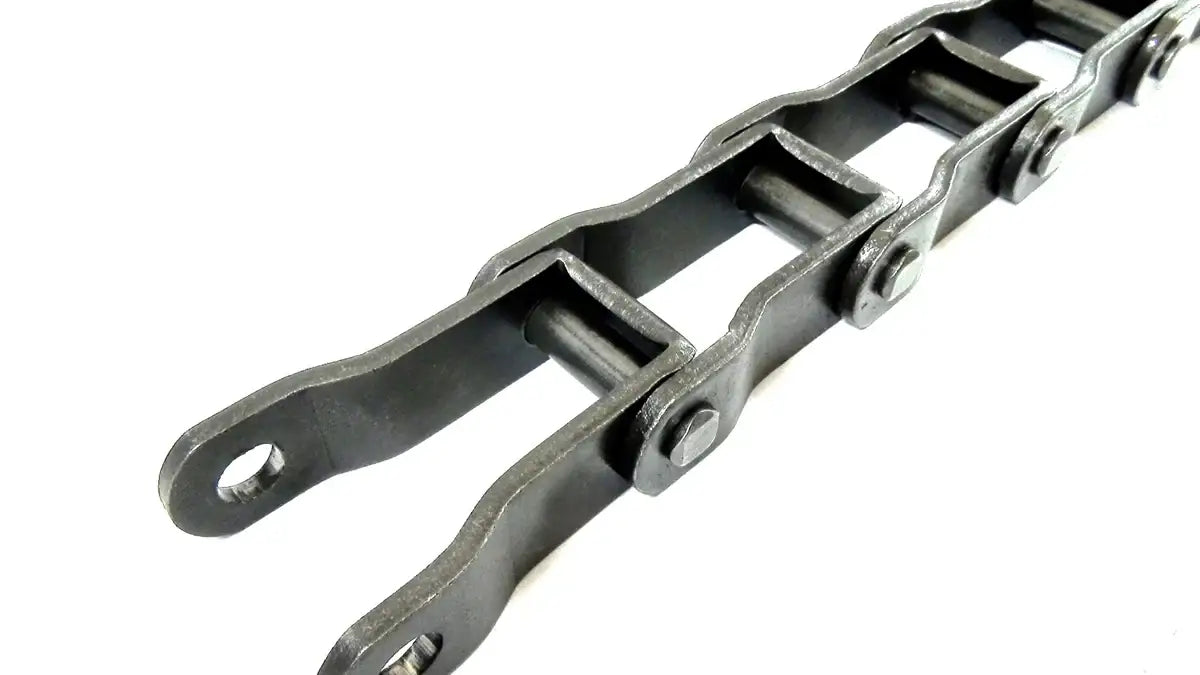

This 88XH pintle chain is extremely durable; fully heat treated, and has a tensile strength of 38,000lbs. Due to the quad staked pins, open barrel design, and overall quality; this chain offers an extended working life and has great overall performance. 88XH pintle chain is commonly supplied as 10ft lengths but alternate lengths are available upon request. Additionally, we offer a full line of high quality 88XH chain sprockets and attachments; as well as additional connecting links and pins. For additional information or if you have any questions please contact us and we will be happy to assist you!
Dimensions:

- Chain Size: 88XH
- Pitch (P): 2.609"
- Ultimate Strength: 38,000lbs
- Side Bar Height (B): 1.138"
- Side Bar Thickness (C): 0.252"
- Rivet Diameter (D): 0.500"
- Overall Width (E): 2.543"
- Maximum Sprocket Thickness (F): 1.000"
- Weight Per 10ft: 33.2lbs


Email:
Feature
- Tensile Strength: 38,000lbs
- Fully Heat Treated
- Quad Staked Pins
- Open Barrel Design To Eliminate Chain Freezing
- We Offer A Full Line of Sprockets & Attachments For This Chain

- Chain Size: 88XH
- Pitch (P): 2.609"
- Ultimate Strength: 38,000lbs
- Side Bar Height (B): 1.138"
- Side Bar Thickness (C): 0.252"
- Rivet Diameter (D): 0.500"
- Overall Width (E): 2.543"
- Maximum Sprocket Thickness (F): 1.000"
- Weight Per 10ft: 33.2lbs
