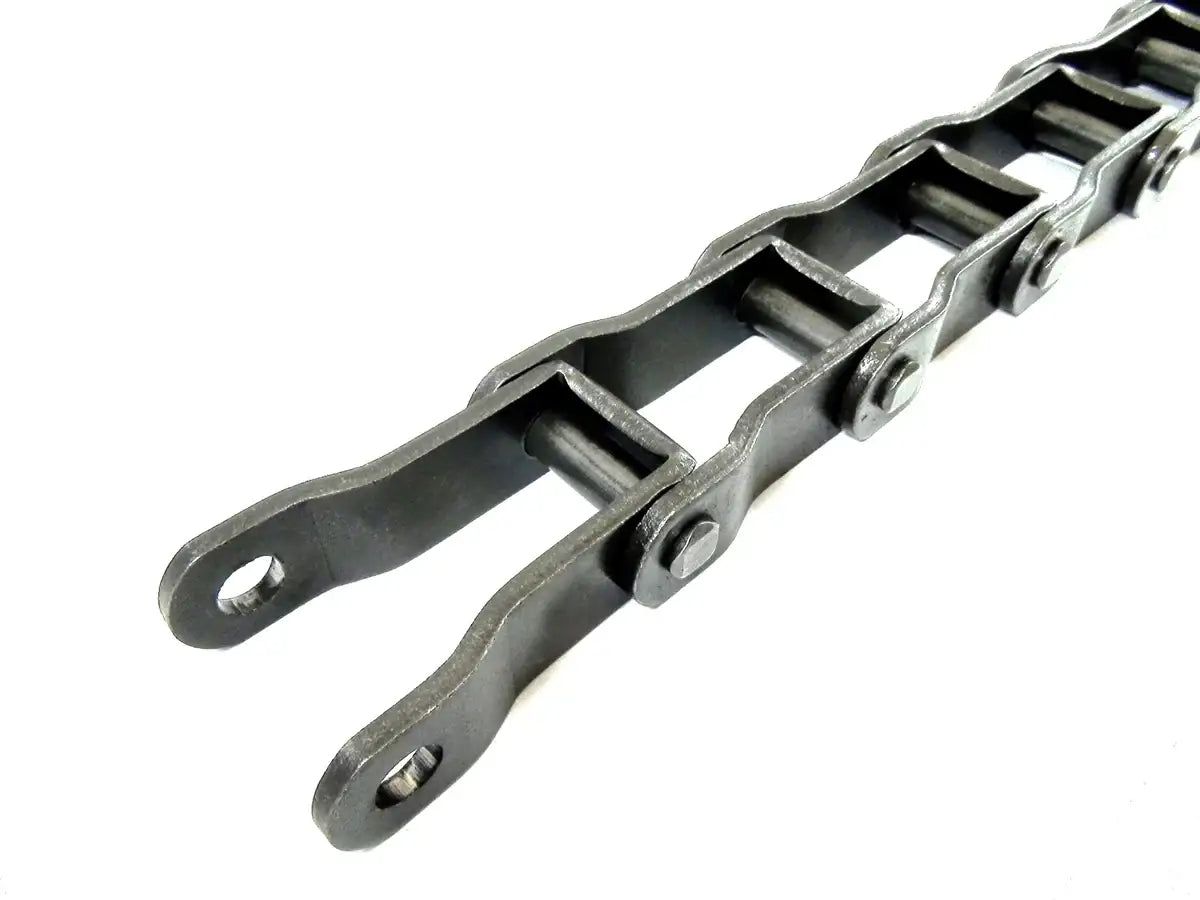

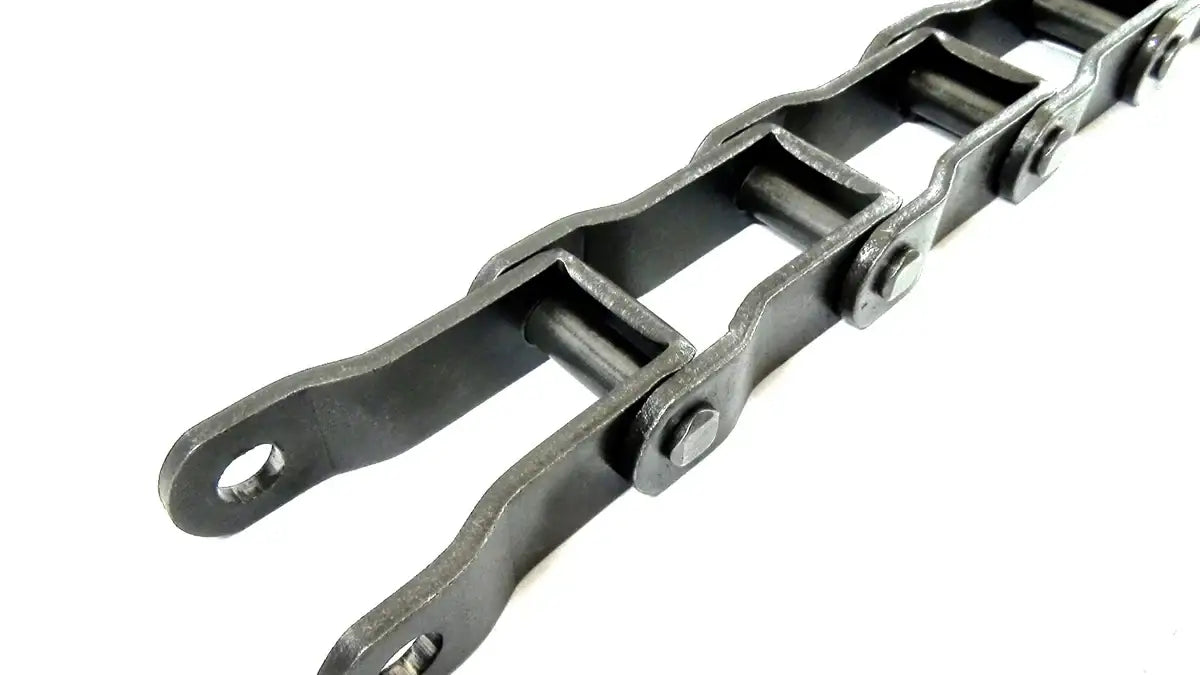

667H Pintle Chain - 10ft Box

This 667H pintle chain is extremely durable. Our 667H steel pintle chains are fully heat treated and have a tensile strength of 14,000 lbs. Due to the quad-staked pins, open barrel design, and overall quality, this chain offers an extended working life and has great overall performance. We offer a 10-ft. 667H pintle chain for sale, but alternate lengths are available upon request. Additionally, we offer a full line of high-quality 667H chain sprockets and attachments, as well as additional connecting links and pins. Buy 667H pintle chains at USA Roller Chain for unbeatable prices and dedication to the customer. For additional information, or if you have any questions, please contact us and we will be happy to assist you!

667H Pintle Chain Dimensions

• Chain Size: 667H
• Pitch (P): 2.313"
• Ultimate Strength: 14,000lbs
• Side Bar Height (B): 0.875"
• Side Bar Thickness (C): 0.125"
• Rivet Diameter (D): 0.312"
• Overall Width (E): 1.906"
• Maximum Sprocket Thickness (F): 0.875"
• Weight Per 10ft: 11.7 lbs
