58 Pintle Chain
Home > By Application > Agricultural Products > 600 Class Pintle Chain > 58 Pintle Chain - 10FT Box

58 Pintle Chain - 10FT Box

SKU: 58-PINTLE-CHAIN
Only 0 left in stockItem is out of stock Item is unavailable
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51714675474799" , "metafield_value":""}]
58 Pintle Chain - 10FT Box Features
58 Pintle Chain - 10FT Box Specifications

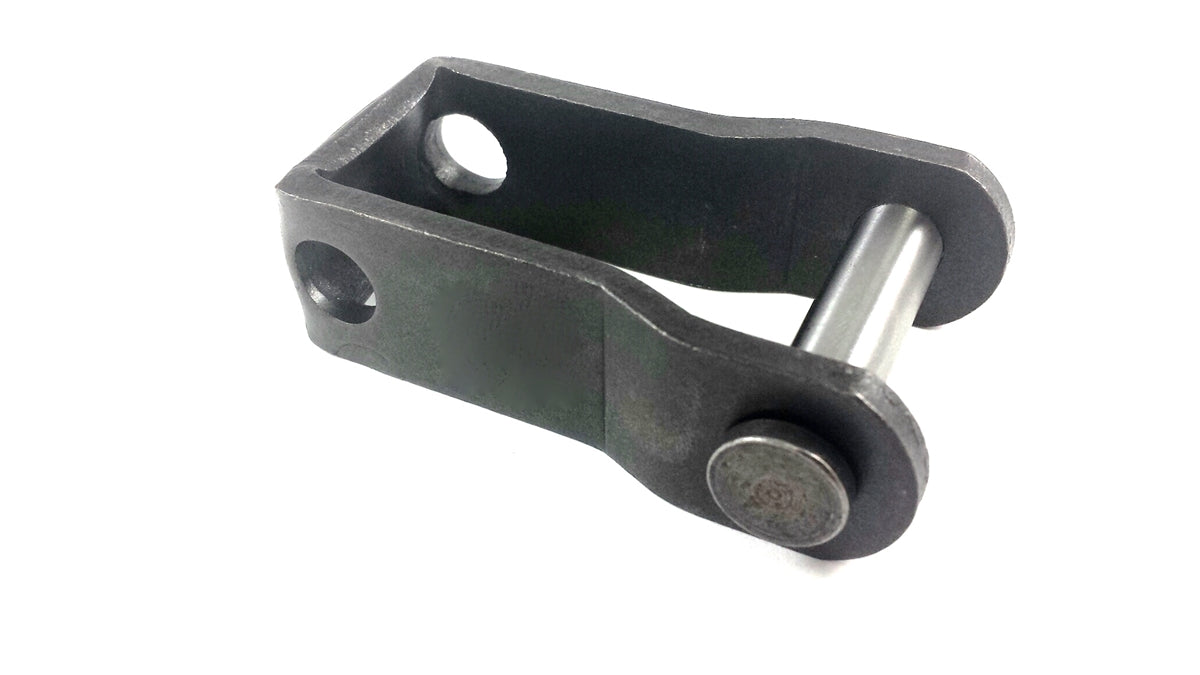

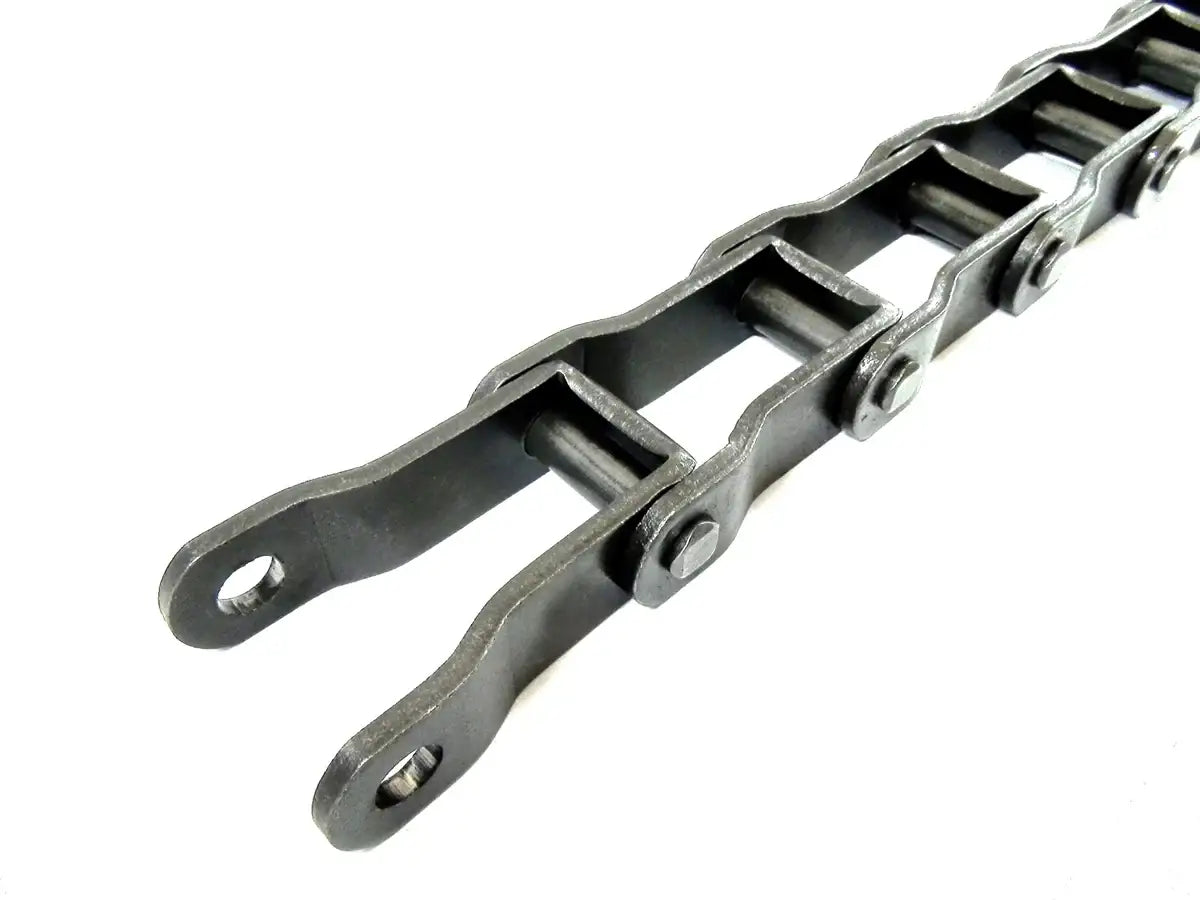

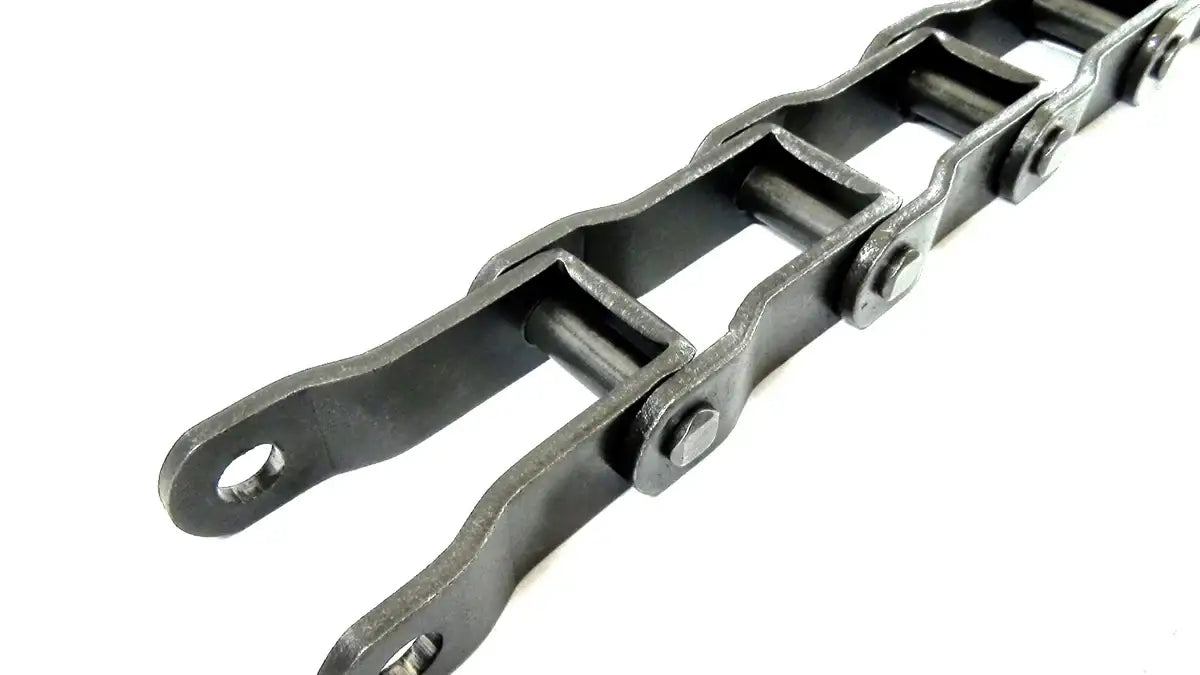

This 58 pintle chain is extremely durable; fully heat treated, and has a high tensile strength. Due to the quad staked pins, open barrel design, and overall quality; this chain offers an extended working life and has great overall performance. 58 pintle chain is commonly supplied as 10ft lengths but alternate lengths are available upon request. Additionally, we offer a full line of high quality 58 chain sprockets and attachments; as well as additional connecting links and pins. For additional information or if you have any questions please contact us and we will be happy to assist you!

58 Pintle Chain Dimensions


58 Pintle Chain - 10FT Box
  • Chain Size: 58
  • Pitch (P): 4.000"
  • Ultimate Strength: 50,000lbs
  • Side Bar Height (B): 1.500"
  • Side Bar Thickness (C): 0.310"
  • Rivet Diameter (D): 0.625"
  • Overall Width (E): 3.359"
  • Maximum Sprocket Thickness (F): 2.031
  • Weight Per 10ft: 55 lbs
  • Chain Size: 58
  • Pitch (P): 4.000"
  • Ultimate Strength: 50,000lbs
  • Side Bar Height (B): 1.500"
  • Side Bar Thickness (C): 0.310"
  • Rivet Diameter (D): 0.625"
  • Overall Width (E): 3.359"
  • Maximum Sprocket Thickness (F): 2.031
  • Weight Per 10ft: 55 lbs
