#60-2 Double Strand Roller Chain Sprockets
60-2 B-Hub Sprockets

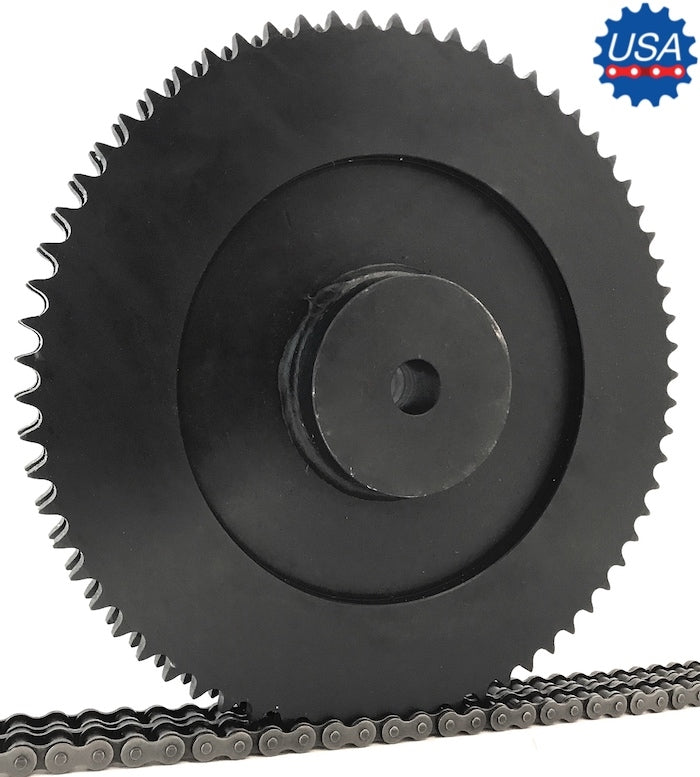

| Sprocket | Tooth Count | Outside Diameter | Type | Stock Bore | Recommended Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| D60B11H | 11 | 3.000 | B | 1 | 1 1/4 | 1 13/16 | 2 1/8 | 1.62 |
| D60B12H | 12 | 3.250 | B | 1 | 1 7/16 | 2 1/8 | 2 1/8 | 2.20 |
| D60B13H | 13 | 3.490 | B | 1 | 1 1/2 | 2 1/4 | 2 1/8 | 2.60 |
| D60B14H | 14 | 3.740 | B | 1 | 1 3/4 | 2 1/2 | 2 1/8 | 3.24 |
| D60B15H | 15 | 3.980 | B | 1 | 1 7/8 | 2 13/16 | 2 1/8 | 3.96 |
| D60B16H | 16 | 4.220 | B | 1 | 2 | 3 | 2 1/8 | 4.62 |
| D60B17H | 17 | 4.460 | B | 1 | 2 1/4 | 3 1/4 | 2 1/8 | 5.40 |
| D60B18H | 18 | 4.700 | B | 1 | 2 3/8 | 3 1/2 | 2 1/8 | 6.24 |
| D60B19H | 19 | 4.950 | B | 1 | 2 1/2 | 3 11/16 | 2 1/8 | 7.00 |
| D60B20H | 20 | 5.190 | B | 1 | 2 1/2 | 3 3/4 | 2 1/8 | 7.72 |
| D60B21H | 21 | 5.430 | B | 1 | 2 3/4 | 4 1/8 | 2 1/8 | 8.82 |
| D60B22H | 22 | 5.670 | B | 1 | 2 3/4 | 4 1/4 | 2 1/8 | 9.68 |
| D60B23H | 23 | 5.910 | B | 1 | 2 3/4 | 4 1/4 | 2 1/8 | 10.30 |
| D60B24H | 24 | 6.150 | B | 1 | 2 3/4 | 4 1/4 | 2 1/8 | 11.14 |
| D60B25H | 25 | 6.390 | B | 1 | 2 3/4 | 4 1/4 | 2 1/8 | 11.96 |
| D60B26 | 26 | 6.630 | B | 1 | 2 3/4 | 4 1/4 | 2 1/8 | 12.70 |
| D60B30 | 30 | 7.590 | B | 1 | 2 3/4 | 4 1/4 | 2 1/8 | 16.36 |
| D60B32 | 32 | 8.070 | B | 1 1/4 | 3 | 4 1/2 | 2 3/8 | 19.52 |
| D60B35 | 35 | 8.780 | B | 1 1/4 | 3 | 4 1/2 | 2 3/8 | 22.80 |
| D60B36 | 36 | 9.020 | B | 1 1/4 | 3 | 4 1/2 | 2 3/8 | 23.82 |
| D60B40 | 40 | 9.980 | B | 1 1/4 | 3 1/4 | 4 3/4 | 2 3/4 | 30.84 |
| D60B42 | 42 | 10.460 | B | 1 1/4 | 3 1/4 | 4 3/4 | 2 3/4 | 33.08 |
| D60B45 | 45 | 11.180 | B | 1 1/4 | 3 1/4 | 4 3/4 | 2 3/4 | 37.08 |
| D60B52 | 52 | 12.850 | B | 1 1/4 | 3 1/4 | 4 3/4 | 2 3/4 | 48.70 |
| D60B60 | 60 | 14.760 | B | 1 1/4 | 3 1/4 | 4 3/4 | 2 3/4 | 63.10 |
| Sprocket | Tooth Count | Outside Diameter | Type | Stock Bore | Recommended Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| D60C60 | 68 | 14.760 | C |
1 1/4
|

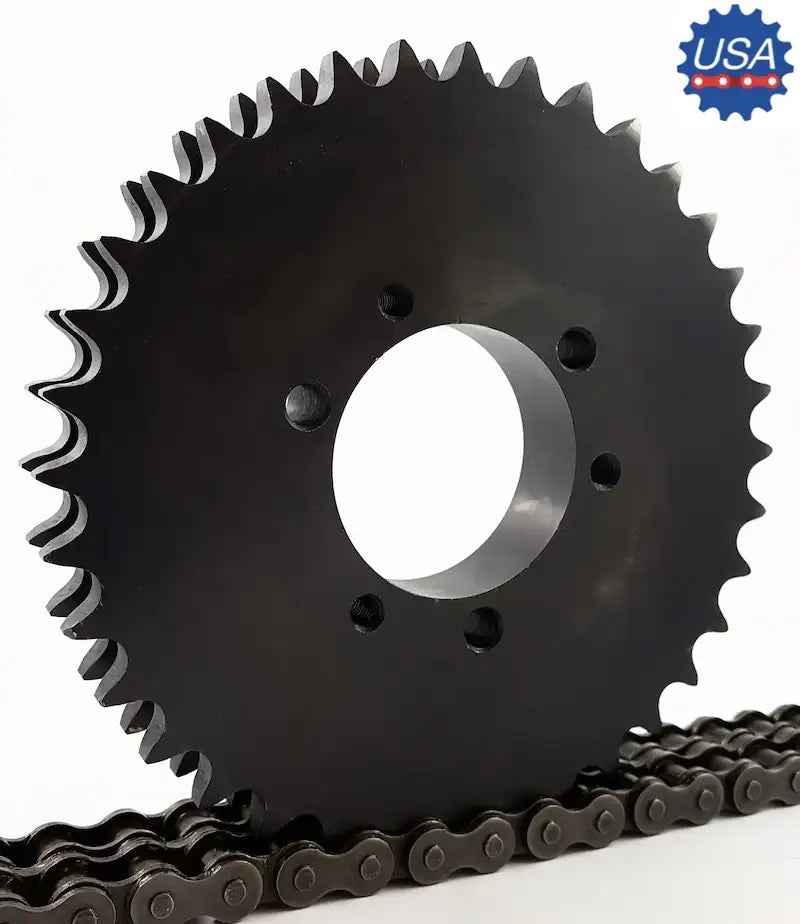

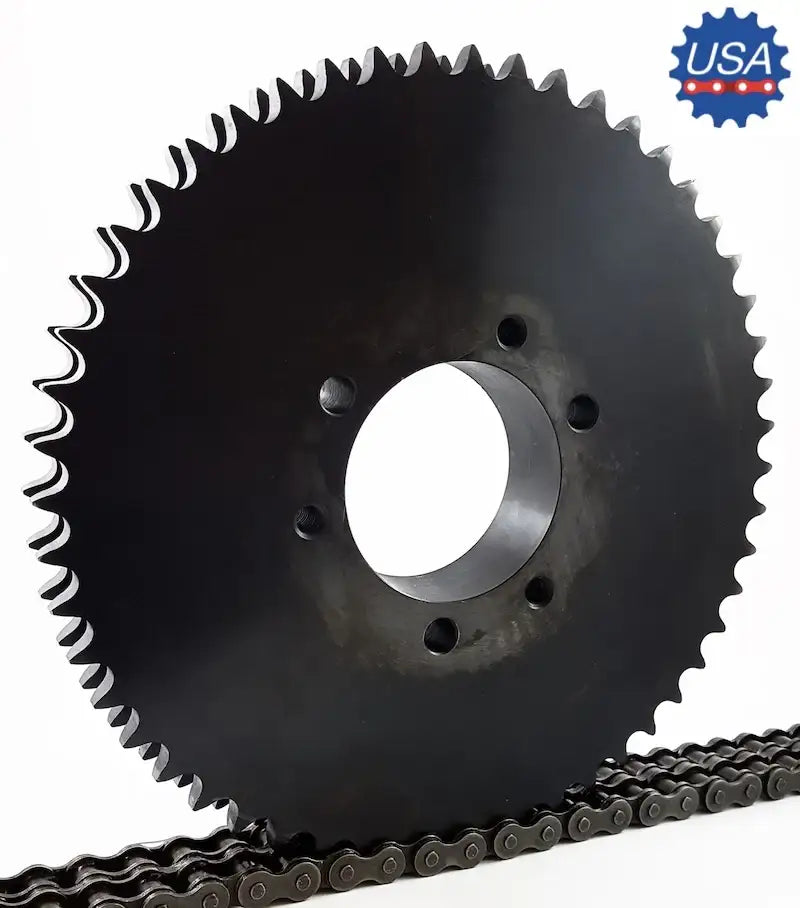

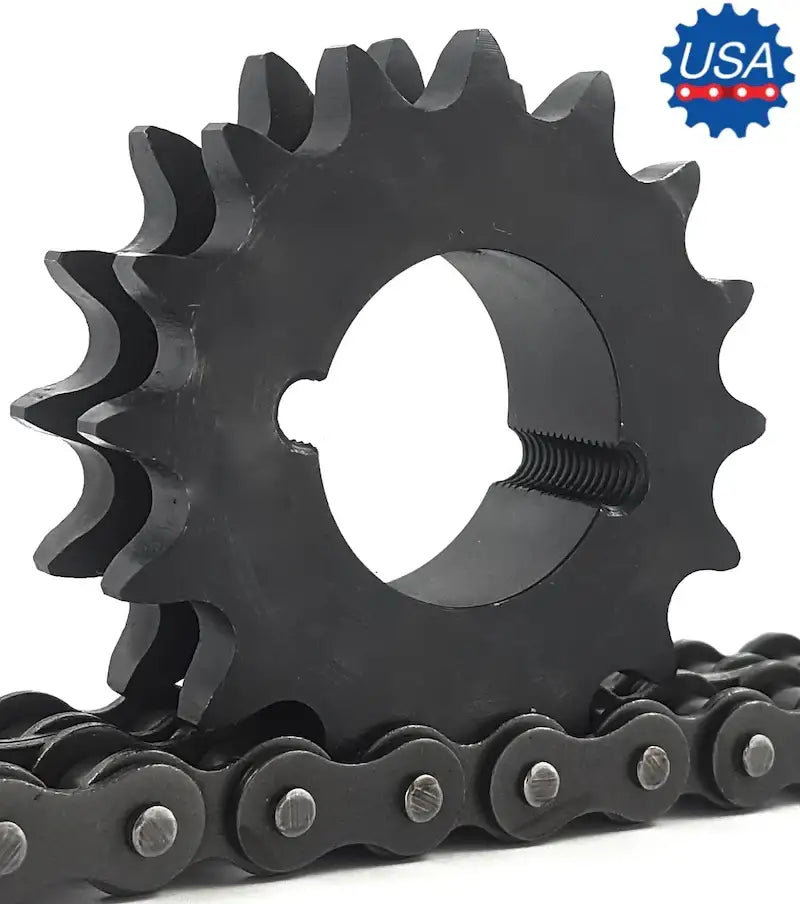

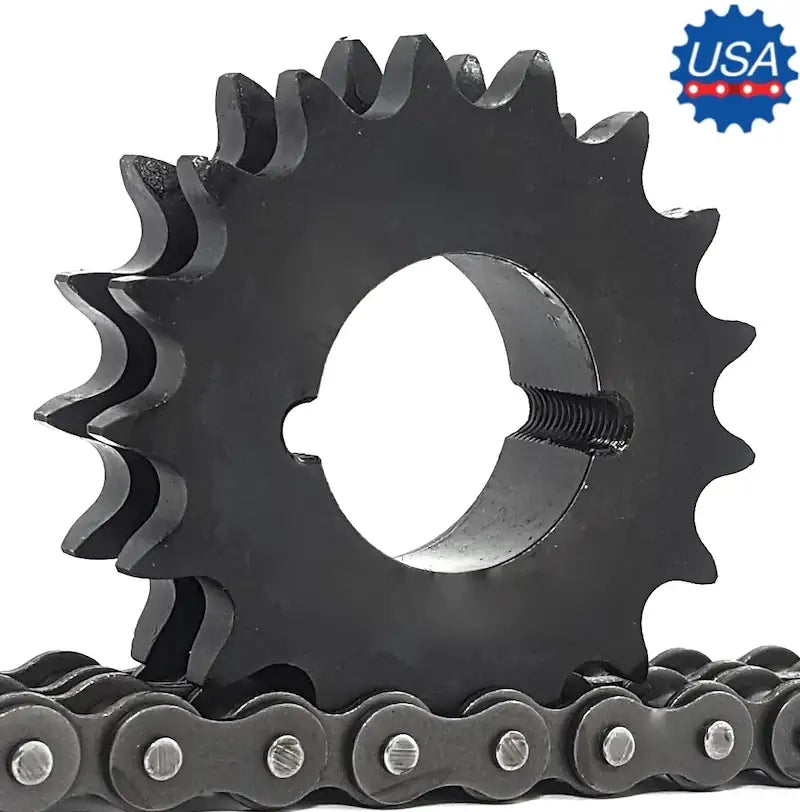

3 5/16 | 5 | 3 | 53.68 |
| D60C72 | 72 | 17.630 | C | 1 1/4 | 3 5/16 | 5 | 3 | 53.74 |
| D60C76 | 76 | 18.580 | C | 1 1/4 | 3 5/16 | 5 | 3 | 60.28 |
| D60C95 | 95 | 23.120 | C | 1 1/4 | 3 3/4 | 5 1/2 | 3 1/2 | 87.14 |
| Sprocket Size | Tooth Count | Bushing Type | Outside Diameter | Pitch Diameter | Sprocket Type | Max. Bushing Bore | Dimension (L1) | Dimension (L2) | Dimension (C) | Dimension (Y) | Dimension (P) | Dimension (G) | Dimension (X) | Dimension (T) | Dimension (W) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D60SH14H | 14 | SH | 3.740 | 3.371 | - | 1 5/8 | 1 31/32 | 1 31/32 | 2 11/16 | 1/2 | - | - | - | 0.444 | 1.341 | 2.50 |
| D60SDS22H | 22 | SDS | 5.670 | 5.270 | - | 2 | 1 17/32 | 1 15/32 | 3 3/16 | - | - | - | 3/4 | 0.444 | 1.341 | 5.44 |
| D60SF36 | 36 | SF | 9.020 | 8.605 | C1 | 2 15/16 | 2 | 2 1/4 | 4 5/8 | 3/4 | - | - | 1 1/4 | 0.444 | 1.341 | 19.26 |
| D60E42 | 42 | E | 10.460 | 10.036 | C2 | 3 1/2 | 2 5/8 | 2 15/16 | 6 | 7/8 | 13/32 | 9/32 | 1 5/8 | 0.444 | 1.341 | 34.04 |
| D60E45 | 45 | E | 11.180 | 10.752 | C2 | 3 1/2 | 2 5/8 | 2 15/16 | 6 | 7/8 | 13/32 | 9/32 | 1 5/8 | 0.444 | 1.341 | 38.26 |
| D60E52 | 52 | E | 10.460 | 10.036 | C2 | 3 1/2 | 2 5/8 | 2 15/16 | 6 | 7/8 | 13/32 | 9/32 | 1 5/8 | 0.444 | 1.341 | 49.52 |
| D60E60 | 60 | E | 14.760 | 14.331 | C2 | 3 1/2 | 2 5/8 | 2 15/16 | 6 | 7/8 | 13/32 | 9/32 | 1 5/8 | 0.444 | 1.341 | 63.39 |
| D60E68 | 68 | E | 16.670 | 16.240 | C4 | 3 1/2 | 2 5/8 | 2 15/16 | 6 | 7/8 | 13/32 | 9/32 | 1 5/8 | 0.444 | 1.341 | 54.32 |
| D60E76 | 76 | E | 18.580 | 18.149 | C4 | 3 1/2 | 2 5/8 | 2 15/16 | 6 | 7/8 | 13/32 | 9/32 | 1 5/8 | 0.444 | 1.341 | 61.48 |
| D60E95 | 95 | E | 23.120 | 22.683 | C4 | 3 1/2 | 2 5/8 | 2 15/16 | 6 | 7/8 | 13/32 | 9/32 | 1 5/8 | 0.444 | 1.341 | 82.96 |
| Sprocket Size | Tooth Count | Bushing Type | Outside Diameter | Pitch Diameter | Maximum Bore | Dimension (L) | Dimension (C) | Type | Sprocket Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| D60BTB13H | 13 | 1215 | 3.493 | 3.134 | 1 1/4 | 1 1/2 | 2 1/4 | B | 2.8 |
| D60BTB14H | 14 | 1215 | 3.736 | 3.371 | 1 1/4 | 1 1/2 | 2 1/2 | B | 3.3 |
| D60BTB15H | 15 | 1615 | 3.979 | 3.607 | 1 5/8 | 1 1/2 | 2 13/16 | B | 3.1 |
| D60BTB16H | 16 | 1615 | 4.221 | 3.844 | 1 5/8 | 1 1/2 | 3 | B | 4.5 |
| D60BTB17H | 17 | 1615 | 4.462 | 4.082 | 1 5/8 | 1 1/2 | 3 1/4 | B | 5.3 |
| D60BTB18H | 18 | 2012 | 4.704 | 4.319 | 2 | 1 1/4 | - | A | 5.4 |
| D60BTB19H | 19 | 2012 | 4.945 | 4.557 | 2 | 1 1/4 | - | A | 6.4 |
| D60BTB20H | 20 | 2517 | 5.185 | 4.749 | 2 1/2 | 1 3/4 | 3 61/64 | B | 6.9 |
| D60BTB21H | 21 | 2517 | 5.426 | 5.032 | 2 1/2 | 1 3/4 | 4 3/16 | B | 8.8 |
| D60BTB25H | 25 | 2517 | 6.387 | 4.984 | 2 1/2 | 1 3/4 | 6 11/32 | B | 14.9 |

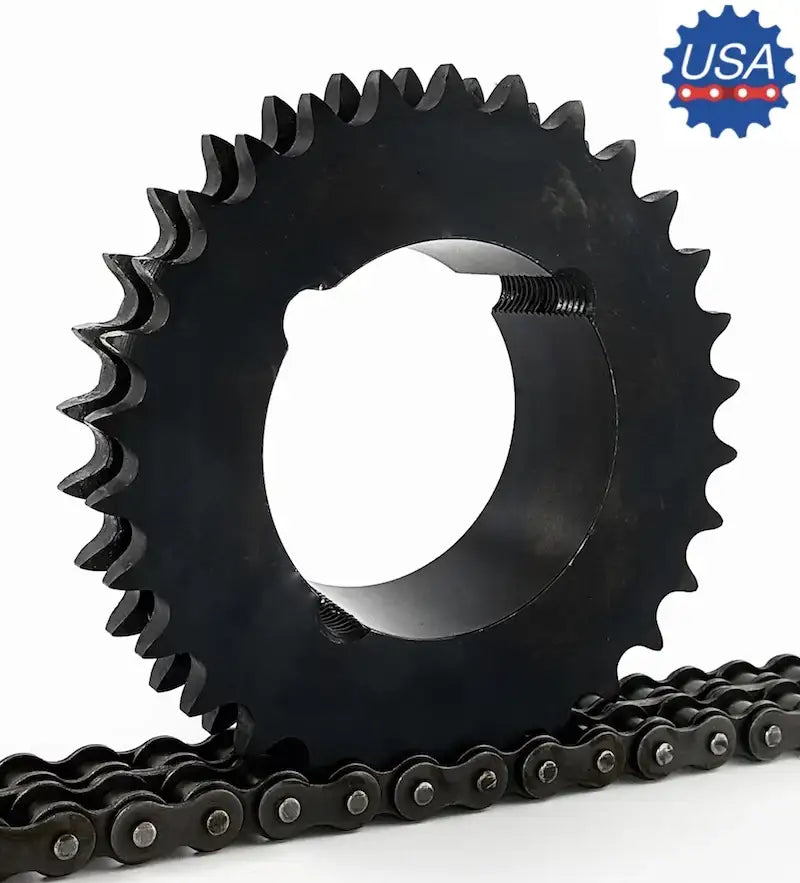

| D60BTB30 | 30 | 2517 | 7.586 | 7.175 | 2 1/2 | 1 3/4 | 6 11/32 | B | 26.8 |

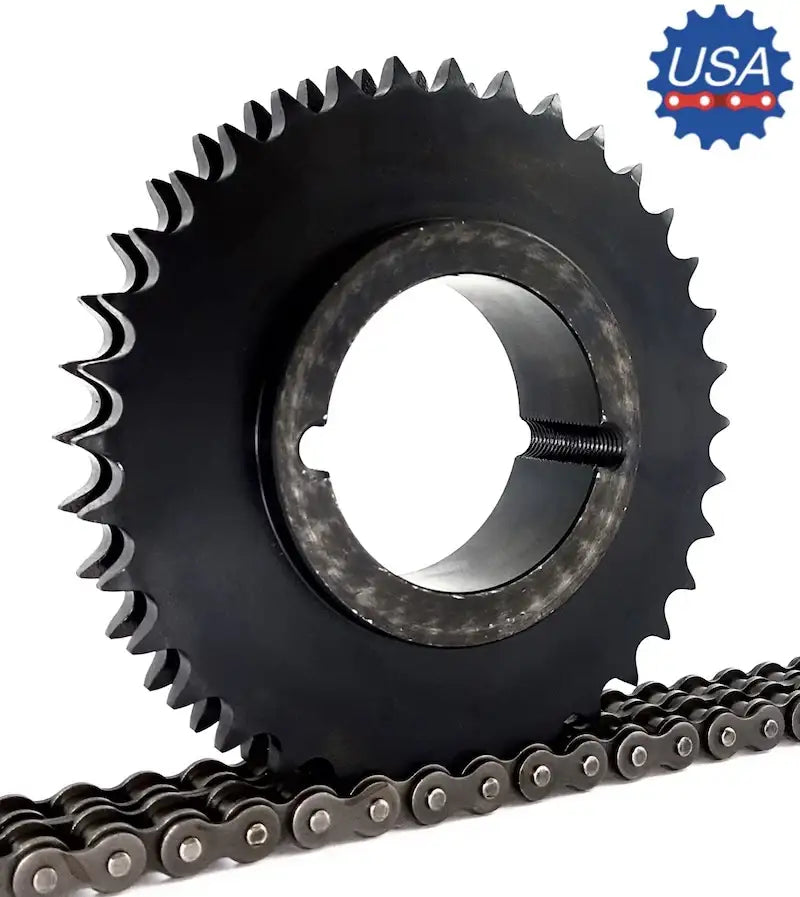

| D60CTB36 | 36 | 2517 | 9.022 | 8.605 | 2 1/2 | 1 3/4 | 4 1/4 | C 1 |
34.9
|

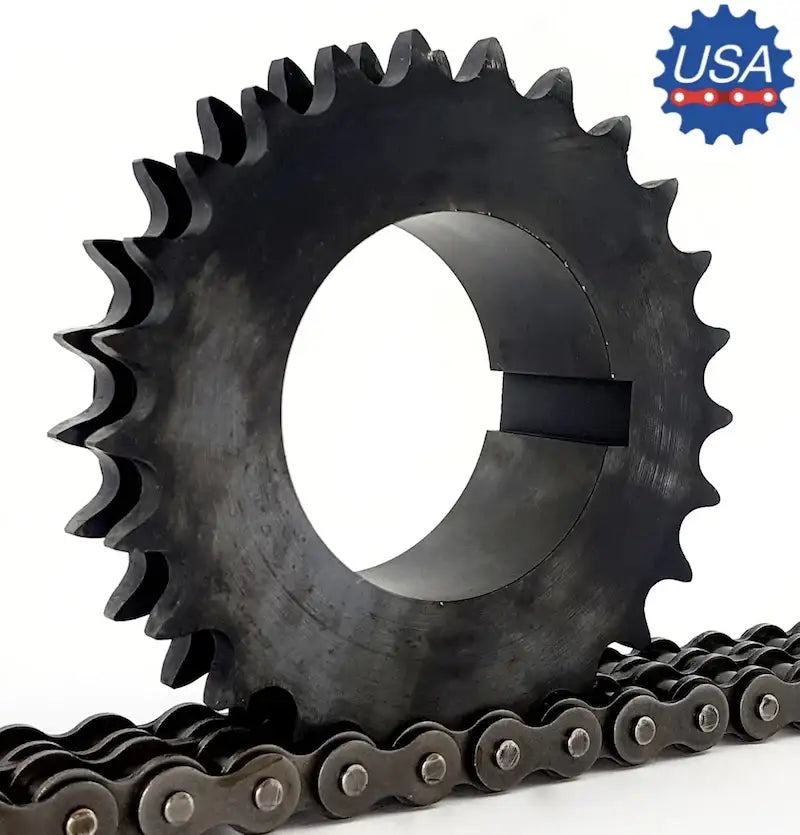

| D60CTB42 | 42 | 2517 | 10.458 | 10.036 | 2 1/2 | 1 3/4 | 4 1/4 | C 1 | 50.5 |
| D60CTB45 | 45 | 2517 | 11.176 | 10.752 | 2 1/2 | 1 3/4 | 4 1/4 | C 1 | 58.8 |
| D60CTB52 | 52 | 2517 | 12.849 | 12.422 | 2 1/2 | 1 3/4 | 4 1/4 | C 1 | 81.3 |
| D60CTB60 | 60 | 2517 | 14.761 | 14.330 | 2 1/2 | 1 3/4 | 4 1/4 | C | 66 |
| D60CTB68 | 68 | 2517 | 16.672 | 16.240 | 2 1/2 | 1 3/4 | 4 1/2 | C | 79.7 |
| D60CTB76 | 76 | 3020 | 18.583 | 18.149 | 3 | 2 | 5 1/4 | C | 90.3 |
| Sprocket Size | Tooth Count | Bushing Type | Outside Diameter | Pitch Diameter | Sprocket Type | Max. Bushing Bore | Dimension (OL) | Dimension (L) | Dimension (C) | Dimension (H) | Dimension (P) | Dimension (T) | Sprocket Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D60P13H | 13 | P1 | 3.490 | 3.134 | 16 | 1-3/4 | 3-13/16 | 1-15/16 | 1-5/8 | 3 | 1-13/32 | 0.444 | 2.5 |
| D60P14H | 14 | P1 | 3.740 | 3.371 | 12 | 1-3/4 | 3 | 1-15/16 | 13/16 | 3 | 1-13/32 | 0.444 | 2.3 |
| D60P15H | 15 | P1 | 3.980 | 3.607 | 12 | 1-3/4 | 3 | 1-15/16 | 13/16 | 3 | 1-13/32 | 0.444 | 2.7 |
| D60P16H | 16 | P1 | 4.220 | 3.844 | 13 | 1-3/4 | 2-7/32 | 1-15/16 | 1/32 | 3 | 5/8 | 0.444 | 2.4 |
| D60P17H | 17 | P1 | 4.460 | 4.082 | 13 | 1-3/4 | 2-7/32 | 1-15/16 | 1/32 | 3 | 5/8 | 0.444 | 2.8 |
| D60P18H | 18 | P1 | 4.700 | 4.319 | 13 | 1-3/4 | 2-7/32 | 1-15/16 | 1/32 | 3 | 5/8 | 0.444 | 3.4 |
| D60P19H | 19 | P1 | 4.950 | 4.557 | 13 | 1-3/4 | 2-7/32 | 1-15/16 | 1/32 | 3 | 5/8 | 0.444 | 4.0 |
| D60P20H | 20 | P1 | 5.190 | 4.794 | 13 | 1-3/4 | 2-7/32 | 1-15/16 | 1/32 | 3 | 5/8 | 0.444 | 4.7 |
| D60Q21H | 21 | Q1 | 5.430 | 5.032 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 4.8 |
| D60Q22H | 22 | Q1 | 5.670 | 5.270 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 5.6 |
| D60Q23H | 23 | Q1 | 5.910 | 5.508 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 6.3 |
| D60Q24H | 24 | Q1 | 6.150 | 5.746 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 7.0 |
| D60Q25H | 25 | Q1 | 6.390 | 5.984 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 7.9 |
| D60Q26H | 26 | Q1 | 6.630 | 6.222 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 8.8 |
| D60Q27H | 27 | Q1 | 6.870 | 6.460 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 9.6 |
| D60Q28H | 28 | Q1 | 7.110 | 6.699 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 10.5 |
| D60Q30H | 30 | Q1 | 7.590 | 7.175 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 12.3 |
| D60Q32H | 32 | Q1 | 8.070 | 7.652 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 14.3 |
| D60Q35H | 35 | Q1 | 8.780 | 8.367 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 17.7 |
| D60Q36H | 36 | Q1 | 9.020 | 8.605 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 18.4 |
| D60Q40H | 40 | Q1 | 9.980 | 9.559 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 23.9 |

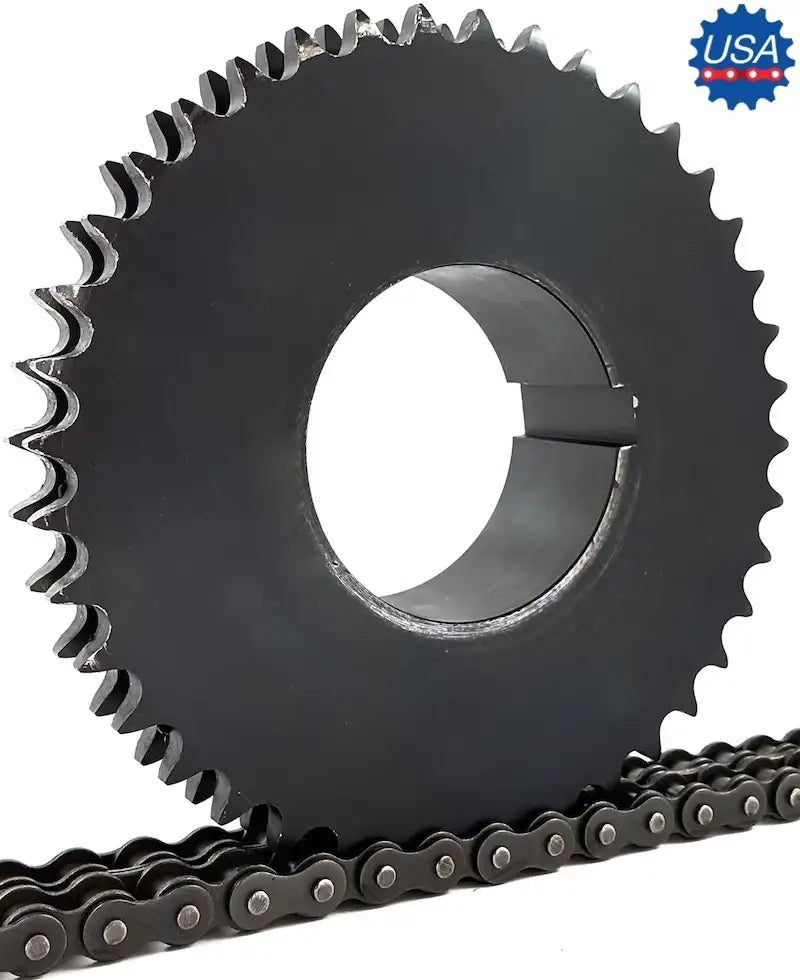

| D60Q42 | 42 | Q1 | 10.460 | 10.036 | 12 | 2-11/16 | 2-25/32 | 2-1/2 | 0 | 4-1/8 | 1-5/32 | 0.444 | 26.3 |
| D60R42 | 42 | R1 | 10.460 | 10.036 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 25.7 |

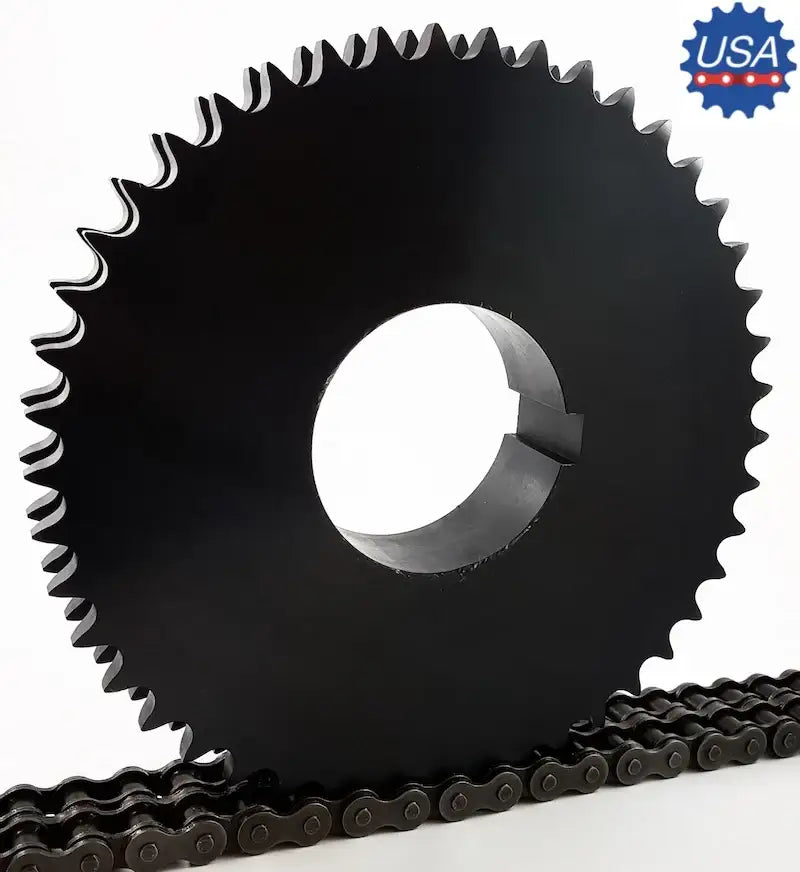

| D60R45 | 45 | R1 | 11.180 | 10.752 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 30.2 |
| D60R48 | 48 | R1 | 11.890 | 11.467 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 35.1 |
| D60R52 | 52 | R1 | 12.850 | 12.422 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 41.8 |
| D60R54 | 54 | R1 | 13.330 | 12.899 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 45.1 |
| D60R60 | 60 | R1 | 14.760 | 14.331 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 54.8 |
| D60R68 | 68 | R1 | 16.670 | 16.240 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 73.8 |
| D60R72 | 72 | R1 | 17.630 | 17.194 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 81.8 |
| D60R76 | 76 | R1 | 18.580 | 18.149 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 93.0 |
| D60R84 | 84 | R1 | 20.490 | 20.058 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 111.0 |
| D60R95 | 95 | R1 | 23.120 | 22.683 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 148.0 |

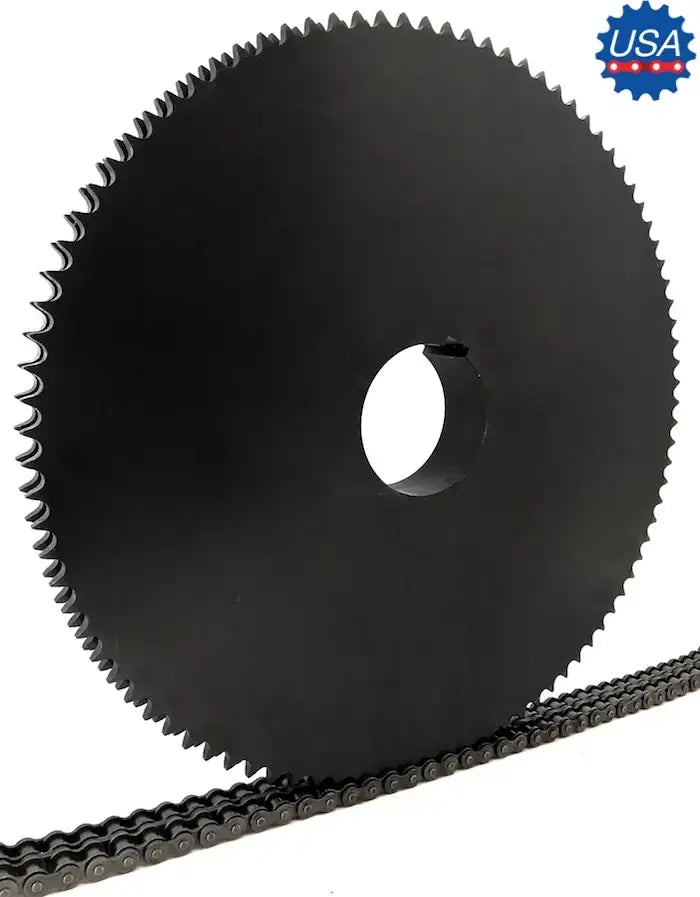

| D60R96 | 96 | R1 | 23.360 | 22.922 | 12 | 3-3/4 | 3-5/32 | 2-7/8 | 0 | 5-3/8 | 1-17/32 | 0.444 | 155.0 |
