D60E52 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$512.99
SKU: D60E52-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715074097519" , "metafield_value":""}]
D60E52 Sprocket (QD Type) Features
D60E52 Sprocket (QD Type) Specifications

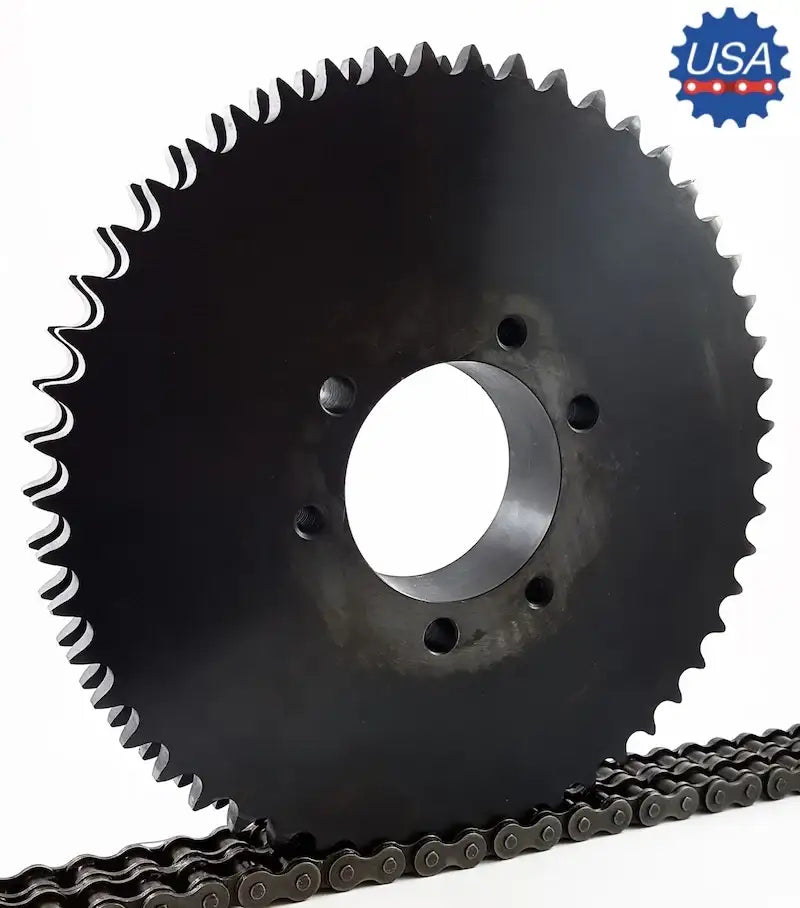

This D60E52 sprocket is a high-quality, precision, and durable QD type sprocket that has 52 teeth. D60E52 sprockets use an E-Type QD Bushing and are a solid construction sprocket. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Along with the D60E52 sprocket, we offer a full line of premium E-Type QD bushings right off the shelf and at great pricing. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:
D60E52 Sprocket (QD Type)
  • Sprocket Size: D60E52
  • Tooth Count: 52
  • Bushing Size: E
  • Outside Diameter: 12.850"
  • Pitch Diameter: 12.442"
  • Sprocket Type: C2
  • Dimension (L1): 2-5/8"
  • Dimension (L2): 2-15/16"
  • Dimension (C): 6"
  • Dimension (Y): 7/8"
  • Dimension (P): 13/32"
  • Dimension (G): 9/32"
  • Dimension (X): 1-5/8"
  • Dimension (T): 0.444"
  • Dimension (W): 1.341"
  • Sprocket Weight: 39.52 LBS
  • Bushing Weight: 10.0 LBS
