D60BTB16H Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
$60.99
SKU: D60BTB16H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D60BTB16H Sprocket (Taper Bushed) Features
D60BTB16H Sprocket (Taper Bushed) Specifications

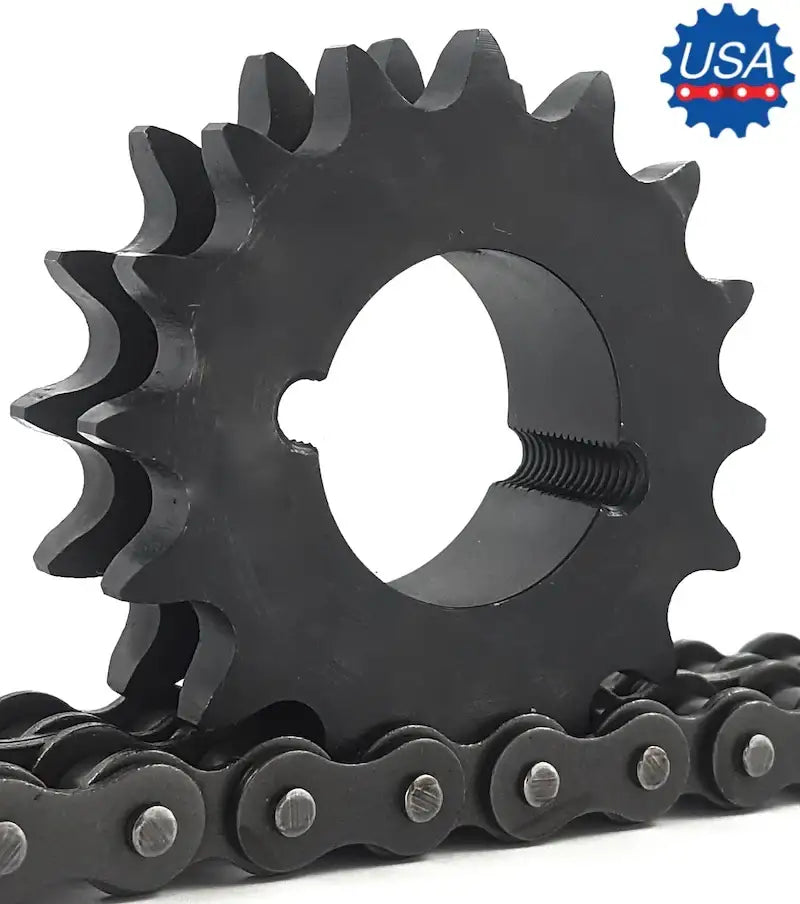

This D60BTB16H sprocket is a durable, high quality, and precision double sprocket with 16 hardened teeth that is manufactured to accept a 1615 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D60BTB16H sprockets are made to accept a 1615 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Dimensions:
- Sprocket Size: D60BTB16H
- Tooth Count: 16
- Bushing Size: 1615
- Outside Diameter: 4.221"
- Pitch Diameter: 3.844"
- Dimension (L): 1-1/2"
- Dimension (C): 3"
- Sprocket Type: B
- Sprocket Weight: 2.2 LBS
- Bushing Weight: 1.0 LBS
Phone: (407) 347-3519
Email:
- Sprocket Size: D60BTB16H
- Tooth Count: 16
- Bushing Size: 1615
- Outside Diameter: 4.221"
- Pitch Diameter: 3.844"
- Dimension (L): 1-1/2"
- Dimension (C): 3"
- Sprocket Type: B
- Sprocket Weight: 2.2 LBS
- Bushing Weight: 1.0 LBS
