Flange bearings may not be the first component that comes to mind when thinking about mechanical systems, but they are essential for keeping rotating shafts in check. These specialized bearings not only support shafts during rotation but also ensure everything stays aligned and operates with minimal friction. Whether you're managing conveyor systems, working with industrial machinery, or building custom mechanical solutions, flange bearings are likely a key component in your setup. In this article, we’ll explore what flange bearings are, how they function, the different types you can choose from, and how to select the right one. We’ll also guide you to a trusted source—USA Roller Chain and Sprockets—for top-quality flange bearings that won’t let you down.

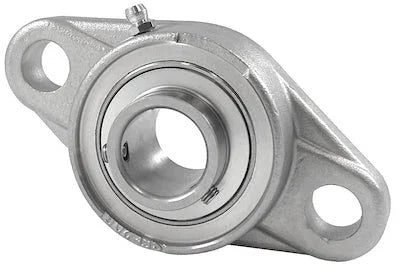

What Is a Flange Bearing?
A flange bearing is a mounted bearing that includes a flanged housing, allowing it to be securely bolted to a surface. This flange is typically available in 2-bolt, 3-bolt, or 4-bolt styles, depending on the level of support and load distribution needed. The bearing itself sits inside the housing and rotates with the shaft, while the flange keeps it anchored in place. These bearings are widely used in systems where the shaft runs perpendicular to the mounting surface.
Inside the flange bearing, you’ll find a bearing insert, often pre-lubricated, which allows smooth rotation while supporting both radial and axial loads. The insert may be fixed or self-aligning, depending on the design. Many flange bearings also include a set screw or locking collar to secure the shaft and prevent slippage during operation. What makes flange bearings stand out from other mounted bearings, like pillow blocks, is their versatility in confined spaces and their ability to provide more accurate shaft alignment, critical in applications that demand long-term precision and performance.
How Flange Bearings Support Rotating Shafts?
Flange bearings are crucial in any rotating shaft application because they offer a stable platform for supporting and guiding motion. These bearings are specifically designed to handle both radial loads (forces perpendicular to the shaft) and axial loads (forces parallel to the shaft). This dual support system allows flange bearings to stabilize the shaft even when it's under considerable pressure or torque. In high-speed or heavy-duty applications, this kind of support is not optional—it’s essential.
Another major benefit of flange bearings is how they help reduce friction. Friction is the enemy of any rotating component, leading to wear, heat buildup, and eventual failure. A good flange bearing provides a low-friction interface that allows the shaft to spin freely, which not only increases efficiency but also helps to extend the life of the shaft and connected components. Additionally, flange bearings help reduce vibration and misalignment, which are two common causes of premature mechanical failure. By maintaining proper shaft alignment, they ensure smoother operation, less noise, and fewer mechanical issues down the line. Overall, they’re a cost-effective way to protect your machinery and keep things running reliably.
Types of Flange Bearings
Not all flange bearings are created equal, and selecting the right one starts with understanding the available types. 2-bolt flange bearings are among the most common and are prized for their simplicity and compact design. They’re easy to install and ideal for applications with limited mounting space or lighter load demands. You’ll often find them in conveyor systems, agricultural equipment, and light industrial machinery.
3-bolt and 4-bolt flange bearings offer increased mounting stability and are better suited for heavier loads or higher vibration environments. The additional bolts provide better distribution of stress across the mounting surface, which helps improve durability and reduce the risk of shifting or loosening over time. These bearings are a smart choice for heavy-duty industrial applications, including gearboxes, fans, and motors.
When it comes to the housing material, you’ll generally find pressed steel and cast iron as the two main options. Pressed steel housings are lightweight, cost-effective, and suitable for applications where high load capacity isn’t a major concern. On the other hand, cast iron housings offer exceptional durability, shock resistance, and longevity, making them ideal for demanding environments.
Another popular option is the self-aligning flange bearing, which can adjust to slight misalignments in the shaft. This feature is especially useful in systems where perfect alignment is hard to achieve or where shaft deflection might occur during operation. Additionally, stainless steel and thermoplastic flange bearings are excellent choices for environments where corrosion, moisture, or chemical exposure is a factor. These materials are widely used in the food processing, pharmaceutical, and marine industries, where hygiene and resistance to harsh conditions are non-negotiable.
Common Applications of Flange Bearings
You’ll find flange bearings in a wide range of industries and mechanical systems. In conveyor and material handling systems, they keep shafts aligned while supporting the motion of rollers, belts, and chains. These systems often operate continuously, making flange bearings critical to uptime and performance. In agricultural equipment, flange bearings handle everything from soil vibration to uneven loading, ensuring that machines like seeders, tillers, and harvesters function correctly in rough outdoor conditions.
In food processing machinery, hygiene and corrosion resistance are essential. That’s where stainless steel and thermoplastic flange bearings really shine. They resist washdowns, chemicals, and food particles, all while maintaining smooth, reliable rotation. Flange bearings are also widely used in HVAC systems, especially in fans and blowers, where alignment and low vibration are important for quiet, efficient operation.
For industrial motors and gearboxes, flange bearings help manage high torque and rotational speed while ensuring alignment between moving parts. Even in DIY automation and robotics projects, flange bearings offer a dependable and easy-to-install option for supporting rotating shafts in small builds and custom machinery.
Choosing the Right Flange Bearing
Selecting the right flange bearing requires a good understanding of your system's requirements. Start by measuring your shaft size and determining the speed (RPM) at which it will rotate. Not all flange bearings are rated for high-speed applications, so make sure you choose one that matches your performance needs. Next, consider the type and direction of the load. Radial, axial, or combined loads will influence whether you need a basic insert or a self-aligning design.
You’ll also want to take into account the environmental conditions. Will the bearing be exposed to moisture, chemicals, extreme temperatures, or dirt? In such cases, sealed, stainless, or thermoplastic options may be your best bet. Maintenance preferences are another key factor. Some bearings are lubrication-free, while others require periodic greasing. Choosing the right maintenance type can save time and prevent unexpected failures.
Lastly, look at the available space and mounting configuration. If you’re working in a tight area, a compact 2-bolt flange may be ideal. For larger setups or high-load areas, a 4-bolt flange provides more support and long-term reliability. It all comes down to understanding your environment and matching your bearing to it.
Why Buy From a Trusted Supplier?
Flange bearings are critical to the smooth operation of your machinery, so quality should never be compromised. Cheap or improperly engineered bearings can cause shaft misalignment, wear down components faster, and lead to costly downtime. That's why it's so important to buy from a supplier that knows bearings inside and out and offers industrial-grade quality.
When you purchase from a trusted supplier, you're not just getting a part—you’re getting peace of mind. You can expect high-quality materials, precision manufacturing, and products that meet or exceed industry standards. You also gain access to knowledgeable support that can help you select the right bearing, troubleshoot issues, or customize solutions based on your unique requirements.
Explore Flange Bearings at USA Roller Chain and Sprockets
At USA Roller Chain and Sprockets, we specialize in high-performance mechanical components, including a full line of flange bearings in all styles, sizes, and materials. Whether you need a 2-bolt stainless steel bearing for a washdown environment or a 4-bolt cast iron option for a heavy-duty application, we have what you’re looking for.
We work with trusted brands and only carry products that meet our strict quality standards. With competitive pricing, fast and reliable shipping, and expert customer support, we make it easy to get the right part—fast. Our team is always ready to help you find the best fit for your application, ensuring your system runs smoothly from day one.
You can browse our full selection of flange bearings online, or reach out to our knowledgeable staff for guidance on selecting the right option.
Conclusion
Flange bearings are an essential part of any system involving rotating shafts. They offer load support, reduce friction, prevent misalignment, and help keep your equipment running reliably. With a wide range of options—2-bolt, 4-bolt, cast iron, stainless steel, and more—there’s a flange bearing for every job. But choosing the right one makes all the difference.
That’s where USA Roller Chain and Sprockets come in. We provide top-tier flange bearings backed by expert support, fast shipping, and unbeatable value. So when it’s time to upgrade or replace a bearing in your system, don’t settle for less—shop with us and experience the difference that quality makes.
