Chain Sizes Explained: ANSI vs. ISO Standards

ANSI & ISO Standards: Key Takeaways

• ANSI and ISO specifications are designed to ensure that roller chains and sprockets work together correctly and perform as expected
• Chain sizes are only part of the equation. Working load, operating conditions, and sprocket compatibility matter, too.
• The right chain today can save you from downtime, repairs, and a few awkward maintenance meetings tomorrow

Most people don't think about roller chains until something starts making a noise it wasn't making yesterday.

Suddenly, a simple replacement isn't so simple.

Between chain sizes and competing industry standards, it's easy to find yourself measuring components, comparing part numbers, and wondering if you ordered the right chain.

That's why ANSI and ISO standards exist.

They provide a common set of dimensions and performance requirements that help ensure chains and sprockets work together as intended, taking much of the uncertainty out of maintenance and replacement.

In this guide, we will:

• Differentiate ANSI between ISO roller chain standards, without needing a standards dictionary
• See why chain and sprocket compatibility is more important than it looks
• Avoid the chain sizing mistakes that love showing up at the worst possible time
• Discover how USA Roller Chain & Sprockets can help you find the right chain for the job

Looking for ANSI heavy duty chain? Count On USA Roller Chain & Sprockets

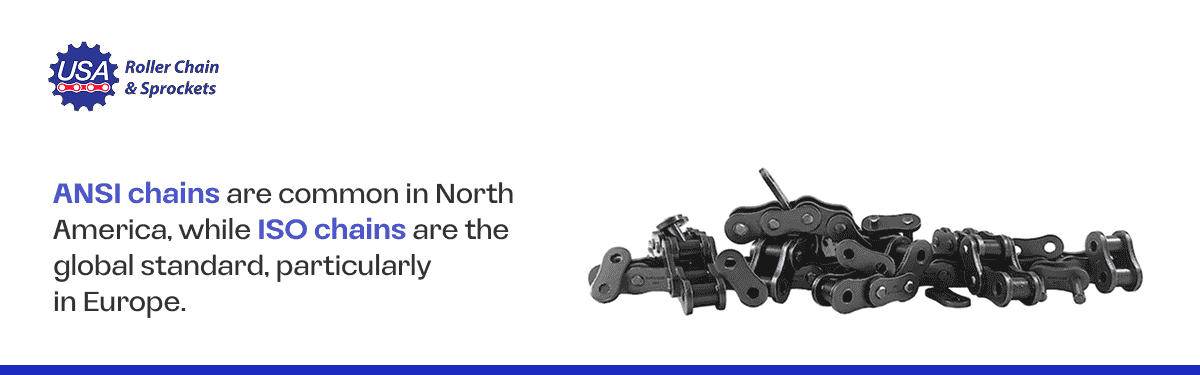

ANSI and ISO Roller Chain Standards Explained

ANSI (American National Standards Institute) and ISO (International Organization for Standardization) publish and maintain standards that help keep roller chains consistent across manufacturers.

By defining dimensions, strength requirements, and interchangeability, they help ensure that a replacement chain or sprocket fits properly and performs as intended, regardless of who made it.

ANSI B29.1 vs. ISO 606 Standards

Here's a side-by-side look at how these standards compare and what those differences mean for chain selection and compatibility:

Feature	ANSI B29.1	ISO 606
Primary market	United States and North America	Europe, Asia, and most international markets
Governing organization	American National Standards Institute (ANSI)	International Organization for Standardization (ISO)
Measurement system	Inch-based dimensions	Metric-based dimensions
Chain identification	#40, #50, #60, #80, etc.	08B, 10B, 12B, 16B, etc.
Interchangeability	Ensures compatibility between ANSI-compliant manufacturers	Makes it easier to replace chains and sprockets from different ISO manufacturers
Common applications	Used across agricultural, manufacturing, and power transmission systems	Manufacturing, packaging, food processing, and conveyor systems
Sprocket compatibility	Designed for ANSI sprockets	Built for ISO sprockets
Usual chain pitch examples	#40 = 1/2 in. pitch, #50 = 5/8 in. pitch	08B = 12.7 mm pitch, 10B = 15.875 mm pitch

Ready to upgrade to ANSI heavy duty chain? Get in Touch With Us

How ANSI and ISO Standards Impact Sprocket Compatibility

Choosing the right chain is only half the battle.

To get the best performance and service life from a chain drive, the chain and sprocket must be designed to the same ANSI or ISO standard.

1. ANSI and ISO Chains Aren't Always Interchangeable

Many people assume chains with the same pitch will fit the same sprocket, but that's not always the case.

ANSI and ISO standards use different dimensions for roller diameter, inner width, and overall chain width, which can affect compatibility even when chain sizes appear similar.

2. Sprockets Are Built for Specific Chain Standards

ANSI sprockets are manufactured to ANSI chain dimensions, while ISO sprockets are manufactured to ISO chain dimensions.

Even when chain sizes share a similar pitch, differences in roller diameter and width can prevent the chain from engaging properly in the sprocket teeth, leading to faster wear.

Common Mistakes When Selecting Industrial Roller Chain Sizes

A roller chain rarely gets credit when everything is running smoothly.

The moment something fails, though, it's suddenly the star of the maintenance meeting.

Before selecting a replacement, avoid these common mistakes that can lead to premature wear, a front-row seat to production delays, and repair bills nobody asked for.

1. Ignoring Service Factors for Shock Loads

A chain that checks all the boxes on paper can still struggle once the real work begins.

One of the most common mistakes when selecting chain sizes is basing the decision solely on continuous motor horsepower.

Between hard starts, sudden stops, shock loads, and unexpected spikes in demand, roller chains often have to work a lot harder than the specs might suggest.

That's where service factors come in.

Applying a service factor, typically between 1.3 and 2.0 or higher, helps account for these real-world conditions and gives your chain the extra capacity it needs to avoid premature wear and failure.

2. Getting the Shaft-to-Center Distance Wrong

Even when you've chosen the correct chain sizes, sprocket spacing can still affect performance and service life.

When sprockets are positioned too close together (like less than 20 times the chain pitch) the chain must articulate more aggressively as it engages the sprockets.

This increases wear on pins, bushings, and rollers.

Move them too far apart, more than 50 times the chain pitch, and you'll likely deal with excessive vibration, chain whip, and reduced performance.

Think of it as the Goldilocks rule of chain drives: not too close, not too far, just right!

3. Confusing Tensile Strength With Working Load

A chain's ultimate tensile strength may look impressive, but it shouldn't be the primary factor when sizing a drive.

What matters most is the Working Load Limit (WLL), which represents the load a chain can handle safely during normal operation.

When comparing chain sizes, don't focus solely on physical dimensions.

Make sure the chain's working load matches the demands of your application.

For heavy-duty or high-impact applications, a safety factor of 7:1 to 10:1 between ultimate tensile strength and working load is generally recommended.

Put simply, just because a chain can survive a load doesn't mean it should operate at that load every day.

4. Focusing Only on Chain Pitch

Many people identify a chain by its pitch and assume that's all they need to know. Unfortunately, roller chains don't work that way.

For example, ANSI #40 and ANSI #41 chains share the same pitch, but they differ in other critical dimensions.

Inner width and roller diameter must also match the sprocket.

Ignore those measurements, and you'll end up with poor engagement, accelerated wear, and a shorter service life for both the chain and sprocket.

When evaluating chain sizes, pitch is important, but it's only part of the story.

5. Using a Standard Chain for a Heavy-Duty Job

Not every ANSI chain is built for the same workload.

A standard ANSI #60 chain might perform well in a typical power transmission application, but heavy shock loads and constant vibration have a way of finding a chain's weak spots.

That's why selecting the right chain size involves more than simply matching dimensions.

Equipment used in agriculture, construction, and other demanding industries often benefits from heavy-series chains like ANSI #60H, which feature thicker side plates for added strength and durability.

If your equipment spends its days getting knocked around, your chain should be ready for the challenge.

6. Forgetting About the Environment

Even the right chain sizes can have a bad day if the environment is constantly working against them.

Standard carbon steel chains are a solid choice for many applications, but moisture, washdown conditions, chemicals, and corrosive environments can turn them into a rust project real fast.

Once rust, corrosion, and contamination show up, wear speeds up, maintenance costs climb, and nobody on the maintenance team is having a good time.

If the operating environment is rough, consider stainless steel, nickel-plated, or self-lubricating roller chains built to handle harsher conditions.

Keep in mind, however, that stainless steel chains are substantially weaker than carbon steel.

When converting from a carbon steel chain to a stainless steel chain, it's important to size up the chain to ensure it can still handle the required working load for your application.

How To Choose the Right Roller Chain for Industrial Applications

Picking a roller chain isn't quite as simple as finding one that fits and calling it a day. Here's how to make the right choice:

1. Start With Chain Sizes

Before you do anything else, figure out the chain size your equipment requires. ANSI and ISO standards make this easier by defining critical dimensions such as chain pitch, roller diameter, and inner width.

When in doubt, our roller chain size chart is a great place to start!

It's one of the easiest ways to identify chain sizes using measurements like pitch, roller diameter, and inner width.

2. Make Sure You're Speaking ANSI or ISO

ANSI and ISO chains can look similar at first glance, but looks can be deceiving.

For instance, an ANSI #40 chain and an ISO 08B chain both have a 1/2-inch (12.7 mm) pitch, yet their other dimensions differ.

Even when the chain sizes appear similar on paper, differences in roller diameter, width, and other specifications can affect compatibility.

That means they won't always fit the same sprockets or perform the same way in service.

A quick check of the equipment specifications can help you avoid an expensive game of trial and error.

3. Look Beyond the Numbers

When comparing chain sizes, don't stop at pitch and dimensions.

Make sure the chain's Working Load Limit is capable of handling the actual operating conditions.

Shock loads, frequent starts and stops, and heavy-duty applications can place far more stress on a chain than steady-state operation.

Think of it this way: a chain might survive the workload, but surviving and thriving aren't the same thing.

The right chain should have enough capacity to handle the job day after day without being pushed to its limits.

4. Consider Where the Chain Works

The environment can be just as important as the load. Moisture, chemicals, abrasive debris, and extreme operating temperatures all affect chain life.

A standard carbon steel chain might thrive in a clean facility, but put it in a corrosive environment and its retirement plans can arrive earlier than expected.

If conditions are tough, stainless steel, nickel-plated, or specialty chains might be the smarter choice.

5. Match the Chain to the Job

Bigger isn't always better, especially when it comes to roller chains.

A standard roller chain can handle many everyday power transmission applications without breaking a sweat.

But throw in heavy shock loads, constant vibration, and harsh operating conditions, and it's a different story.

For these tougher jobs, heavy-duty chains are often the better choice.

6. Double-Check Sprocket Compatibility

This is the step many people skip, and it's often the one that causes problems.

Before installing a new chain, verify that it matches the sprocket's dimensions.

Even chains with similar chain sizes can have different widths or roller diameters.

If the roller chain and sprocket aren't properly matched, wear accelerates, efficiency drops, and your maintenance team gets another item added to their to-do list.

Find the Right ANSI Heavy Duty Chain for the Job at USA Roller Chain & Sprockets

When standard roller chains start feeling the strain, premium roller chains are built to pick up the slack.

With thicker side plates for added strength and durability, ANSI heavy-duty roller chains are a smart choice for equipment that deals with heavy shock loads, constant vibration, and tough operating conditions day after day.

At USA Roller Chain & Sprockets, we offer a full selection of ANSI heavy duty roller chains in a wide range of chain sizes for demanding industrial applications.

Proudly operated in the USA, our team provides the products, expertise, and support needed to help customers keep their equipment running at its best!

Whether you're running agricultural equipment, conveyor systems, construction machinery, or other hard-working equipment, these chains provide the durability and reliability needed to keep operations moving.

The right chain today can help prevent headaches tomorrow.

Our team is more than happy to help! Dial 407-347-3519 to get started.

When a standard chain isn't enough, go heavy duty. Shop From Our Inventory

ANSI & ISO Standards: FAQs

ANSI vs. ISO roller chain standards: what's the difference?

The main difference is that ANSI standards are primarily used in North America and use chain sizes such as #40 and #50.

On the other hand, ISO standards are more common internationally and use metric designations such as 08B and 10B.

Are ANSI and ISO roller chains interchangeable?

ANSI and ISO (European/British Standard) roller chains aren't interchangeable.

While some ANSI and ISO chains may share the same pitch, they differ in key dimensions such as roller diameter, pin diameter, and inner width, and available chain sizes.

Why do roller chain dimensions and tolerances matter?

Roller chain dimensions and tolerances ensure the chain and sprocket fit together correctly, helping the drive system run seamlessly across different chain sizes and applications.

When components fall outside established standards, they can cause poor engagement, accelerated wear, excessive vibration, and a shorter service life for both the chain and sprocket.

Have more questions about roller chain sizes? Ask Away
