A No-Nonsense Guide To Measuring Roller Chain Pitch [+ FAQs]

Chain Pitch: Key Takeaways

• Chain pitch is one of those measurements people either know by heart, or they don’t think much about it at all until the roller chain starts rattling itself into an early retirement
• A few minutes spent measuring chain pitch correctly can save you from noisy sprockets, uneven wear, and the kind of downtime that ruins everybody’s day
• Whether you’re working on industrial conveyors, agricultural products, or heavy industrial machinery, choosing the right chain pitch for your application helps keep equipment running smoother

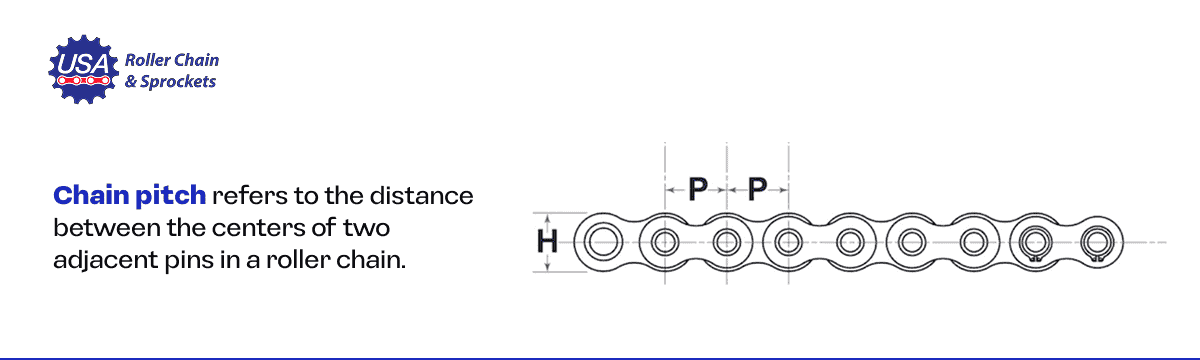

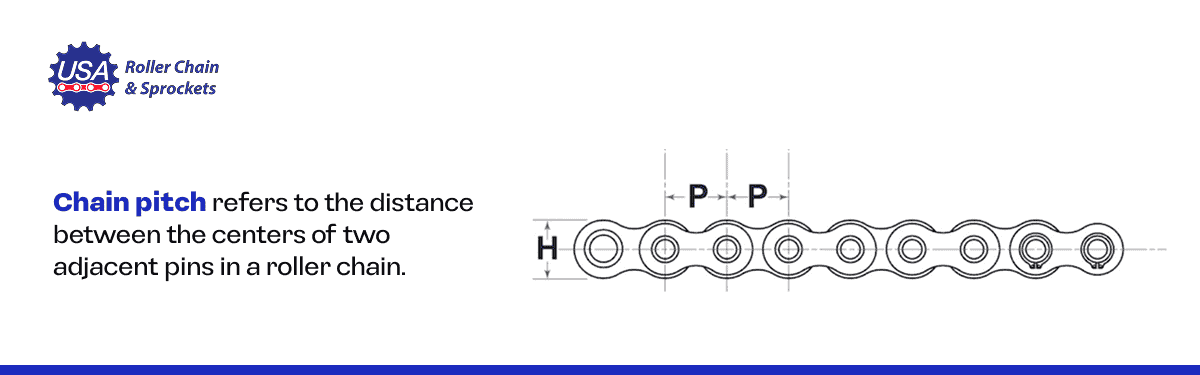

Chain pitch is the distance between the centers of two consecutive pins in a roller chain, and it’s one of the most important measurements in the entire drive system.

That small measurement determines chain size, sprocket compatibility, and how smoothly the equipment runs.

If the pitch is incorrect, even slightly, the chain and sprocket stop working together properly. That can lead to vibration, uneven wear, chain jumping, and shorter component life.

Whether you’re working on a conveyor, farm equipment, or a heavy-duty industrial drive, matching the correct chain pitch helps keep equipment running smoother, quieter, and more reliably.

In this guide, we will:

• Show you how to measure roller chain pitch without turning it into a guessing game
• Break down the common roller chain pitch sizes and what they’re used for
• Help you find roller chains and power transmission parts that work as hard as your equipment

Looking for roller chains that won’t tap out early? We’ve Got You Covered at USA Roller Chain & Sprockets

Step-by-Step Process on How to Measure Roller Chain Pitch

If you’re replacing a roller chain, checking the pitch is usually the quickest way to figure out exactly what you’re working with.

It sounds simple, but even a small measurement mistake can cause the chain to sit wrong on the sprocket teeth, leading to extra wear, rough operation, and a chain that won’t last nearly as long as it should.

Most guys who’ve worked around equipment long enough know this is one of those “measure twice, order once” situations.

If you’ve got a chain in one hand and a tape measure in the other, start here:

1. Locate the Pins

Lay the roller chain flat and find two consecutive pins, sometimes called rivets. These are the round pin heads that hold the chain links together.

The pitch is always measured from the center of one pin to the center of the next pin directly beside it.

If the chain is covered in grease or debris, wipe it down first so the pin centers are easier to see.

2. Measure the Distance

Using a ruler or, preferably, a digital caliper, measure the center-to-center distance between the two pins. That measurement is the chain pitch.

For instance, if the distance between the pin centers measures 1/2 inch, you’re likely working with a #40 roller chain.

A digital caliper usually gives the most accurate reading, especially on smaller ANSI chain sizes covered under ANSI B29.1 standards.

3. Measure Multiple Pitches for Accuracy

If the chain is old or worn, measuring a single pitch can give you a slightly inaccurate reading due to internal wear between the pins and bushings.

A better method is to measure across three pins, which equals two pitches, then divide that number by two.

For example, if the measurement across three pins is 1 inch, the chain pitch is 1/2 inch.

This method gives you a more accurate measurement, especially on chains that have seen more grease, grit, and overtime than most toolboxes.

4. Match the Pitch to ANSI Chain Sizes

Most ANSI roller chain pitches increase in 1/8-inch increments according to ANSI roller chain standards.

Common examples include:

• 1/4-inch pitch = #25 chain
• 3/8-inch pitch = #35 chain
• 1/2-inch pitch = #40 chain
• 5/8-inch pitch = #50 chain

For example, if the pin-to-pin measurement is 1/2 inch, you’re likely working with a #40 roller chain.

Common Roller Chain Pitch Sizes

If you’ve spent enough time around machinery, you know roller chains are a lot like pickup trucks.

Sure, they all do the same basic job, but some are created for light work, and some are built to pull hard all day without complaining.

The chain pitch size is what tells you what kind of work the chain was made for, whether it’s running a small conveyor or powering a heavy industrial drive that never seems to shut off.

Since ANSI roller chains use standardized pitch measurements, matching chains and sprockets is easier once you know the size you’re working with.

#25 Roller Chain

The #25 roller chain uses a 1/4-inch pitch and is typically found on smaller equipment and lighter-duty applications.

Think robotics, small conveyors, compact drives, and hobby equipment.

It’s a smaller chain, but for the right application, it gets the job done without adding unnecessary weight or bulk.

#35 Roller Chain

A #35 roller chain has a 3/8-inch pitch and is a common step up in strength and durability. You’ll often see it on agricultural equipment, light industrial machinery, and moderate-load conveyor systems.

For a lot of folks, #35 chain hits a sweet spot between compact size and dependable performance.

#40 Roller Chain

The #40 roller chain features a 1/2-inch pitch and is probably one of the most recognized ANSI chain sizes out there.

It’s everywhere, from farm equipment and shop machinery to packaging systems and industrial conveyors.

Guys who’ve been around equipment for years usually know a #40 chain the second they pick one up. It’s versatile, dependable, and tough enough for a wide range of applications.

#50 Roller Chain

A #50 roller chain uses a 5/8-inch pitch and is built for heavier loads and tougher working conditions.

This is the kind of chain you’ll usually find on manufacturing equipment, construction machinery, and industrial drive systems where strength matters.

When equipment starts seeing more torque and heavier workloads, many operators move up to #50 chain for the added durability.

#60 Roller Chain

The #60 roller chain has a 3/4-inch pitch and is built for equipment that actually earns its keep.

You’ll commonly find it on large conveyors, forestry equipment, agricultural systems, and industrial machinery that spends more time running than sitting still.

This is the kind of chain made for long shifts, muddy jobsites, dusty facilities, and machines that seem personally offended by the idea of downtime.

#80 Roller Chain

A #80 roller chain is a heavy-duty industrial drive chain manufactured to ANSI B29.1 standards

It has a 1-inch pitch, which is the distance between the centers of two adjacent pins, and a 0.625-inch roller width.

Thanks to its strength and durability, it's commonly used for power transmission and conveying applications in demanding industries such as agriculture, mining, and sawmills.

Find roller chains and other hardworking parts at USA Roller Chain & Sprockets. Get in Touch With Us

How Chain Pitch and Pitch Diameter Affect Load Capacity and Performance

Chain pitch might seem like just another spec on a parts sheet, but it has a huge impact on how a roller chain performs once the machine starts working.

The pitch affects everything from load capacity and operating speed to vibration, wear, and overall chain life. It also plays a role in overall drive system efficiency and long-term equipment performance.

In other words, the right pitch keeps everything running seamlessly. The wrong pitch usually announces itself with noise, vibration, and regret.

1. Bigger Pitch Usually Means Bigger Muscle

As chain pitch increases, so do the size of the pins, rollers, bushings, and side plates.

That extra material gives the chain more tensile strength and allows it to handle heavier loads without wearing out as quickly.

That’s why larger ANSI chains like #60, #80, and #100 are commonly found on:

• Heavy conveyors
• Agricultural equipment
• Forestry machinery
• Industrial drive systems

2. Smaller Pitch Chains Like to Move Fast

Smaller pitch chains may not have the brute strength of larger chains, but they shine in faster-running equipment.

Since the rollers engage the sprocket teeth more often, the chain runs smoother and usually with less vibration.

You’ll commonly find smaller pitch chains on:

• Packaging equipment
• Small conveyors
• Recreational vehicles
• Precision machinery

For higher-speed applications, smaller chains often deliver quieter operation and more consistent performance.

3. Sprocket Engagement Makes All the Difference

A roller chain and sprocket are supposed to work together like a good ratchet and socket.

When the pitch matches correctly, the chain engages cleanly into the sprocket teeth and distributes the load evenly across the drive.

When the pitch is wrong, things get ugly fast.

The chain can ride high on the sprocket teeth, vibrate excessively, wear unevenly, or even skip under load.

Usually, the machine starts “talking” before it completely fails, and experienced operators know those noises are never cheap.

4. Bigger Isn’t Always Better

A common mistake is assuming a larger chain automatically means a better setup.

In reality, oversized chains can add unnecessary weight, lower efficiency, and place extra stress on the system.

On the flip side, undersized chains tend to wear out quickly when pushed beyond their load capacity.

The right chain pitch depends on the application itself, including:

• Load requirements
• Operating speed
• Shock loads
• Environmental conditions
• Sprocket size and alignment

That’s why seasoned maintenance crews don’t just grab the biggest chain on the shelf and hope for the best.

They match the pitch to the job, so the equipment runs smoother, the sprockets stay happier, and the machine keeps earning money instead of collecting dust in the repair bay.

Common Mistakes in Measuring Chain Pitch

Here are a few common chain pitch mistakes that can make perfectly good equipment sound worn out.

1. Measuring From Edge to Edge Instead of Center to Center

This is probably the most common mistake, especially when measuring roller chains in a hurry.

Consider this the roller chain version of grabbing the wrong wrench and hoping it still works.

Pitch is always measured from the center of one pin to the center of the next pin, not from the outer edges of the pins or rollers.

Measuring edge to edge can throw the size off enough to order the wrong ANSI chain. When in doubt, slow down and measure center to center.

One thing our team sees more often than you'd think is customers ordering the wrong chain because of a measurement mistake.

"We see this happen semi-often, maybe twice a month," our team explained.

Something as simple as measuring edge to edge instead of center to center can be enough to put the wrong chain on order.

That's why we always recommend taking a few extra minutes to verify the measurement before buying a replacement chain.

2. Measuring a Worn Chain Across One Pitch Only

Older chains develop internal wear between the pins and bushings over time. If you only measure a single pitch on a worn chain, the reading might not be completely accurate.

That’s why experienced mechanics usually measure across multiple pitches, then divide the measurement accordingly.

It gives a more reliable number of chains that have spent years working hard.

3. Forgetting To Clean the Chain

Trying to measure a chain packed with grease, dirt, or rust is a little like trying to read a tape measure through mud.

Built-up debris can make it harder to locate the exact center of the pins and can affect measurement accuracy.

A quick wipe-down before measuring usually saves time and frustration later.

4. Utilizing the Wrong Measuring Tool

A tape measure can get you close, but a digital caliper gives you the kind of accuracy machinery truly appreciates.

Calipers give cleaner, more precise readings, especially on smaller ANSI roller chains where even small measurement errors matter.

5. Assuming the Old Chain Was Correct to Begin With

You’d be surprised how often this turns out to be the problem.

Sometimes the chain already on the equipment isn’t the original size.

Over the years, machines have been repaired with whatever was available, especially in older shops or field repairs.

If something seems off, don’t assume the existing chain is automatically correct.

Check the sprocket size, equipment specs, and overall fit before ordering replacements.

Keep Your Equipment Running With Roller Chains and Related Parts From USA Roller Chain & Sprockets

Roller chains are trusted across industries because they’re built for real work, not showroom floors.

They handle heavy loads, dirty environments, long shifts, and equipment that somehow always decides to break at the worst possible time.

But the chain is only half the story.

Chain pitch affects how the chain rides on the sprocket teeth, how evenly the load gets distributed, and whether the drive system runs smooth or starts sounding like a coffee can full of bolts.

When the chain, sprockets, and related components actually match, equipment runs quieter, wears more evenly, and spends a lot less time parked in the repair bay.

At USA Roller Chain & Sprockets, we help customers find the right setup the first time.

From roller chains and sprockets to bearings, pulley bushings, and other power transmission components, we carry the parts needed to keep equipment running smooth, efficient, and out of the repair bay.

Need help finding the right roller chain setup? Our Team Is Always Happy to Help

Chain Pitch and Pitch Diameter: FAQs

What is chain pitch in a roller chain?

Chain pitch is the distance between the centers of two consecutive pins in a roller chain.

It’s the measurement that determines the chain size and ensures the chain fits correctly with the sprocket teeth.

Think of it as the foundation of the entire chain drive system. If the pitch is correct, the chain and sprocket work together smoothly.

What is a double pitch roller chain?

A double pitch roller chain is a type of roller chain designed with a pitch that’s twice as long as a standard ANSI roller chain.

In simple terms, the distance between the pin centers is doubled, which allows the chain to use longer link plates and fewer components overall.

What happens if the chain pitch does not match the sprocket?

When the chain pitch and sprocket pitch don’t match, problems show up quickly.

The chain won’t engage properly on the sprocket teeth, which can cause vibration, rough operation, uneven wear, and chain jumping under load.

Usually, the machine starts making noises nobody wants to hear.

Over time, the mismatch can wear out both the chain and sprocket much faster than normal and increase the risk of unexpected downtime.
