Description
Specification

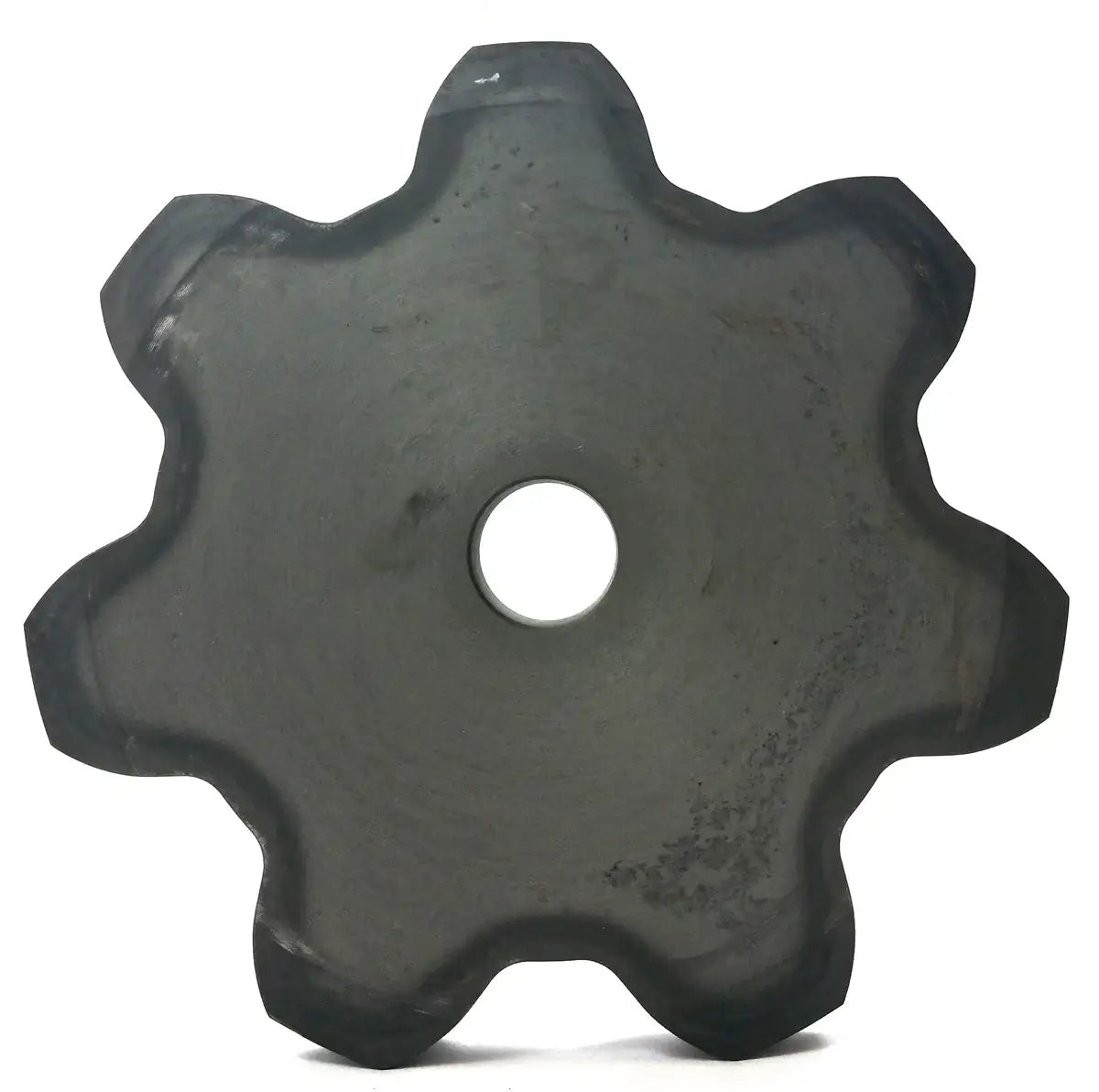

WH78-A7 Sprocket

This WH78 sprocket will work with both WR78 welded steel chain and WH78 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Style: A-Plate
  • Number Of Teeth: 7
  • Pitch: 2.609"
  • Pitch Diameter: 6.01"
  • Shroud Diameter: 4.150"
  • Barrel Diameter: 0.875"
  • Plate Thickness: 0.875"
  • Tooth Face: 1.000"
  • Maximum Bore: 2.1875"
  • Weight: 7.50 LBS
  • Compatible Chains: WR78, WH78, C188

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Will Work With WR78 Chain & WH78 Chain
  • Premium Quality Chain Sprocket
  • Wide Range Of Options Available
  • Best Pricing From USA Roller Chain & Sprockets
Featured image
  • Style: A-Plate
  • Number Of Teeth: 7
  • Pitch: 2.609"
  • Pitch Diameter: 6.01"
  • Shroud Diameter: 4.150"
  • Barrel Diameter: 0.875"
  • Plate Thickness: 0.875"
  • Tooth Face: 1.000"
  • Maximum Bore: 2.1875"
  • Weight: 7.50 LBS
  • Compatible Chains: WR78, WH78, C188
