IWIS SS802-K750 Stainless Steel Table Top Chain

IWIS SS802-K750 Stainless Steel Table Top Chain

Note: Custom Cut to Length Chain Also Available
Product Code: I-SS802-K750-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification

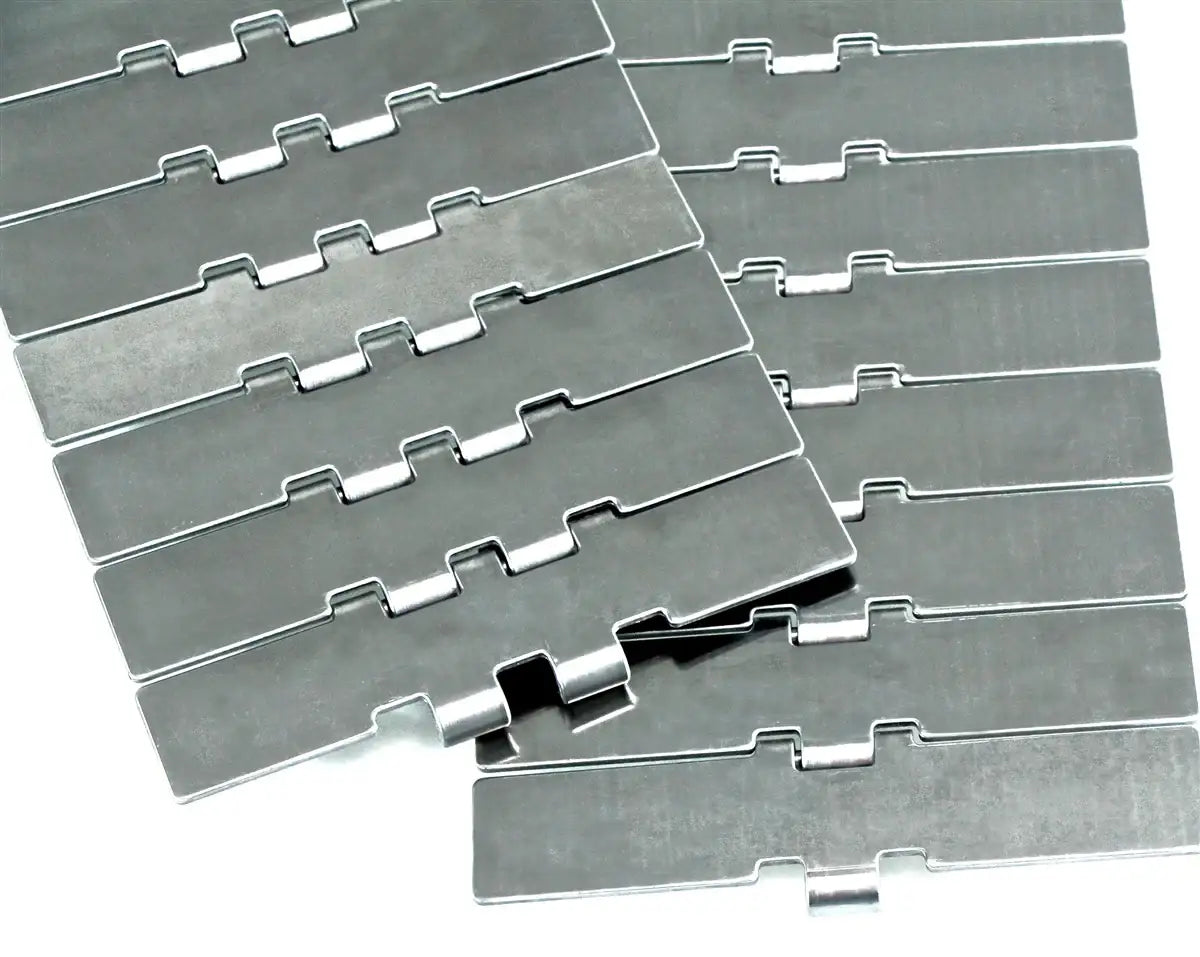

IWIS Flexon MaxxTop Series SS802-K750 Stainless Steel Table Top Chain sets its self apart from other brands by offering the utmost highest quality and best performance. This chain is high strength, superior quality, corrosion resistant, and offers the ultimate dependability to keep you up and running. SS802-K750 chain is a straight-running chain that is 7.50" wide and manufactured out of Ferritic stainless steel with 17% chrome. Each component to this chain is through herded to a 17 HRC hardness rating for extreme durability and strength. SS802-K750 Steel Table Top Chain is highly resistant to corrosion, and is capable of operating in temperatures ranging from -40F to +752F. USA Roller Chain & Sprockets is an authorized distributor for IWIS brand chains so you can purchase this chain directly from us with ease. For more information or to get a quote on this chain please contact us and one of our highly trained expert customer service representatives will be happy to assist you.

Dimensions:

  • Chain Size: SS802-K750
  • Pitch (P): 1.500"
  • Plate Thickness (T): 0.122"
  • Pin Diameter (D): 0.25"
  • Plate Gap (G): 0.063"
  • Width (L): 7.500"
  • Backflex Radius (R): 5.905"
  • Dimension (H): 0.260"
  • Dimension (W): 3.15"
  • Dimension (X): 3.27"
  • Material: Ferritic Stainless Steel
  • Chain Strength: 2,318 LBS
  • Chain Weight: 3.90 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Ferritic Stainless Steel With 17% Chrome
  • Meets AISI 430 & DIN 1.4016 Standards
  • High Mechanical Strength
  • Wear & Corrosion Resistant
  • Applicable For Magnet Chains
  • -40F - +752F Temperature Range
  • Hardened To 17 HRC Rating
Featured image
  • Chain Size: SS802-K750
  • Pitch (P): 1.500"
  • Plate Thickness (T): 0.122"
  • Pin Diameter (D): 0.25"
  • Plate Gap (G): 0.063"
  • Width (L): 7.500"
  • Backflex Radius (R): 5.905"
  • Dimension (H): 0.260"
  • Dimension (W): 3.15"
  • Dimension (X): 3.27"
  • Material: Ferritic Stainless Steel
  • Chain Strength: 2,318 LBS
  • Chain Weight: 3.90 LBS/ FT
