Rosta 06560003 #50-2 Chain Rider For - SE18 Tensioner

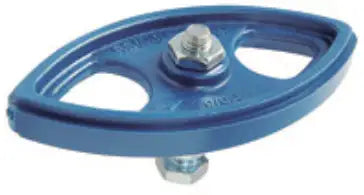

Rosta 06560003 #50-2 Chain Rider
Rosta 06560003 #50-2 Chain Rider



Product Code: 06560003-50-2-CHAIN-RIDER
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

Rosta 06560003 #50-2 Chain Rider For SE18 Tensioners is made from high-quality POM-H and is designed for double-sided use. The maximum allowable speed for the chain rider is 59 inches per second. For more information or to get a quote please contact us and we will be happy to assist you!

Rosta 06560003 #50-2 Chain Rider Dimension


  • Article Number: 06560003
  • Type: P-5/8"-10D
  • Works With ANSI Chain Size: 50-2
  • Works With DIN 8187 Chain Size: 10B-2
  • Dimension (W): M10
  • Dimension (L): 70mm
  • Dimension (X): 126mm
  • Dimension (Y): 63mm
  • Dimension (Z): 16.6mm
  • Torque Hex Nut 0.5 d (Nm): 20
  • Works With Tensioner Type: SE-18
  • Adjustable Range (R) with SE: 34-46
  • Weight: 0.17 kG
About Us
Features
    • High-Quality Chain Rider
    • Made In Accordance With ANSI and ISO Standards
    • High-Strength Construction
