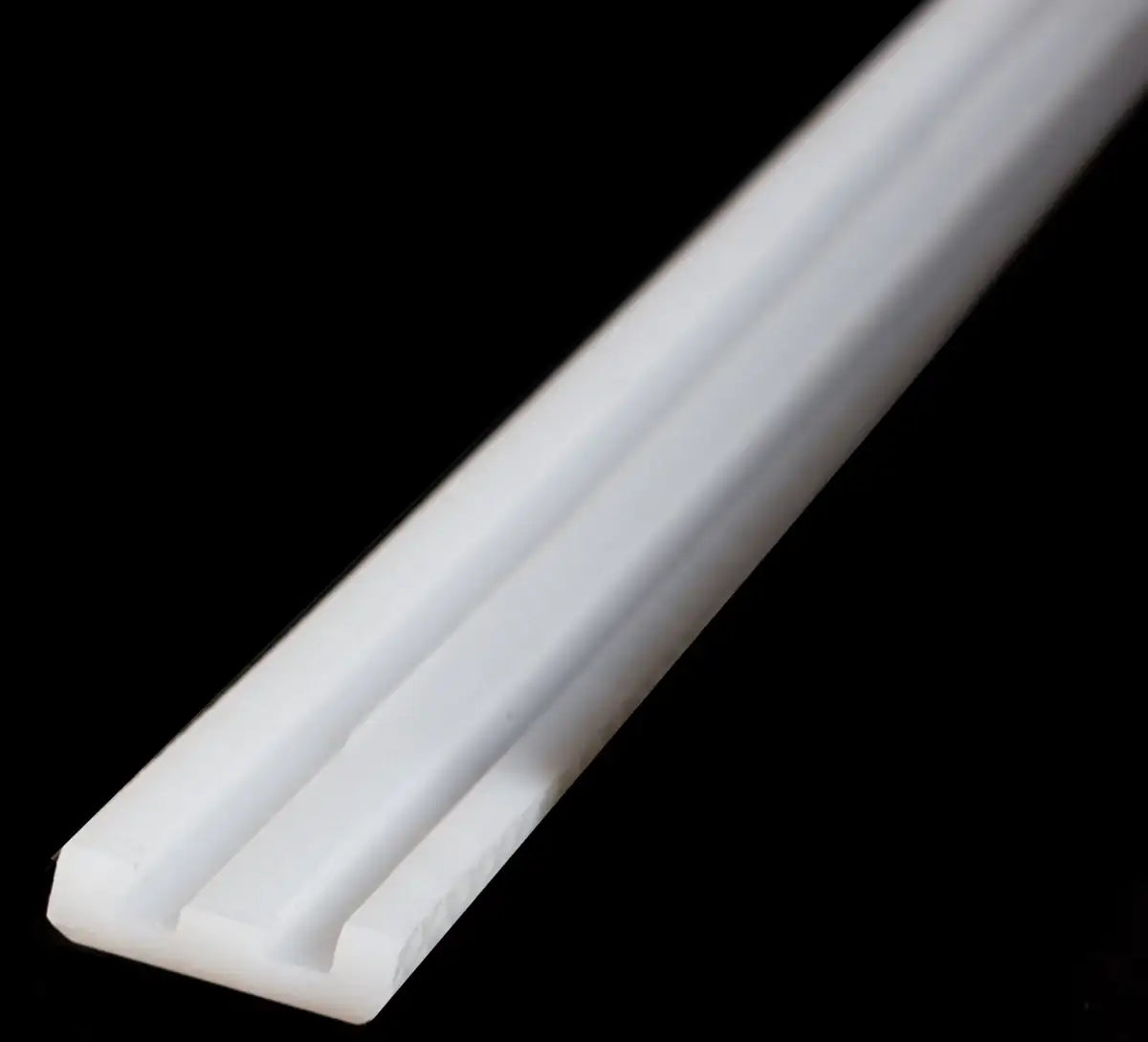

Raised Channel Style C2040 Chain Guide
Raised Channel Style C2040 Chain Guide
Raised Channel Style C2040 Chain Guide

Note: Custom Lengths Available


Availability: Typically In-Stock
Product Code: C2040-RAISED-CHANNEL-GUIDE
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

Our raised channel style C2040 chain guide is manufactured to high precision tolerances and conforms to ANSI standards, thus guiding C2040 roller chain in the most effective and productive manner possible. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request.

Raised Channel Style C2040 Chain Guide Dimensions


  • Chain Size: 2040
  • Dimension (A): 0.31"
  • Dimension (B): 1.00"
  • Dimension (C): 0.14"
  • Dimension (D): 0.69"
  • Dimension (E): 0.25"
  • Dimension (F): 0.08"

Raised Channel Style Chain Guide Available Materials:
Black Repro UHMW is for low demanding applications and is the lower cost material available for chain guides, it has an overall lower property level than virgin UHMW-PE.
Oil-Filled UHMW is best for high-speed applications and will poses an extended chain life as well.
Green Repro UHMW matches DIN 2768 European guidelines. This UHMW shares the same characteristics as the black repro material.
Static Dissipative UHMW is a high quality conductive material.
HT UHMW is a high performance material for high temperature applications, it can operate in temperatures up to 275°F.

Besides chain guides we can also supply high quality double pitch roller chains, roller chain sprockets, gear reducers, shafting, and more! To get a quote on raised channel style C2040 chain guide or for additional information please contact our sales team and we will be happy to assist you.
About Us
Features
    • High Quality Chain Guide
    • Manufactured to High Precision Tolerances
    • Extremely Durable
    • Long Term High Performance
