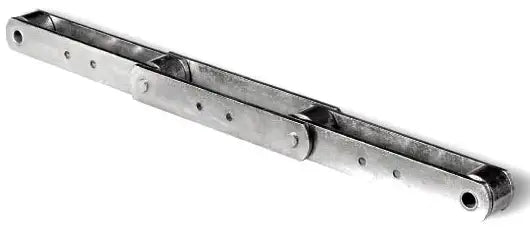

M315A200 Stainless Steel Conveyor Chain

M315A200 stainless steel chain fully meets ISO standards and is constructed out of high quality stainless steel. This chain is highly resistant to corrosion, high strength, and high quality for an extended working life. Additionally we can supply M315A200 stainless steel sprockets and M315A200 attachments; for pricing and availability contact us.

Dimensions:

  • Pitch (P): 200mm
  • Average Weight: 16.70 kg/m
  • Roller Style D1: 50mm
  • Roller Style D2: 100mm
  • Roller Style D4: 124mm
  • Flange Thickness (G): 10.5mm
  • Pin Diameter (D6): 25mm
  • Overall Pin & Cotter (F1): 97mm
  • Overall Pin & Cotter (F2): 57mm
  • Bushing Diameter (D5): 36mm
  • Between Sidebars (L): 48mm
  • Sidebar Thickness (S): 10mm
  • Sidebar Height (H): 70mm

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality
  • High Strength
  • Corrosion Resistant
  • Manufactured Out Of Stainless Steel
  • Fully Meets ISO Standards
  • Extended Working Life
  • Extremely Durable
