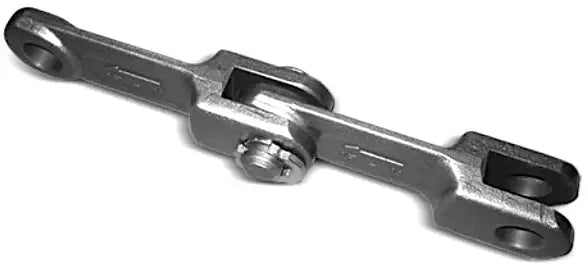

F-14218 Chain | Forged Link Chain

Note: Custom Cut to Length Chain Also Available

Product Code: JKF-14218-CHAIN

Shipping calculated at checkout.

F-14218 Chain has proven to be one of the most reliable conveying mediums offering a combination of versatility, strength, and abrasion resistance. Typically F14218 chain is found in wastewater applications, food processing, chemical plants, foundries, and even refineries. The high-strength and extreme durability of F-14218 chain make it an ever-growing option for conveying applications. What separates out forge link chain is various heat-treat processes and the material options available.

TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

We also supply F-14218 chain sprockets, pin styles, and attachment types. For more information or to get a quote please contact us and we will be happy to assist you.

F14218 Chain Dimensions

Chain Size: F-14218
Pitch (P): 142mm
Dimension (T): 42mm
Dimension (C): 50mm
Dimension (S): 19mm
Dimension (F): 20mm
Dimension (R): 11mm
Bolt-Hole Diameter (D): 25mm
TN Option Breaking Load: 290 kN
CN Option Breaking Load: 320 kN
CD Option Breaking Load: 550 kN
Weight: 9.40 kG/ M

F-14218 Pin Options

Type 22 - Standard Double Circlip	Type HD/22 - Hardened Pin With Standard Circlip	Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention
Type 22 - Standard Double Circlip	Type HD/22 - Hardened Pin With Standard Circlip
Type HD/45/28S - Headed Pin With Collar and S Cotter Retention	Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention	Type HD/28S - Headed Pin With Washer and S Cotter Retention
