D60R45 Sprocket (Taper Bushed)
D60R45 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
Regular price
$394.99
$394.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: D60R45-SPROCKET
In Stock
Couldn't load pickup availability
Other Customers Viewed

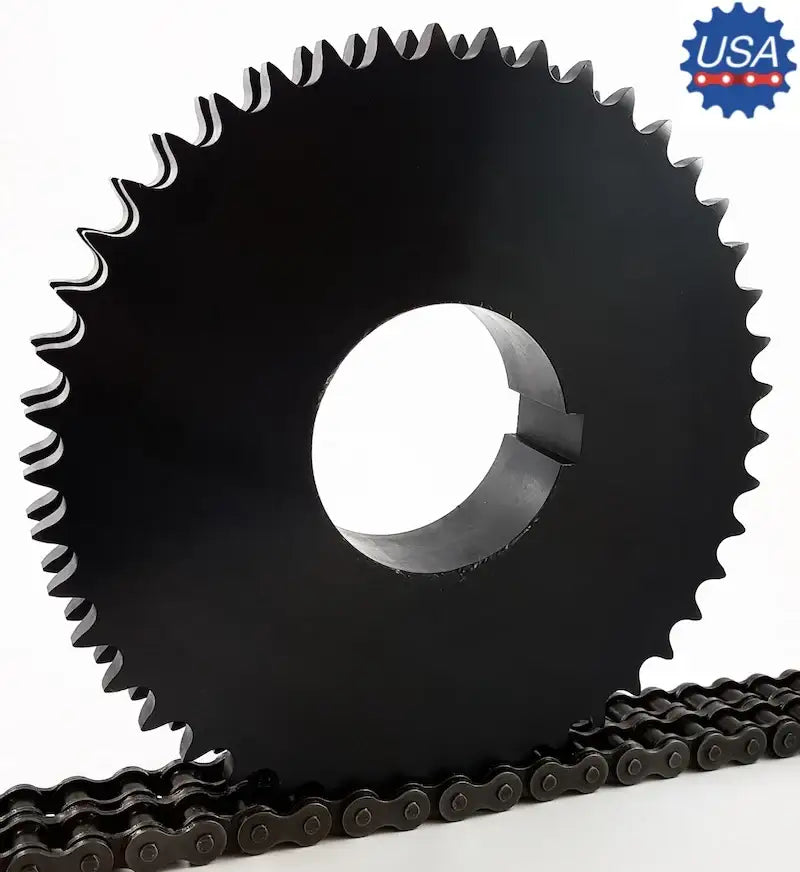

This D60R45 sprocket is a durable, high quality, and precision double sprocket with 45 teeth that is manufactured to accept a R1 bushing . Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Besides the D60R45 sprocket we have a full line of premium R1 bushings right off the shelf. We also have sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Sprocket Size: D60R45 Tooth Count: 45 Bushing Type: R1 Outside Diameter: 11.180" Pitch Diameter: 10.752" Sprocket Type: 12 Dimension (OL): 3-5/32" Dimension (L): 2-7/8" Dimension (C): 0" Dimension (H): 5-3/8" Dimension (P): 1-17/32" Dimension (T): 0.444" Bushing Weight: 7.5 LBS Sprocket Weight: 30.2 LBS
Email:
Feature
- Premium Quality Sprocket
- Extremely Durable
- Black Oxide Coated
- Meets ANSI Standards
- High Performance
Sprocket Size: D60R45 Tooth Count: 45 Bushing Type: R1 Outside Diameter: 11.180" Pitch Diameter: 10.752" Sprocket Type: 12 Dimension (OL): 3-5/32" Dimension (L): 2-7/8" Dimension (C): 0" Dimension (H): 5-3/8" Dimension (P): 1-17/32" Dimension (T): 0.444" Bushing Weight: 7.5 LBS Sprocket Weight: 30.2 LBS
