D60E95 Sprocket (QD Type)

D60E95 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$2,243.99
$2,243.99
In Stock
On Sale Sold out
Product Code: D60E95-SPROCKET
In Stock

Login to Request a Quote

Other Customers Viewed
60-2 Roller Chain - 10ft Box
60-2 Roller Chain - 10ft Box
Login
General Duty Plus #60-2 Roller Chain - 10ft Box
General Duty Plus #60-2 Roller Chain - 10ft Box
$169.99
Login
Premium #60-2 Roller Chain - 10ft Box | Premier Series Chain
Premium #60-2 Roller Chain - 10ft Box | Premier Series Chain
$399.99
Login
View full details
Description
Specification

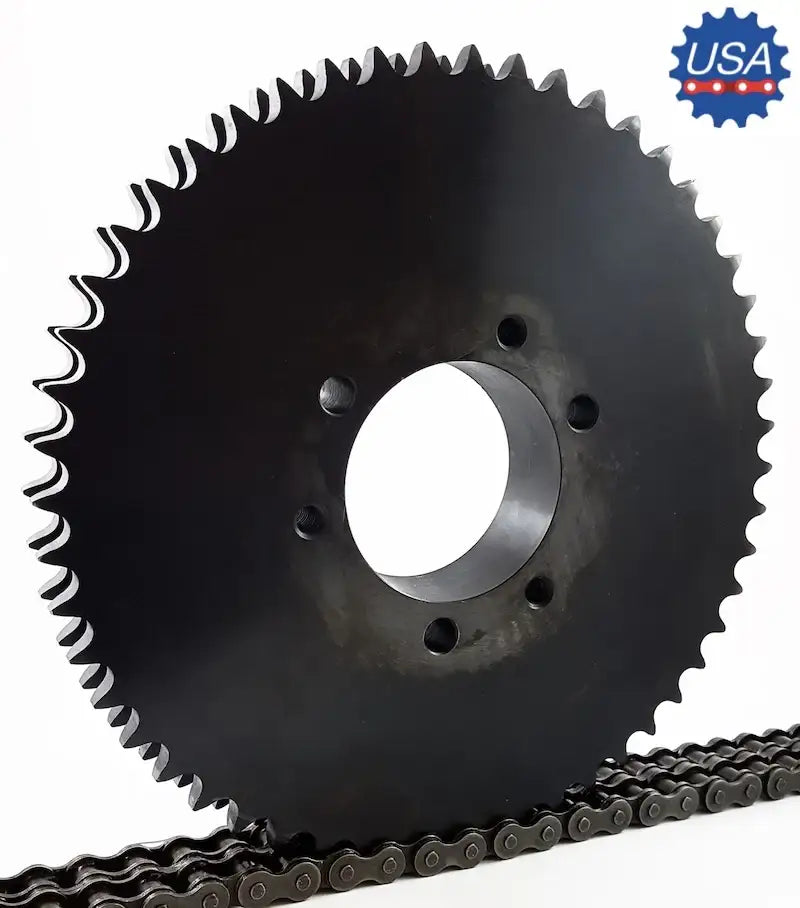

This D60E95 sprocket is a high-quality, precision, and durable QD type sprocket that has 95 teeth. D60E95 sprockets use an E-Type QD Bushing and are a solid construction sprocket. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Along with the D60E95 sprocket, we offer a full line of premium E-Type QD bushings right off the shelf and at great pricing. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:

  • Sprocket Size: D60E95
  • Tooth Count: 95
  • Bushing Size: E
  • Outside Diameter: 23.120"
  • Pitch Diameter: 22.683"
  • Sprocket Type: C4
  • Dimension (L1): 2-5/8"
  • Dimension (L2): 2-15/16"
  • Dimension (C): 6"
  • Dimension (Y): 7/8"
  • Dimension (P): 13/32"
  • Dimension (G): 9/32"
  • Dimension (X): 1-5/8"
  • Dimension (T): 0.444"
  • Dimension (W): 1.341"
  • Sprocket Weight: 72.96 LBS
  • Bushing Weight: 10.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Extremely Durable
  • Black Oxide Coated
  • Meets ANSI Standards
  • High Performance
Featured image
  • Sprocket Size: D60E95
  • Tooth Count: 95
  • Bushing Size: E
  • Outside Diameter: 23.120"
  • Pitch Diameter: 22.683"
  • Sprocket Type: C4
  • Dimension (L1): 2-5/8"
  • Dimension (L2): 2-15/16"
  • Dimension (C): 6"
  • Dimension (Y): 7/8"
  • Dimension (P): 13/32"
  • Dimension (G): 9/32"
  • Dimension (X): 1-5/8"
  • Dimension (T): 0.444"
  • Dimension (W): 1.341"
  • Sprocket Weight: 72.96 LBS
  • Bushing Weight: 10.0 LBS
