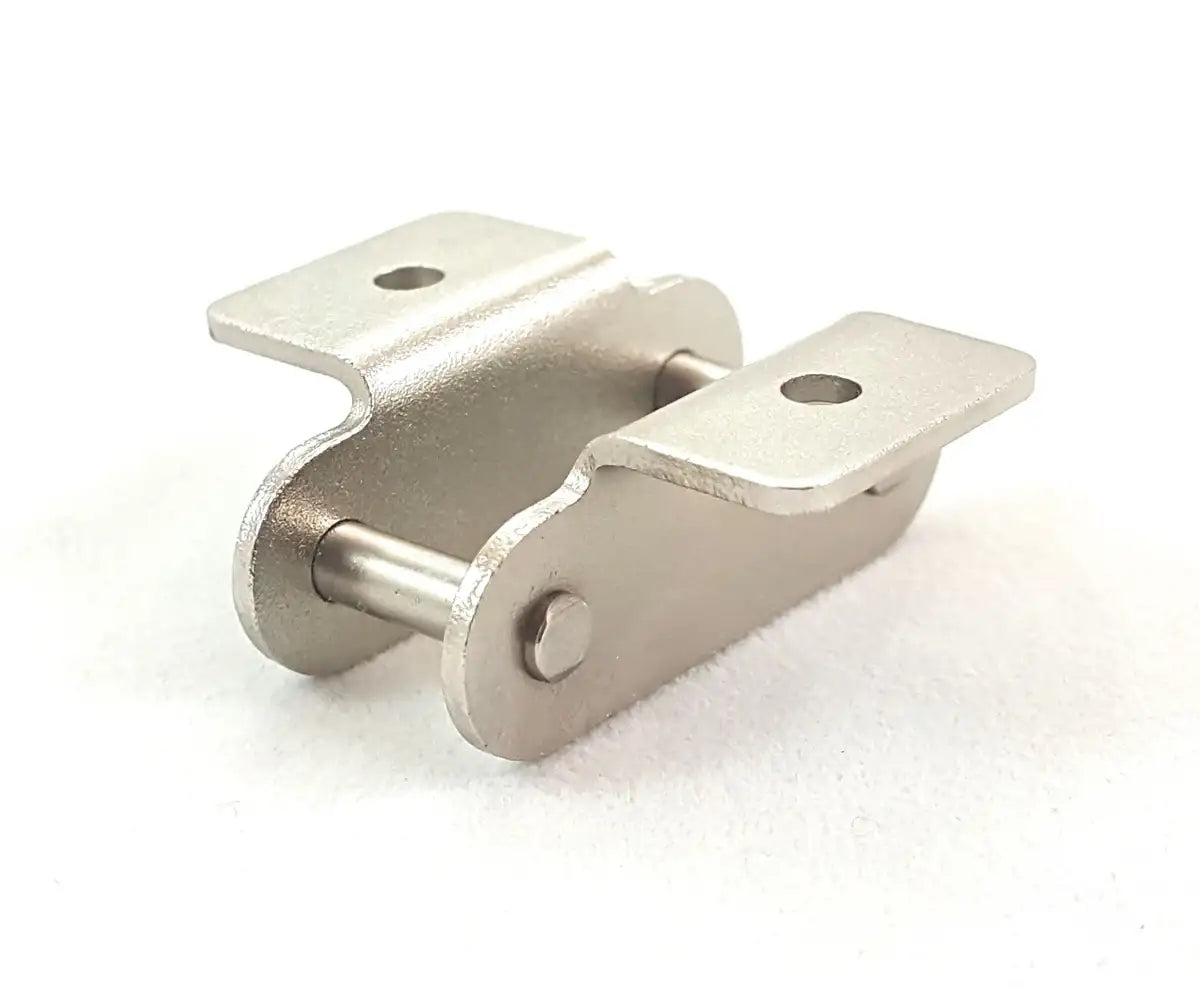

Iwis C2120H Nickel Plated K-1 Connecting Link / Master Link

Iwis C2120H Nickel Plated K-1 Connecting Link / Master Link

Note: Custom Cut to Length Chain Also Available
Product Code: I-C2120NP-K-1-CONNECTING-LINK
Shipping calculated at checkout.
Other Customers Viewed
Iwis C2120H Nickel Plated Roller Chain With K-1 Attachments
Iwis C2120H Nickel Plated Roller Chain With K-1 Attachments
Login
View full details
Description
Specification
IWIS C2120H Nickel Plated K-1 Attachment Connecting Link is apart of the Premium JWIS line up of IWIS brand chains. Nickel Plated K-1 Attachment connecting links are standardly supplied as spring-clip or cotter style and are a bent, two sides, one hole each tab attachment with a shiny, premium nickel plated finish to prevent corrosion. The components that go into this attachment link were nickel plated before assembly and then inspected to ensure a full coverage and a smooth surface for the longest working life possible and to prevent chemical attack along with stress cracking. Additionally the components are manufactured with only high-quality heat-treated and case-hardened steel with extreme precision and accuracy to ensure the best in class working life, fatigue, and overall durability. This C2120H nickel plated K-1 Attachment Connecting Link combines superb quality and the best in class German engineering with high strength components to create an attachment that will last long, preform greatly, and have extremely high strength. We supply IWIS C2120H Nickel Plated K-1 Attachment Connecting Links at really great prices and they are normally in-stock. Additionally if you're needing C2120H nickel plated roller chain with nickel plated K-1 attachments already assembled onto the chain we can do that in any configuration needed, and within an industry leading assembly time. This attachment fully meets all ANSI standards so it will assemble easily onto C2120H nickel plated roller chain and mesh correctly with ANSI C2120H sprockets. We also offer a full line of high quality ANSI C2120H sprockets and standard IWIS Brand C2120H Nickel Plated Roller Chain at really great prices. For more information or to get a quote on IWIS C2120H Nickel Plated K-1 Attachment Connecting Links please contact us and we will be happy to assist you!

Dimensions:

  • Attachment #: C2120H-NP K-1
  • Pitch (P): 3"
  • Width (E): 1"
  • Roller Diameter (D1): 0.88"
  • Pin Diameter (D2): 0.44"
  • Dimension (T): 0.22"
  • Dimension (F): 1.37"
  • Dimension (A1): 2.39"
  • Dimension (A2): 1.56"
  • Dimension (F3): 2.25"
  • Dimension (D3): ***PLEASE SPECIFY***
  • Dimension (G): 1.09"
  • Dimension (M): 1.13"


Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • Premium K-1 Attachment Connecting Link
  • Apart Of The JWIS Line From IWIS
  • Nickel Plated For Corrosion Resistance
  • Bent, Two Sides, One Hole Each Tab
  • Fully Meets All ANSI Standards
  • Heat-Treated & Case Hardened
  • Can Be Assembled In Any Configuration Needed
Featured image
  • Attachment #: C2120H-NP K-1
  • Pitch (P): 3"
  • Width (E): 1"
  • Roller Diameter (D1): 0.88"
  • Pin Diameter (D2): 0.44"
  • Dimension (T): 0.22"
  • Dimension (F): 1.37"
  • Dimension (A1): 2.39"
  • Dimension (A2): 1.56"
  • Dimension (F3): 2.25"
  • Dimension (D3): ***PLEASE SPECIFY***
  • Dimension (G): 1.09"
  • Dimension (M): 1.13"
