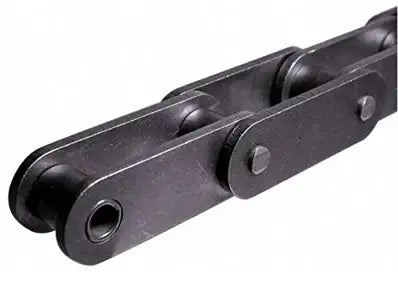

C2060 roller chain is a double pitch straight side plate chain that is commonly found in conveying applications. Double pitch chains are preferred by most OEMs and engineers when manufacturing a conveyor system because of the universal uses of the chain. It is high strength, light weight, and features flat surfaces to carry products. People use C2060 chain instead of C2060H roller chain when their application requires a chain that does not exceed a certain overall width. This chain has a 9,270LB ultimate tensile strength, 1-1/2" pitch, solid rollers, and heat-treated components. We keep this chain inventoried as 10ft boxes, 50ft reels, and 100ft reels.

C2060 Roller Chain Dimensions

• Chain Size: C2060
• Pitch (P): 1.500"
• Roller Width (W): 0.500"
• Roller Diameter (R): 0.469"
• Plate Height (H): 0.683"
• Plate Thickness (T): 0.093"
• Pin Diameter (D): 0.234"
• Chain Width (F): 1.172"
• Connecting Link Width (G): 1.248"
• Tensile Strength: 9,270 LBS
• Weight: 0.76 LBS/ FT

Important Note:
When looking for C2060 roller chain (photo below on the left) it is important, not to mix it up with C2062 roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2060".
VS.
