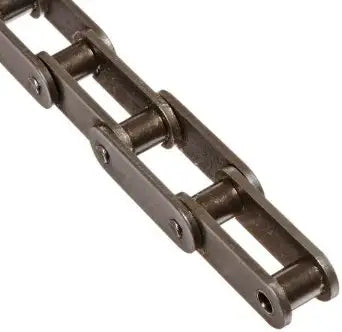

General Duty Plus C2040 Roller Chain - 10ft Box

General Duty Plus C2040 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$44.99
$44.99
In Stock
On Sale Sold out
Product Code: GDP-C2040-ROLLER-CHAIN
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
Made in USA C2040 Roller Chain Breaker
Made in USA C2040 Roller Chain Breaker
$99.99
Login
General Duty Plus C2040 Double Pitch Connecting (Master) Link
General Duty Plus C2040 Double Pitch Connecting (Master) Link
$2.99
Login
General Duty Plus C2040 Offset Link
General Duty Plus C2040 Offset Link
$4.99
Login
View full details
Description
Specification
General Duty Plus C2040 roller chain is manufactured to out-last and out-perform standard C2040 roller chains by being manufactured using higher precision components and higher quality components. This roller chain dimensionally fully meets all ANSI Standards so it will operate on standard C2040 sprockets just like other chains. C2040 chain typically comes in 10ft boxes including one connecting link each, however we do offer 50ft reels, 100ft reels, and specific cut to length strands per request. For more information or to submit a large-quantity quote please contact us and we will be happy to assist you!

Dimensions:

  • Chain Size: C2040
  • Pitch (P): 1.000"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.754"
  • Tensile Strength: 3,750 LBS
  • Weight: 0.34 LBS/ FT

Important Note:
When looking for C2040 roller chain (photo below on the left) it is important, not to mix it up with C2042 roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2040".
VS.



Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • High Quality Chain
  • Solid Rollers
  • Fully Meets All ANSI Standards
  • Double Pitch
  • Durable
  • Has Great Performance
Featured image
  • Chain Size: C2040
  • Pitch (P): 1.000"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.754"
  • Tensile Strength: 3,750 LBS
  • Weight: 0.34 LBS/ FT
