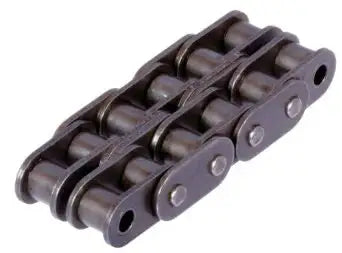

10B-2 Straight Sidebar Double Strand Roller Chain - 10ft Box

10B-2 Straight Sidebar Double Strand Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
Product Code: C10B-2-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
Made In USA 10B Chain Breaker | 10B Roller Chain Breaker
Made In USA 10B Chain Breaker | 10B Roller Chain Breaker
$99.99
Login
10B-2 Straight Sidebar Double Strand Connecting (Master) Link
10B-2 Straight Sidebar Double Strand Connecting (Master) Link
Login
View full details
Description
Specification
C10B-2 Straight Sidebar Double Strand Roller Chain
This 10B-2 Double Strand British Standard (Metric) straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ISO standard 10B-2 double strand sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. For pricing and availability please contact us.

Dimensions:

  • Chain Size: 10B-2 Straight Sidebar Roller Chain
  • Tensile Strength: 12,540lbs
  • Pitch (P): 0.625
  • Roller Width (W): 0.379
  • Roller Diameter (R): 0.400
  • Plate Height (H): 0.522
  • Plate Thickness (T1): 0.064
  • Plate Thickness (T2): 0.064
  • Pin Diameter (D): 0.200
  • Overall Width (F): 1.426
  • Weight Per Foot: 1.52 lbs/FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Size: 10B-2 British Standard (Metric) Double Strand Straight Sidebar Roller Chain
  • Ultimate Strength: 12,540lbs
  • Heat Treated For Increased Fatigue
  • Solid Rollers For Smooth Operation
  • Straight Sidebars Increase Strength, Working Life, and Fatigue
  • Runs On Standard Sprockets
  • High Strength & High Quality
Featured image
  • Chain Size: 10B-2 Straight Sidebar Roller Chain
  • Tensile Strength: 12,540lbs
  • Pitch (P): 0.625
  • Roller Width (W): 0.379
  • Roller Diameter (R): 0.400
  • Plate Height (H): 0.522
  • Plate Thickness (T1): 0.064
  • Plate Thickness (T2): 0.064
  • Pin Diameter (D): 0.200
  • Overall Width (F): 1.426
  • Weight Per Foot: 1.52 lbs/FT
