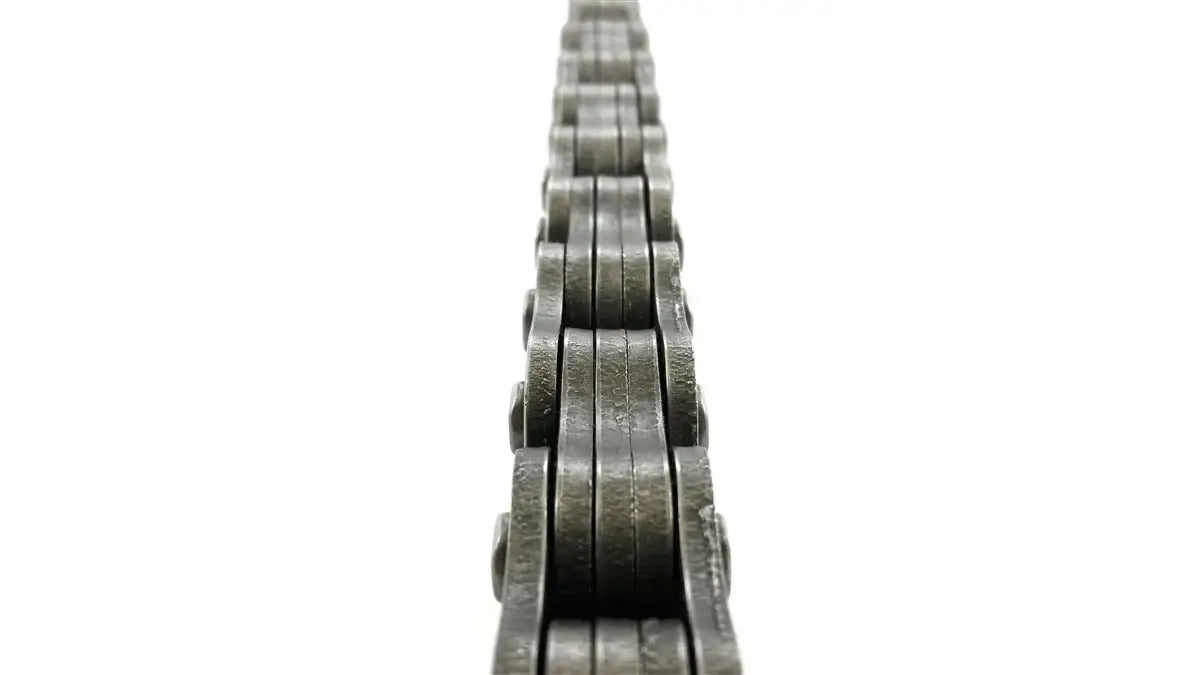

BL823 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL823 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 2X3 lacing and is supplied as 10ft boxes, reels (50ft - 250ft), and cut to length sections upon request.
Standard Series Specifications:
![](https://www.usarollerchain.com/v/vspfiles/assets/images/2X3_D.png)
- Chain Size: BL823
- Pitch (P): 1.000"
- Pin Diameter (A): 0.375"
- Plate thickness (B): 0.156"
- Plate Height (C): 0.949"
- Pin Length (D): 0.953"
- Chain Weight: 2.15 LBS/ Ft
- Tensile Strength: 24,300 LBS
For customers needing something a little stronger, we also stock a premium (Premier Series) BL823 Leaf chain. The primary differences between the standard series and the Premier Series of leaf chains is that the premier series offers published working loads on most sizes, higher precision components, shot peened plates, heat-treated plates and pins, and is the best quality leaf chain that we offer. One common misconception in the industry is that higher tensile strengths mean higher working loads, this is not always true when taking performance factors into consideration.
Premier Series Specifications:
![](https://www.usarollerchain.com/v/vspfiles/assets/images/2X3_D.png)
- Chain Size: BL823
- Pitch (P): 1.000"
- Pin Diameter (A): 0.375"
- Plate thickness (B): 0.156"
- Plate Height (C): 0.949"
- Pin Length (D): 0.953"
- Chain Weight: 2.15 LBS/ Ft
- Minimum Tensile Strength: 23,100 LBS
- Working Load: 3,800 LBS
This BL series leaf chain is compatible with the following part numbers:
Manufacturer
|
Part Numbers
|
Cat Lift Trucks
|
2I6516, A000001218
|
Clark
|
1802112, 1802113, 1802114, 1324205, 1802115, BL823, 1803139, 1803138, RLBL823
|
Daewoo / Doosan
|
BL823CTL, BL823050, BL823100, BL823020, BL823015, BL823010, BL823025
|
Hyster
|
3041123, 3132996, 3133001, 3132998, 3133000, 3132999
|
Intrupa
|
BL823
|
Mitsubishi Forklifts
|
2I6516
|
Nissan
|
3150255, BL823H
|
SMH
|
AFBL823F, CHBL82315, CHBL823100, CHBL823, CHBL82310, 800136165, CHBL82320, CHBL82325, CHBL82350, 800112233
|
Toyota
|
90638F982571
|
Yale
|
220024599, 220024598, 220024596, 220024600, 220024601, 220006102
|
JLG
|
1260234, 1260238, 1260045
|
Balkancar
|
BL823
|
TCM
|
BL823
|
Renold
|
1400719
|
Please note that this table is not a replacement recommendation. The stock chain rolls are not a direct replacement for the part numbers because they have a standard length different from that of the specific part number. Therefore, always take precise measurements of your chain, count the exact number of links, and determine if you need additional accessories such as clevis pins or connecting links.
USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL823 Leaf Chain please contact us and we will be happy to assist you.
Phone: (407) 347-3519 Email: sales@usarollerchain.com
