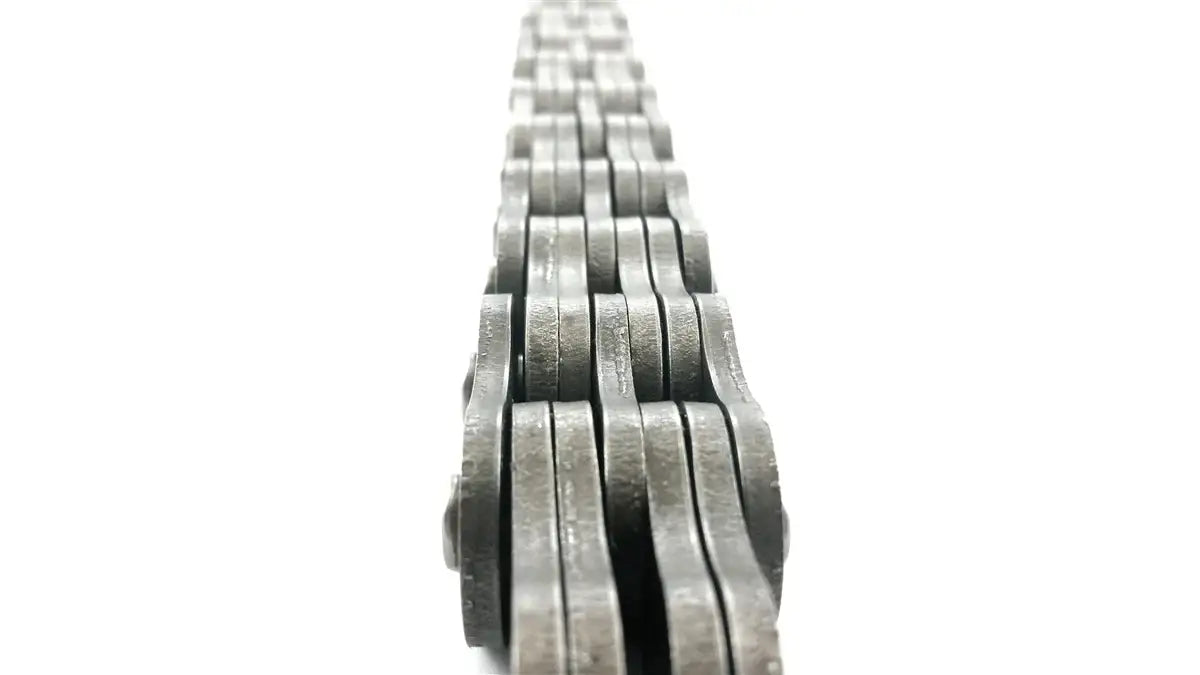

BL534 Leaf Chain | ANSI BL 3X4 Chain 0.625" Pitch - 10ft Box

BL534 Leaf Chain | ANSI BL 3X4 Chain 0.625" Pitch - 10ft Box

Note: Custom Cut to Length Chain Also Available
$109.99
$109.99
In Stock
On Sale Sold out
Product Code: BL534-CHAIN
In Stock
Shipping calculated at checkout.

Login to Request a Quote

View full details
Description
Specification
BL534 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL534 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 3X4 lacing and is supplied as 10ft boxes, reels (50ft - 250ft), and cut to length sections upon request.

Standard Series Specifications:
  • Chain Size: BL534
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 0.791"
  • Chain Weight: 1.140 LBS/ Ft
  • Tensile Strength: 14,700 LBS

For customers needing something a little stronger, we also stock a premium (Premier Series) BL534 Leaf chain. The primary differences between the standard series and the Premier Series of leaf chains is that the premier series offers published working loads on most sizes, higher precision components, shot peened plates, heat-treated plates and pins, and is the best quality leaf chain that we offer. One common misconception in the industry is that higher tensile strengths mean higher working loads, this is not always true when taking performance factors into consideration.

Premier Series Specifications:
  • Chain Size: BL534
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 0.791"
  • Chain Weight: 1.140 LBS/ Ft
  • Minimum Tensile Strength: 13,200 LBS
  • Working Load: 1,914 LBS

This BL series leaf chain is compatible with the following part numbers:

Manufacturer

Part Numbers

Atlet

59420BL53425, 59420L2600, 59420L2601, 59420L2602, 59420L2606, 59420L2607, 59420L2608, 59420L2609, 59420L2616, 59420L2618, 59420L2619, 59420L7401, 59420L7405, 59420L7603

Barrett

59420BL53425, 59420L2600, 59420L2601, 59420L2602, 59420L2606, 59420L2607, 59420L2608, 59420L2609, 59420L2616, 59420L2618, 59420L2619, 59420L7401, 59420L7405, 59420BL534

Big Joe

402034

Cascade

C678750, C686929, 686929, C686932, 686932, 687013, C687013, 678750

Cat Lift Trucks

A000001216, 2I6508

Clark

BL534, RLBL534

Crown

83633, 83633014, 83633013, 83633014, 83633011, 83633012, 8363309, 836339, 83633009, 83633011, 83633008, 83633013, 83633008, 836339, 83633, 8363309, 83633012, 83633009

Daewoo / Doosan

BL534010, BL534015, BL534050, BL534CTL, BL534025, BL534100, BL534020

Hyster

3041121, 840010, 840862, 3016811, 840010, 840862

Intrupa

190BL534, BL534

Kalmar AC

59420L2617, 59420L7603, 59420L2607, 59420L7308, 59420L7405, 59420L2603, 59420L2619, 59420L2606, CC686932, 59420L2604, 59420L2608, 59420L2618, 59420L2610, 59420L2601, 59420L2602, CC687013, CC686929, 59420L2612, 59420L2605, 59420L2609, 59420L2616, 59420L2600, 59420L7401, 8769761, CC678750

Komatsu

59420L7308, 59420L2603, 59420L2607, 59420L2610, 59420L2601, CC687013, CC686929, 59420L2616, 59420L2604, 59420L2602, 686929, 59420L2619, 59420L2600, 59420L2606, 687013, 59420L2608, 59420L7401, 59420L2605, 59420L2617, 59420L7603, CC686932, 59420L2618, 686932, 59420L2612, 59420L7405, 59420L2609, 678750, 8769761

Lift Technologies Inc

687013, 678750, 686929, 686932

Linde/Baker

KMCC686932, KMCC686929, KMCC687013

LPM

190BL534

Mitsubishi Forklifts

2I6508

Nissan

686932, 687013, 3150170, 59420BL534, 59420BL53425, 59420BL53450, 59720BL534, BL534H, OS26589, 59420L2600, 59420L2601, 59420L2602, 59420L2603, 59420L2604, 59420L2605, 59420L2606, 59420L2607, 59420L2608, 59420L2609, 59420L2610, 59420L2612, 59420L2616, 59420L2617, 59420L2618, 59420L2619, 59420L7308, 59420L7401, 59420L7405, 59420L7603, 678750, 686929

NYK

BL534A, BL534, 3144003300, 403305001

Raymond

681020100, 681020

Schaeff

103556

SMH

SYCHBL53415, AFBL534F, CHBL53410, 800111889, CHBL534100, CHBL534, CHBL534BULK, CHBL53415, CHBL53425, CHBL53450

TCM

N59420L2600, 59420L2604, 59420L2601, 59420L2618, N59420L2603, N59420L7405, N59420L2604, 59420L7401, N59420L7308, 59420L2605, 59420L2610, 59420L2608, N59420L2616, N59420L2605, N59420L2601, N59420L2606, 59420L2617, 59420L7405, N59420L2612, N59420L2608, N59420L2609, N59420L2602, N59420L2617, N59420L2610, 59420L2612, 59420L2609, 59420L2606, N59420L7603, 59420L2602, 59420L7308, 59420L7603, N59420L7401, 59420L2616, N59420L2619, N59420L2618, 59420L2607, N59420L2607, 59420L2619, 59420L2600, 59420L2603, 59420BL53425, 59420BL534

Toyota

969000515971, 6310214071, 6310614300, 6310313050, 9690005123, 90630U509371, 969000509371, 969000510771, 90630U519371, 9690005079, 6310412000, 90630U5089, 6310312000, 90631U5133, 6320214370, 969000506171, 6310314300, 6310213000, 9690005107, 9690005121, 90630U5139, 6310113020, 9690005159, 969000511171, 90630U517571, 9690006163, 90630U5175, 90630U5133, 90630U510771, 90630U515771, 90630U5225, 6310414370, 6310413000, 6320114370, 9690005225, 6310613020, 90630U512771, 969000512371, 90630U5163, 6310711120, 90630U5061, 9690005127, 969000509571, 90630U5069, 6310713000, 969000508971, 6301114050, 9690005175, 6301112000, 9690005069, 6310912000, 6310511120, 6310713050, 6310314071, 6310414071, 6310514050, 6301111120, 6310514300, 969000511771, 9690005207, 6310111120, 90630U509771, 6310414440, 90631U513371, 63101U1020, 6320314370, 9690005143, 9690005189, 6310814440, 9690005089, 90630U5137, 969000512571, 6310314440, 6310214300, 90631U5145, 6310113030, 90630U507971, 6320813020, 90630U512371, 90631U511171, 969000509771, 6310613000, 6310414350, 90631U512371, 90630U5123, 969000522571, 6310214050, 90631U514571, 969000518971, 90630U5189, 9690005075, 90631U5107, 90630U5221, 6320713020, 6310514440, 90631U510771, 9690005117, 969000509171, 6310714050, 90630U5157, 9690005221, 6320613020, 6310513020, 6310414300, 90631U5097, 6310712000, 6320313020, 90630U5129, 969000513771, 90630U506171, 6310313000, 90630U5127, 9690005111, 90630U5059, 6301113050, 6310614050, 969000508171, 6301114440, 9690005093, 9690005137, 90630U512171, 6310914050, 90631U5161, 90630U514371, 9690005139, 9690005193, 6310311120, 6310713020, 6310213020, 6310614370, 6320414370, 90630U5125, 9690005101, 969000616371, 6310114440, 969000512971, 63103U1010, 90631U5123, 63101U102071, 90630U512571, 9690005081, 90631U511771, 90630U522171, 90630U508571, 6310913000, 6310413050, 90638F982171, 6310113050, 969000514371, 969000515771, 90630U513971, 6310414050, 6301113000, 6310513000, 969000510171, 90630U5121, 90630U5093, 6310714300, 6310212000, 9690005085, 969000506971, 969000513371, 90630U518971, 9690005133, 6320513020, 6320913020, 969000513971, 90631U509771, 9690005091, 6310814050, 90630U512971, 90631U5111, 969000512171, 90630U520771, 969000512771, 90630U5081, 6320614370, 6310314050, 9690005157, 6310813000, 9690005163, 969000516371, 90630U5159, 9690005097, 9690005061, 9690005125, 6310114050, 6310114300, 6310411120, 6310911120, 6310313020, 632061219071, 6310611120, 6310113000, 90630U5207, 90630U522571, 6310213030, 969000517571, 90630U616371, 6310812000, 90630U515971, 969000508571, 90630U506971, 9690005095, 90630U516371, 969000519371, 6310613050, 6310614440, 969000520771, 6310914440, 631092275071, 90630U508971, 6310714440, 969000507971, 6310914350, 90630U5085, 90630U513371, 90631U5117, 90631U516171, 6310814071, 90630U513771, 969000522171, 90630U5097, 90630U508171, 9690005129, 6310811120, 90630U505971, 6310513050, 6310213050, 90630U5143, 63103U101071, 90630U5079, 969000507571, 90630U5193, 630111112071, 630111200071, 630111300071, 630111305071, 630111405071, 630111444071, 631011112071, 631011300071, 631011302071, 631011303071, 631011305071, 631011405071, 631011430071, 631011444071, 631021200071, 631021300071, 631021302071, 631021303071, 631021305071, 631021405071, 631021407171, 631021430071, 631031112071, 631031200071, 631031300071, 631031302071, 631031305071, 631031405071, 631031407171, 631031430071, 631031444071, 631041112071, 631041200071, 631041300071, 631041305071, 631041405071, 631041407171, 631041430071, 631041435071, 631041437071, 631041444071, 631051112071, 631051300071, 631051302071, 631051305071, 631051405071, 631051430071, 631051444071, 631061112071, 631061300071, 631061302071, 631061305071, 631061405071, 631061430071, 631061437071, 631061444071, 631071112071, 631071200071, 631071300071, 631071302071, 631071305071, 631071405071, 631071430071, 631071444071, 631081112071, 631081200071, 631081300071, 631081405071, 631081407171, 631081444071, 631091112071, 631091200071, 631091300071, 631091405071, 631091435071, 631091444071, 632011437071, 632021437071, 632031302071, 632031437071, 632041437071, 632051302071, 632061302071, 632061437071, 632071302071, 632081302071, 632091302071, 632089TF0871, 96900-05219-71

Tusk

CC686932, 59420L2605, 59420L2610, 59420L2602, 59420L7401, 59420L2618, 59420L2607, 59420L2616, 59420L7308, CC686929, 59420L2600, 59420L7603, CC687013, 59420L2606, 59420L2612, 59420L2609, 59420L2608, 59420L2619, 59420L2603, 59420L7405, 59420L2617, 59420L2601, 59420L2604, 8769761, CC678750

Yale

150112016, 220006103

JLG

1260331, 1260332

Renold

1400708

Please note that this table is not a replacement recommendation. The stock chain rolls are not a direct replacement for the part numbers because they have a standard length different from that of the specific part number. Therefore, always take precise measurements of your chain, count the exact number of links, and determine if you need additional accessories such as clevis pins or connecting links.


USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL534 Leaf Chain please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!



Feature

  • Fully Meets ANSI Standards
  • Extremely Heavy-Duty
  • Heat-Treated Components
  • High Strength
  • 3X4 Lacing
Featured image
Standard Series Specifications:

  • Chain Size: BL534
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 0.791"
  • Chain Weight: 1.140 LBS/ Ft
  • Tensile Strength: 14,700 LBS

Premier Series Specifications:

  • Chain Size: BL534
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 0.791"
  • Chain Weight: 1.140 LBS/ Ft
  • Minimum Tensile Strength: 13,200 LBS
  • Working Load: 1,914 LBS
