BL446 Leaf Chain | ANSI BL 4X6 Chain 0.5" Pitch - 10ft Box

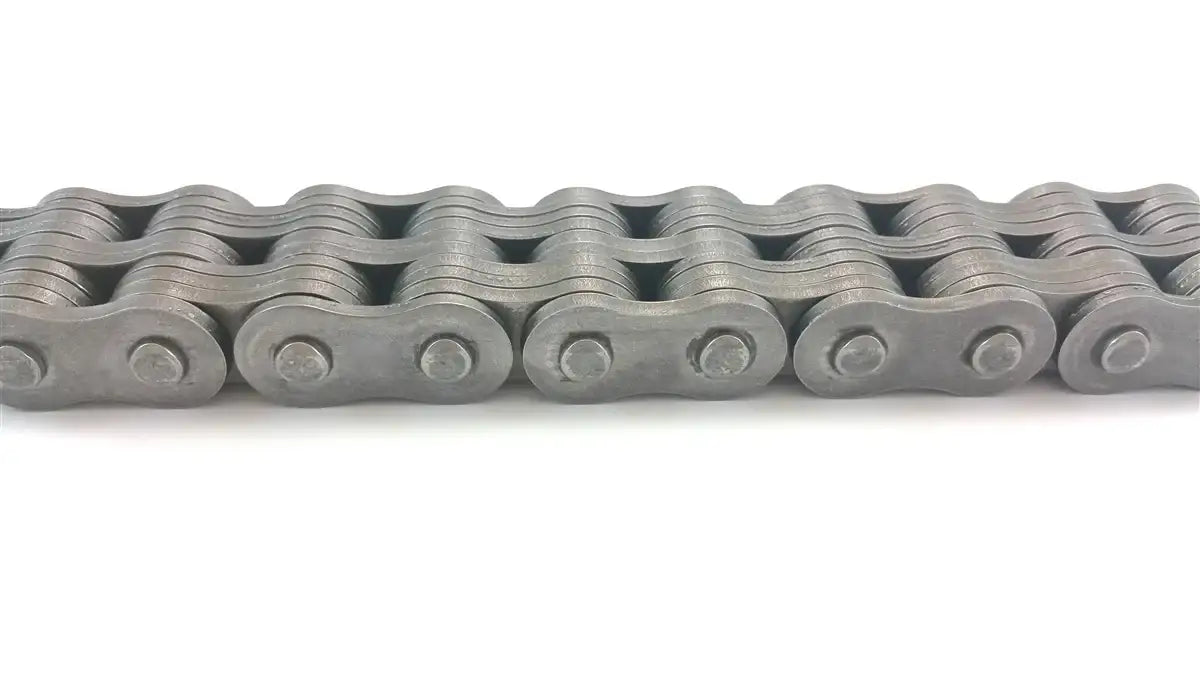

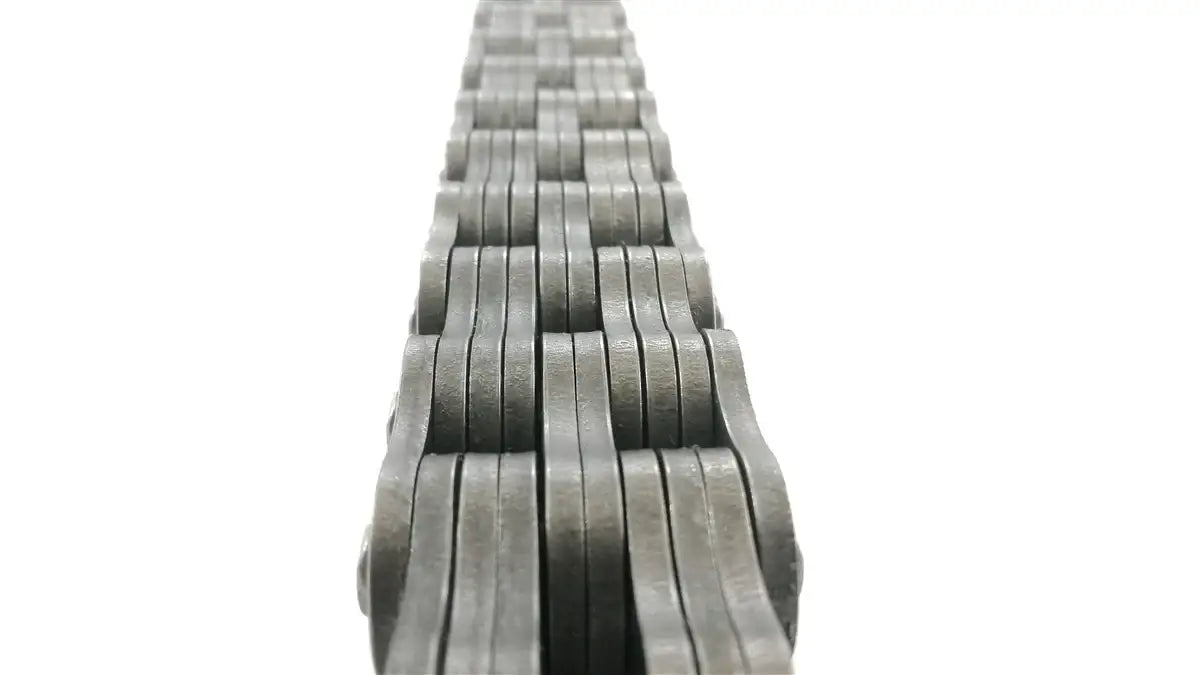

BL446 Leaf Chain

Alternative Views:

Our Price: $149.99

Note: Displayed Pricing is For Standard Series Chain Supplied as a 10ft Box

Availability: In-Stock
Product Code: BL446-CHAIN

Qty:

Description

Technical Specs

BL446 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL446 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 4X6 lacing and is supplied as 10ft boxes, reels (50ft - 250ft), and cut to length sections upon request.

Standard Series Specifications:

Chain Size: BL446
Pitch (P): 0.500"
Pin Diameter (A): 0.200"
Plate thickness (B): 0.080"
Plate Height (C): 0.472"
Pin Length (D): 0.929"
Chain Weight: 1.11 LBS/ Ft
Average Tensile Strength: 11,000 LBS

For customers needing something a little stronger, we also stock a premium (Premier Series) BL446 Leaf chain. The primary differences between the standard series and the Premier Series of leaf chains is that the premier series offers published working loads on most sizes, higher precision components, shot peened plates, heat-treated plates and pins, and is the best quality leaf chain that we offer. One common misconception in the industry is that higher tensile strengths mean higher working loads, this is not always true when taking performance factors into consideration.

Premier Series Specifications:

Chain Size: BL446
Pitch (P): 0.500"
Pin Diameter (A): 0.200"
Plate thickness (B): 0.080"
Plate Height (C): 0.472"
Pin Length (D): 0.929"
Chain Weight: 1.11 LBS/ Ft
Minimum Tensile Strength: 10,600 LBS
Working Load: 1,300 LBS

This BL series leaf chain is compatible with the following part numbers:

Manufacturer	Part Numbers
Barrett	5760000
Cat Lift Trucks	A000001250, 2I6506
Clark	1802073, 1802075, BL446, 669990, 1802074, 1802072
Daewoo / Doosan	BL446025, BL446010, BL446020, BL446100, BL446CTL, BL446015, BL446050
Hyster	307128, 89859, 271996, 215694, 144865, 3054066, 291856, 97578, 271991, 89854, 3016663, 89850, 89852, 3132987, 307128, 138329, 149345, 277742, 154551, 271994, 144867, 215559, 97578, 89861, 89859, 89855, 89854, 215692, 148066, 144866, 89851, 89858, 89862, 89850, 89853, 89861, 89850, 89854, 89852, 215559, 307129, 215380, 277743, 215692, 149378, 271992, 271995, 149345, 149392, 929725, 215382, 291857, 291856, 89858, 89855, 89857, 148049, 929725, 291855, 271994, 89856, 148066, 271992, 215382, 144866, 138329, 215691, 89849, 89862, 89858, 89857, 144865, 215694, 271996, 277744, 89855, 215381, 215380, 89851, 215381, 89852, 149364, 89856, 89849, 3132988, 3132986, 89861, 271990, 148049, 89853, 89859, 215691, 149364, 3132989, 149378, 97578, 89851, 307129, 89857, 144867, 149392, 291855, 89862, 89853, 291857, 271995, 271990, 277744, 277743, 271991, 277742, 154551, 89849, 89856
Intrupa	HY9198, BL446
Linde/Baker	2257
Mitsubishi Forklifts	2I6506
Nissan	3150153, BL446H
SMH	CHBL446, CHBL44615, CHBL44610, AFBL446F, CHBL44625, 800136153, CHBL44620
Yale	220024589, 220024586, 220024588, 220024587, 220006112, 220009112
JLG	1260237, 1260233
Renold	1400705

Please note that this table is not a replacement recommendation. The stock chain rolls are not a direct replacement for the part numbers because they have a standard length different from that of the specific part number. Therefore, always take precise measurements of your chain, count the exact number of links, and determine if you need additional accessories such as clevis pins or connecting links.

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL446 Leaf Chain please contact us and we will be happy to assist you.
