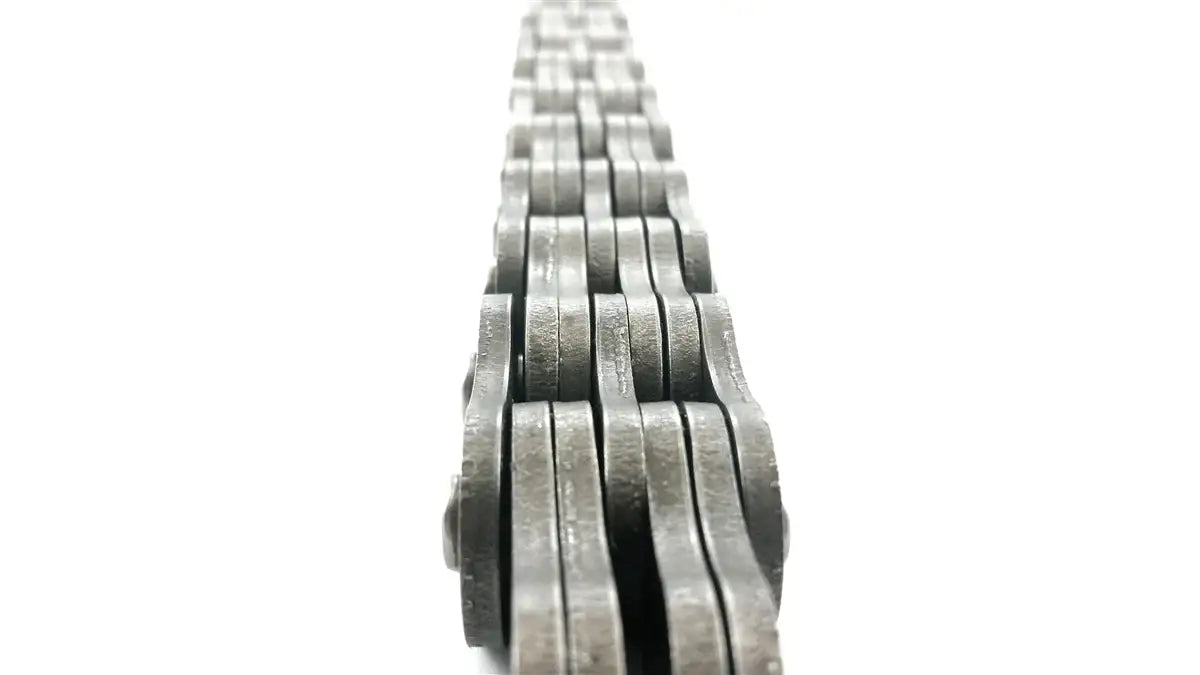

BL2034 Leaf Chain

Alternative Views:

Note: Se habla espanol

Availability: Typically In-Stock
Product Code: BL2034-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

BL2034 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL2034 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 3X4 lacing and is supplied as 10ft boxes, reels (25ft - 100ft), and cut to length sections upon request.

Standard Series Specifications:

Chain Size: BL2034
Pitch (P): 2.500"
Pin Diameter (A): 0.938"
Plate thickness (B): 0.391"
Plate Height (C): 2.376"
Pin Length (D): 3.217"
Chain Weight: 18.62 LBS/ Ft
Tensile Strength: 153,000 LBS

While not as widely adopted as other BL series chains, BL2034 leaf chain nevertheless proves capable of meeting challenging hoisting, lifting, and material handling demands. This chain type is suitable for port container and cargo handling equipment like lift trucks, chassis flippers, loaded container handlers, saddle trucks, side picks, top lifts, and mobile cranes.

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL2034 Leaf Chain please contact us and we will be happy to assist you.
