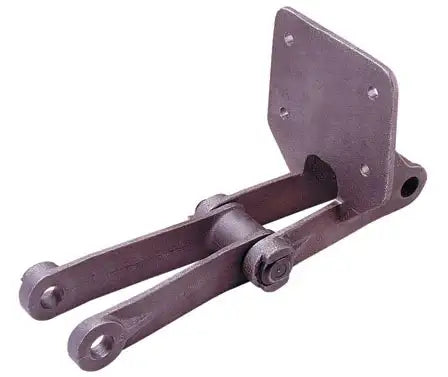

• 720S Pintle Chain Cast 720S Pintle Chain
1 1

720S Pintle Chain

720S Pintle Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 720S-PINTLE-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
720S A53 Attachment
720S A53 Attachment
Login
720S AM116 Attachment
720S AM116 Attachment
Login
720S F2 Attachment
720S F2 Attachment
Login
View full details
Description
Specification
720S Pintle Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight, and features an average ultimate strength of 40,000 LBS. It is apart of the 700-Class series pintle chain and is a common in-stock item. USA Roller Chain has a premium 720S pintle chain in either riveted or cottered construction. Something special about this chain is the T-Head pins that eliminate pin rotation while at the same time prevent the entrance of dirt and or grit. As a drive chain, 720S pintle chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for 720S pintle chain are: A2, A53, AM116, F2, F226, F228, K2, M1, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

Besides the Premium 720S Pintle Chain we also offer a full line of sprockets, flights, wear materials, drive systems, and more. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on 720S pintle chain or for more information please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: 720S Pintle
  • Pitch: 6.000"
  • Links Per 10ft: 20
  • Weight: 5.2 LBS/ FT
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Recommended Working Load: 4,250 LBS
  • Maximum Allowable Sprocket Face (A): 1.12"
  • Overall Width Cottered (C2): 3.81"
  • Overall Width Riveted (C1): 3.69"
  • Pin diameter (E): 0.750"
  • Sidebar Height (H): 1.56"
  • Barrel Diameter (D): 1.44"
  • Head of Pin To Center Line (J): 1.75"
  • End of Pin to Center Line Cottered (K): 2.06"
  • End of Pin to Center Line Riveted (L): 1.94"
  • Bearing Length (X): 1.88"

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium 720S Pintle Chain
  • Typically In-Stock
  • Wide Range of Attachments and Sprockets Available
  • Commonly Found in Wastewater Applications
Featured image
  • Chain Size: 720S Pintle
  • Pitch: 6.000"
  • Links Per 10ft: 20
  • Weight: 5.2 LBS/ FT
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Recommended Working Load: 4,250 LBS
  • Maximum Allowable Sprocket Face (A): 1.12"
  • Overall Width Cottered (C2): 3.81"
  • Overall Width Riveted (C1): 3.69"
  • Pin diameter (E): 0.750"
  • Sidebar Height (H): 1.56"
  • Barrel Diameter (D): 1.44"
  • Head of Pin To Center Line (J): 1.75"
  • End of Pin to Center Line Cottered (K): 2.06"
  • End of Pin to Center Line Riveted (L): 1.94"
  • Bearing Length (X): 1.88"
