Premium #60 Low Noise Roller Chain

Premium #60 Low Noise Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 60SLN-LOW-NOISE-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
Premium #60 Low Noise Roller Chain Connecting (Master) Link
Premium #60 Low Noise Roller Chain Connecting (Master) Link
Login
Premium #60 Low Noise Offset Link
Premium #60 Low Noise Offset Link
Login
View full details
Description
Specification

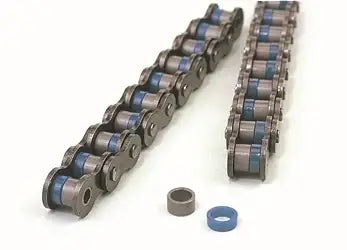

This #60 low noise roller chain is also commonly referred to as 60 silent roller chain, and fully meets all ANSI Standards. Low noise roller chains are in a growing state of demand due to the need for lower equipment noise. These chains are commonly found in printing, packing, engineering, and drive applications where a lower noise environment is needed. This roller chain achieves the low noise effect because of the two-piece roller construction of the chain, this greatly decreases the audible shock when the chain is engaging with the sprocket. #60 low noise roller chain produces a silencing effect as much as 10DB and is a high-performance premium quality roller chain. Something else that is notable about this chain is that it will run on standard #60 roller chain sprockets. For more information or to get a quote on super low noise roller chain please contact us and we will be happy to assist you!

Dimensions:

  • Chain #: 60SLN
  • Pitch (P): 0.750"
  • Roller Link Width (W): 0.500"
  • Roller Diameter (D1): 0.455"
  • Roller Diameter (D2): 0.478"
  • Pin Diameter (O): 0.235"
  • Pin Length (E): 1.000"
  • CL Pin Length (F): 1.059"
  • Plate Thickness (T): 0.094"
  • Plate Height (H): 0.713"
  • Tensile Strength: 9,900 LBS
  • Working Load Rating: 2,090 LBS
  • Weight Per Foot: 0.959 LBS



Spring Style Rollers Also Available!




Noise Reduction Efficiency Chart:



Horse Power Rating Table:




Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • Super Low Noise
  • Premium Roller Chain
  • Meets ANSI Standards
  • Heat-Treated Components
  • High Performance Chain
Featured image
  • Chain #: 60SLN
  • Pitch (P): 0.750"
  • Roller Link Width (W): 0.500"
  • Roller Diameter (D1): 0.455"
  • Roller Diameter (D2): 0.478"
  • Pin Diameter (O): 0.235"
  • Pin Length (E): 1.000"
  • CL Pin Length (F): 1.059"
  • Plate Thickness (T): 0.094"
  • Plate Height (H): 0.713"
  • Tensile Strength: 9,900 LBS
  • Working Load Rating: 2,090 LBS
  • Weight Per Foot: 0.959 LBS
