• #60-3 Triple Strand Roller Chain
1 1

General Duty Plus #60-3 Triple Strand Roller Chain - 10ft Box

General Duty Plus #60-3 Triple Strand Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$174.99
$174.99
In Stock
On Sale Sold out
Product Code: GDP-60-3-10FT
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
Spray On Chain Lube - 11oz Can
Spray On Chain Lube - 11oz Can
$54.99
Login
General Duty Plus #60-3 Triple Strand Connecting (Master) Link
General Duty Plus #60-3 Triple Strand Connecting (Master) Link
$4.99
Login
General Duty Plus #60-3 Triple Strand Offset Link
General Duty Plus #60-3 Triple Strand Offset Link
$7.99
Login
View full details
Description
Specification

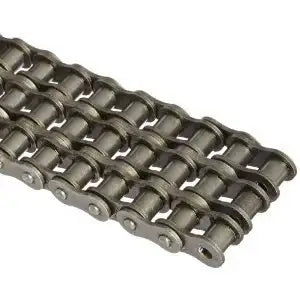

General Duty Plus #60-3 Triple Strand Roller Chain

This #60-3 triple strand roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #60-3 triple strand roller chain has a tensile strength of 27,500lbs and is commonly supplied as 10ft boxes, but alternate lengths are available per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #60-3 Triple Strand Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: #60-3
  • Note: All Dimensions Are Given In Inches
  • Tensile Strength: 27,500lbs
  • Pitch (P): 0.750"
  • Roller Width (W): 0.500"
  • Roller Diameter (D): 0.469"
  • Overall Chain Width: 2.794"
  • Link Plate Height (H): 0.712"
  • Link Plate Thickness (T): 0.093"
  • Pin Diameter (E): 0.234"
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • General Duty Plus Quality
  • Triple Strand
  • Tensile Strength: 27,500lbs
  • Constructed of Hardened Steel For Increased Strength & Performance
  • Shot Peened For Increased Fatigue & Durability
  • Pre-stretched For Higher Ware Resistance
  • Solid Rollers For Better Performance & Overall Operation
  • Fully Meets All ANSI Standards
Featured image
  • Chain Size: #60-3
  • Note: All Dimensions Are Given In Inches
  • Tensile Strength: 27,500lbs
  • Pitch (P): 0.750"
  • Roller Width (W): 0.500"
  • Roller Diameter (D): 0.469"
  • Overall Chain Width: 2.794"
  • Link Plate Height (H): 0.712"
  • Link Plate Thickness (T): 0.093"
  • Pin Diameter (E): 0.234"
  • Specifications Met: ANSI Standards
