428 Roller Chain - 10ft Box
428 Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: 428-CHAIN-10FT
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

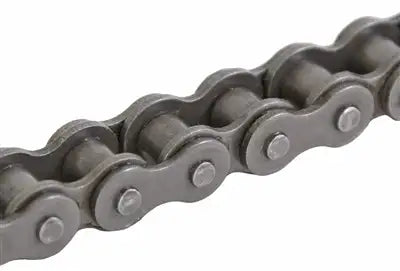

428 roller chain is a non-standard series roller chain that is a common in stock item for USA Roller Chain. What sets this chain apart from others is that it is manufactured with solid rollers, and uses heat-treated components for better performance and a higher strength. This 428 roller chain also is supplied with a high-quality lubricant for additional working life. We stock this chain in 10ft boxes, 50ft reels, 100ft reels, 250ft reels, and cut to length strands upon request. Besides 428 roller chain, we also have a full line of sprockets, bearings, motors, reducers, sensors, and more. For additional information or to get a formal quote please contact us and one of our customer service representatives will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
Dimensions:
- Chain Size: 428
- Pitch (P): 0.500"
- Roller Width (W): 0.312"
- Roller Diameter (D): 0.335"
- Overall Chain Width: 0.722"
- Overall Connecting Link Width (F): 0.722"
- Link Plate Height (H): 0.456"
- Link Plate Thickness (T): 0.058"
- Pin Diameter (E): 0.175"
- Average Ultimate Strength: 4,080 LBS
- Weight Per Ft: 0.44 LBS
Email:
Click Here To See Our Other Products!
Feature
- High Quality Roller Chain
- Extremely Durable
- High Performance
- Extended Working Life
- Heat-Treated Components
- Chain Size: 428
- Pitch (P): 0.500"
- Roller Width (W): 0.312"
- Roller Diameter (D): 0.335"
- Overall Chain Width: 0.722"
- Overall Connecting Link Width (F): 0.722"
- Link Plate Height (H): 0.456"
- Link Plate Thickness (T): 0.058"
- Pin Diameter (E): 0.175"
- Average Ultimate Strength: 4,080 LBS
- Weight Per Ft: 0.44 LBS
