40H30 Sprocket (Taper Bushed)

40H30 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$40.96
$40.96
In Stock
On Sale Sold out
Product Code: 40H30-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
#40 Roller Chain - 10ft Box | ANSI 40 Chain
#40 Roller Chain - 10ft Box | ANSI 40 Chain
Login
General Duty Plus #40 Roller Chain - 10ft Box
General Duty Plus #40 Roller Chain - 10ft Box
$64.99
Login
Premium #40 Roller Chain - 10ft Box | Premier Series Chain
Premium #40 Roller Chain - 10ft Box | Premier Series Chain
$79.99
Login
View full details
Description
Specification

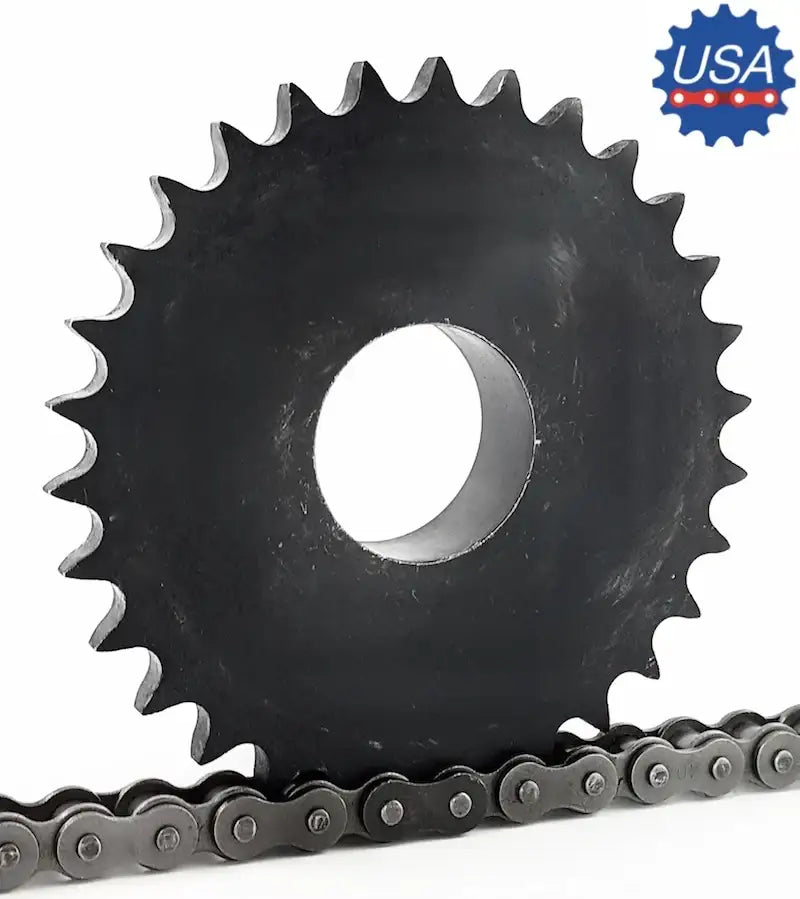

This 40H30 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a H bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 40H30 sprockets are bored to accept a H type taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

Dimensions:

  • Sprocket Size: 40H30
  • Tooth Count: 30
  • Bushing Type: H
  • Outside Diameter: 5.060"
  • Pitch Diameter: 4.783"
  • Sprocket Type: 3
  • Dimension (OL): 1-1/2"
  • Dimension (L): 1-1/4"
  • Dimension (C): 1/16"
  • Dimension (H): 2-1/2"
  • Dimension (P): 1-1/32"
  • Dimension (T): 0.284"
  • Sprocket Weight: 1.6 LBS
  • Weight With Hub: 2.4 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Manufactured Using High-Quality Steel
  • Fully Meets ANSI Standards
  • Black Oxide Coated
  • Interchangeable With Other Manufactures
  • Extremely Durable and High-Performance
Featured image
  • Sprocket Size: 40H30
  • Tooth Count: 30
  • Bushing Type: H
  • Outside Diameter: 5.060"
  • Pitch Diameter: 4.783"
  • Sprocket Type: 3
  • Dimension (OL): 1-1/2"
  • Dimension (L): 1-1/4"
  • Dimension (C): 1/16"
  • Dimension (H): 2-1/2"
  • Dimension (P): 1-1/32"
  • Dimension (T): 0.284"
  • Sprocket Weight: 1.6 LBS
  • Weight With Hub: 2.4 LBS
