140BTB12 Sprocket (Taper Bushed)
140BTB12 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
Regular price
$246.99
$246.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: 140BTB12-SPROCKET
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

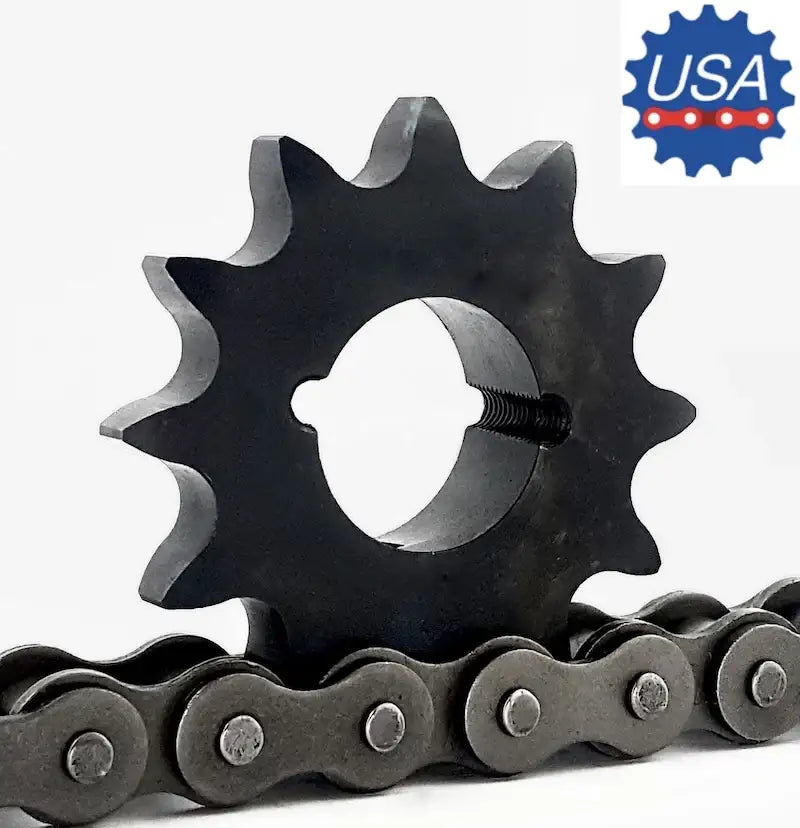

This 140BTB12 sprocket is a durable, high quality, and precision sprocket with 12 hardened teeth that is manufactured to accept a 2517 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #140 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 140BTB12 sprockets are manufactured to accept a 2517 size taper bushing which we also stock with a wide range of bore sizes. We also have sprockets with finished bore configurations, and if you are needing a custom bore sprocket we can do those as well. For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Click Here To See Our Other Products!
140BTB12 Sprocket Dimensions
- Sprocket Size: 140BTB12
- Tooth Count: 12
- Bushing Size: 2517
- Outside Diameter: 7.581"
- Pitch Diameter: 6.762"
- Maximum Bore: 2-1/2"
- Dimension (L): 1-3/4"
- Dimension (C): 4-1/4"
- Sprocket Type: B
- Bushing Weight: 3.5 LBS
- Sprocket Weight: 7.0 LBS
Phone: (407) 347-3519
Email:
Click Here To See Our Other Products!
Feature
- Premium Quality Sprocket
- Fully Meets All ANSI Standards
- High Performance
- Extremely Durable
- Fully Black Oxide Coated
- Sprocket Size: 140BTB12
- Tooth Count: 12
- Bushing Size: 2517
- Outside Diameter: 7.581"
- Pitch Diameter: 6.762"
- Maximum Bore: 2-1/2"
- Dimension (L): 1-3/4"
- Dimension (C): 4-1/4"
- Sprocket Type: B
- Bushing Weight: 3.5 LBS
- Sprocket Weight: 7.0 LBS
