Premier Series #120-5 Five Strand Cottered Roller Chain - 10ft Box

Premier Series #120-5 Five Strand Cottered Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
Product Code: PREMIUM-120-5-COT-10FT
Shipping calculated at checkout.
Other Customers Viewed
Premium #120-5 Roller Chain Connecting Link (Master Link)
Premium #120-5 Roller Chain Connecting Link (Master Link)
Login
Premium #120-5 Offset Link | 120-5 Chain Half Link
Premium #120-5 Offset Link | 120-5 Chain Half Link
Login
View full details
Description
Specification

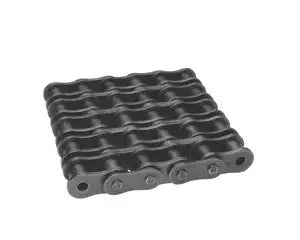

Premier Series #120-5 Five Strand Cottered Roller Chain

This #120-5 Five Strand Cottered Roller chain is a premium quality, high strength, and extremely durable roller chain. One of the most important features that make this chain last longer than others is that it features fully heat-treated and shot peened solid bushings. It also features heat-treated, wide couture side plates that increases working load and the overall performance of the roller chain. Premier Series #120-5 Cottered roller chain also features heat-treated, hardened pins. This increases the shock load rating and durability of the roller chain. Another important feature of this roller chain is that it has solid rollers, which increases the overall performance of the chain and the working life. Premier Series roller chains are engineered to be a high strength and durable roller chain with great performance and a long working life. This roller chain is commonly supplied, as 10ft boxes including one connecting link per box, but alternate lengths are available upon request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation and keep you up and running. Another thing that extra connecting links and offset links are good for is making those miscellaneous repairs that need to be done to keep you in operation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For pricing and availability on the Premier Series #120-5 Cottered Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: #120-5
  • Tensile Strength: 187,000lbs
  • Pitch (P): 1.500"
  • Roller Width (W): 1.000"
  • Roller Diameter (D): 0.875"
  • Link Plate Height (H): 1.425"
  • Link Plate Thickness (T): 0.189"
  • Pin Diameter (E): 0.437"
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality
  • Tensile Strength: 187,000lbs
  • Working Load: 26,598lbs
  • Constructed of Premium Quality Steel
  • Constructed of Hardened Steel For Increased Strength & Performance
  • Shot Peened For Increased Fatigue & Durability
  • Pre-stretched For Higher Ware Resistance
  • Solid Bushings & Rollers For Better Performance & Overall Operation
  • Fully Meets All ANSI Standards
Featured image
  • Chain Size: #120-5
  • Tensile Strength: 187,000lbs
  • Pitch (P): 1.500"
  • Roller Width (W): 1.000"
  • Roller Diameter (D): 0.875"
  • Link Plate Height (H): 1.425"
  • Link Plate Thickness (T): 0.189"
  • Pin Diameter (E): 0.437"
  • Specifications Met: ANSI Standards
