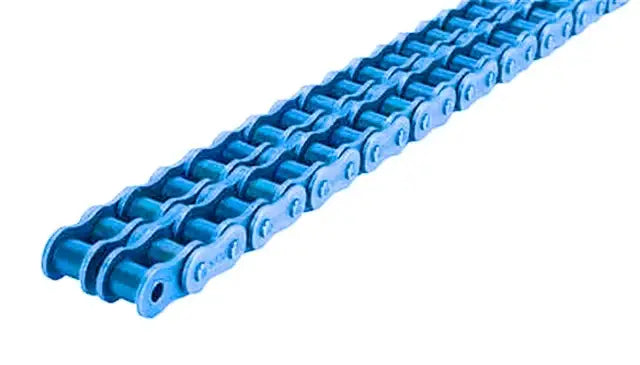

This #100-2 Double Strand Coated Roller Chain is highly resistant to corrosion. This double strand coated roller chain is more resistant to corrosion than nickel plated roller chain and is often times more cost effective. The baked on coating is applied in a way to reduce premature corrosion and failure. This roller chain fully meets all ANSI standards and will work on standard roller chain sprockets. #100-2 double strand coated roller chain is commonly supplied in 10ft boxes, each box includes one connecting link. If alternate footage lengths, attachments, or any addition modifications are needed please contact us.

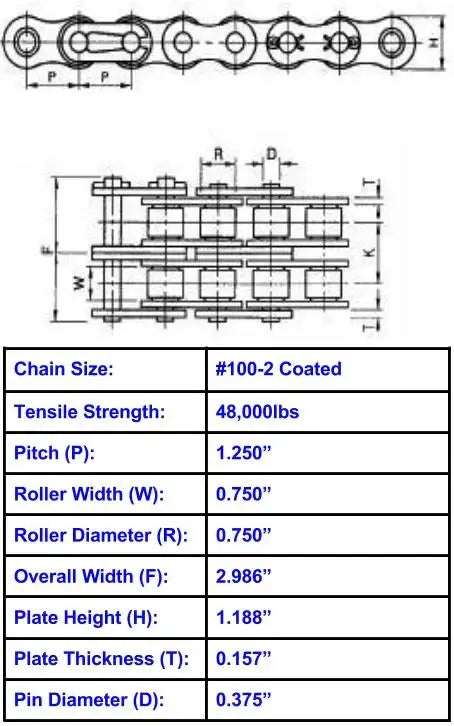

Dimensions:

• Chain Size: #100-2 Coated
• Tensile Strength: 48,000lbs
• **Note: All Dimensions Are in Inches**
• Pitch (P): 1.250
• Roller Width (W): 0.750
• Roller Diameter (D): 0.750
• Overall Chain Width: 2.986
• Link Plate Height (H): 1.188
• Link Plate Thickness (T): 0.157
• Pin Diameter (E): 0.375
• Specifications Met: ANSI Standards
