NH78 Non Metallic Chain Features
NH78 Non Metallic Chain Specifications

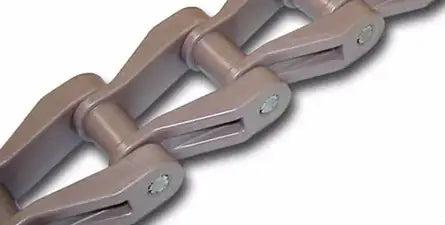

NH78 Non Metallic Chain is a plastic chain that features an ultimate strength of 5,000 LBS and a maximum working load of 5,000 LBS. This chain is manufactured to be high strength, lightweight, and extremely corrosion resistant. It features glass filled nylon links and 304 grade stainless steel pins and clips. Commonly NH78 Non Metallic Chain is used as a drive chain for wastewater treatment applications as well as other applications that require a high strength non-metallic chain. This chain is designed to run in both directions.

Besides the NH78 Non Metallic Chain we offer a full line of sprockets, bearings, drives, shafting, wear components, flights, and skimmer assemblies. USA Roller Chain and Sprockets sets its self apart from the competition by having 100+ years of customer experience, extremely competitive pricing, a wide range of inventory, and rapid fast customer service. To get a quote or for more information on NH78 non-metallic chain please contact us and we will be happy to assist you.

Dimensions:
NH78 Non Metallic Chain
  • Chain Size: NH78 Non Metallic
  • Pitch: 2.609"
  • Pin Diameter (D): 0.38"
  • Sidebar Height (F): 1.12"
  • Barrel Diameter (H): 0.88"
  • Maximum Sprocket Face (A): 0.94"
  • Bearing Length (X): 1.62"
  • Overall Width (E): 3.19"
  • Head of Pin to Center Line (J): 2.10"
  • End of Pin To Center Line Cottered (K): 2.19"
  • End of Pin To Center Line Riveted (L): 1.59"
  • Maximum Recombined Working Load: 1,750 LBS
  • Average Ultimate Strength: 3,100 LBS
  • Links Per 10ft: 46
  • Weight: 1.5 LBS/ FT
  • Link Material: Nylon-6
  • Pin Material: Stainless Steel
