D60R60 sprocket double D60R60 sprocket

Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Double Roller Chain Sprockets > #60-2 Double Sprockets > #60-2 R-Type Sprockets

D60R60 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$544.99
SKU: D60R60-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715075408239" , "metafield_value":""}]
D60R60 Sprocket (Taper Bushed) Features
D60R60 Sprocket (Taper Bushed) Specifications

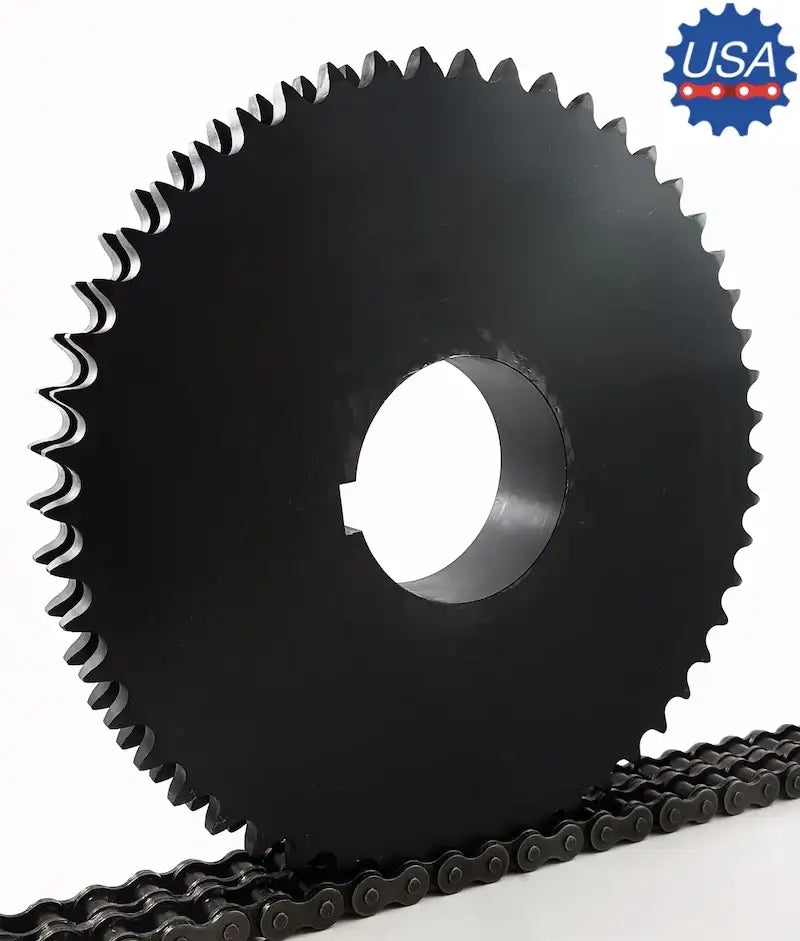

This D60R60 sprocket is a durable, high quality, and precision double sprocket with 60 teeth that is manufactured to accept a R1 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Besides the D60R60 sprocket we have a full line of premium R1 bushings right off the shelf. We also have sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:
D60R60 Sprocket (Taper Bushed)
  • Sprocket Size: D60R60
  • Tooth Count: 60
  • Bushing Type: R1
  • Outside Diameter: 14.760"
  • Pitch Diameter: 14.331"
  • Sprocket Type: 12
  • Dimension (OL): 3-5/32"
  • Dimension (L): 2-7/8"
  • Dimension (C): 0"
  • Dimension (H): 5-3/8"
  • Dimension (P): 1-17/32"
  • Dimension (T): 0.444"
  • Bushing Weight: 7.5 LBS
  • Sprocket Weight: 54.8 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: D60R60
  • Tooth Count: 60
  • Bushing Type: R1
  • Outside Diameter: 14.760"
  • Pitch Diameter: 14.331"
  • Sprocket Type: 12
  • Dimension (OL): 3-5/32"
  • Dimension (L): 2-7/8"
  • Dimension (C): 0"
  • Dimension (H): 5-3/8"
  • Dimension (P): 1-17/32"
  • Dimension (T): 0.444"
  • Bushing Weight: 7.5 LBS
  • Sprocket Weight: 54.8 LBS
