D100S60 Sprocket (Taper Bushed)
Home > Power Transmission > Sprockets > Roller Chain Sprockets > D100S60 Sprocket (Taper Bushed)

D100S60 Sprocket (Taper Bushed)

Note: Se habla espanol
$2,991.99
SKU: D100S60-SPROCKET
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable
Quantity
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51715030483311" , "metafield_value":""}]
D100S60 Sprocket (Taper Bushed) Description/Features
D100S60 Sprocket (Taper Bushed) Specifications

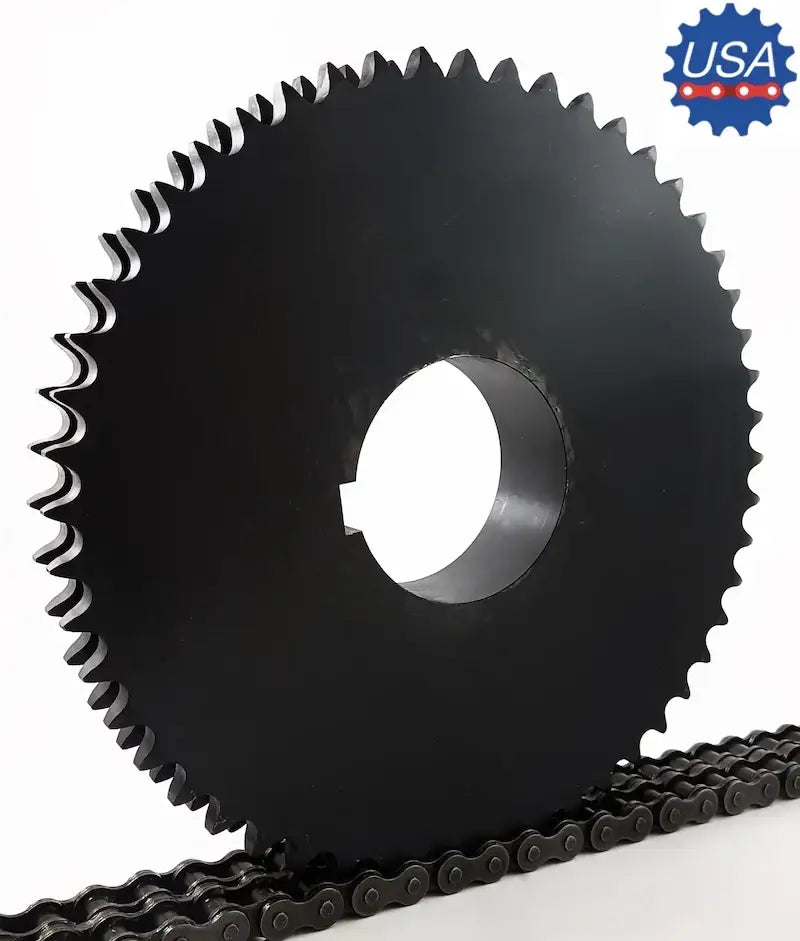

This D100S60 sprocket is a durable, high quality, and precision double sprocket with 60 teeth that is manufactured to accept a S1 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #100-2 double roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment, preventing early rust build up. Besides the D100S60 sprocket we have a full line of premium S1 bushings right off the shelf. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities of providing those as well. For more information please contact us and we will be happy to assist you.

Dimensions:
D100S60 Sprocket (Taper Bushed)
  • Sprocket Size: D100S60
  • Tooth Count: 60
  • Bushing Type: S1
  • Outside Diameter: 24.600"
  • Pitch Diameter: 23.884"
  • Sprocket Type: 15
  • Maximum Bore: 4-1/4"
  • Dimension (OL): 4-3/4"
  • Dimension (L): 4-3/8"
  • Dimension (C): 1-15/64"
  • Dimension (H): 6-3/8"
  • Dimension (P): 1-1/16"
  • Dimension (T): 0.669"
  • Bushing Weight: 13.5 LBS
  • Sprocket Weight: 251.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!
  • Sprocket Size: D100S60
  • Tooth Count: 60
  • Bushing Type: S1
  • Outside Diameter: 24.600"
  • Pitch Diameter: 23.884"
  • Sprocket Type: 15
  • Maximum Bore: 4-1/4"
  • Dimension (OL): 4-3/4"
  • Dimension (L): 4-3/8"
  • Dimension (C): 1-15/64"
  • Dimension (H): 6-3/8"
  • Dimension (P): 1-1/16"
  • Dimension (T): 0.669"
  • Bushing Weight: 13.5 LBS
  • Sprocket Weight: 251.0 LBS
