100-2 Roller Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: ECO-100-2-10FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
100-2 Roller Chain 10ft Box Features
100-2 Roller Chain 10ft Box Specifications
This 100-2 roller chain fully meets all ANSI standards and is a durable, economically priced roller chain that has a tensile strength of 48,000lbs. The Economy Plus series roller chains feature heat-treated side plates to ensure the strength and durability of the roller chain. This roller chain also features solid rollers which will increase the performance and overall working life of the chain. Economy Plus 100-2 double strand roller chain is commonly supplied as 10ft boxes, but alternate lengths are available per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality 100-2 attachments.
In addition to the chain we also have a full line of premium 100-2 roller chain sprockets in stock. For additional information or general questions on 100-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.
We can supply 100-2 roller chain attachments, however there is typically a lead time on these items because they are not in stock. A standard lead time can range from 1-week to 12-weeks depending on the attachment type, factory load, and quantity. We can also supply a complete chain with the attachments already assembled onto it. To get a quote on 100-2 attachments or attachment roller chain you can give us a call or submit a request for quote form on our roller chain attachments section.
If you need to pull, break, or tension your 100-2 roller chain we can supply the tools and accessories necessary to do so. We also stock roller chain guides for double strand roller chains, as well as chain lube.

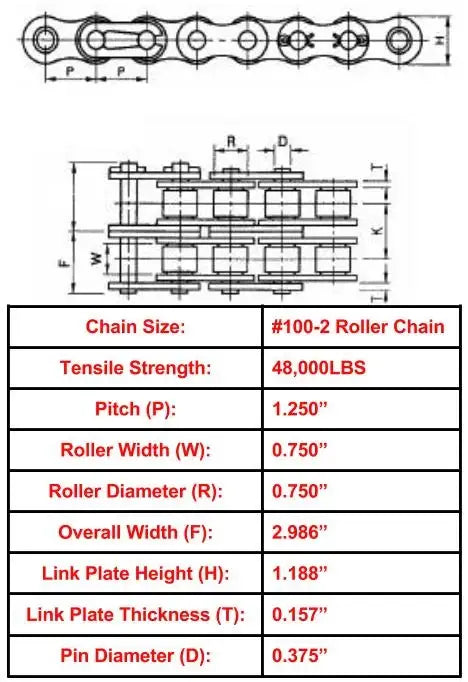

100-2 Roller Chain Dimensions
- ANSI #100-2 Roller Chain
- Tensile Strength: 48,000lbs
- Pitch (P): 1.250"
- Roller Width (W): 0.750"
- Roller Diameter (R): 0.750"
- Overall Chain Width (F): 2.986"
- Link Plate Height (H): 1.188"
- Link Plate Thickness (T): 0.157"
- Pin Diameter (D): 0.375"
- Specifications Met: ANSI Standards
100-2 Double Roller chain Sprockets
In addition to the chain we also have a full line of premium 100-2 roller chain sprockets in stock. For additional information or general questions on 100-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.
100-2 Chain Attachments
We can supply 100-2 roller chain attachments, however there is typically a lead time on these items because they are not in stock. A standard lead time can range from 1-week to 12-weeks depending on the attachment type, factory load, and quantity. We can also supply a complete chain with the attachments already assembled onto it. To get a quote on 100-2 attachments or attachment roller chain you can give us a call or submit a request for quote form on our roller chain attachments section.
Additional 100-2 Chain Accessories
If you need to pull, break, or tension your 100-2 roller chain we can supply the tools and accessories necessary to do so. We also stock roller chain guides for double strand roller chains, as well as chain lube.
- Chain Size: #100-2
- Tensile Strength: 48,000lbs
- Pitch (P): 1.250"
- Roller Width (W): 0.750"
- Roller Diameter (R): 0.750"
- Overall Chain Width (F): 2.986"
- Link Plate Height (H): 1.188"
- Link Plate Thickness (T): 0.157"
- Pin Diameter (D): 0.375"
- Specifications Met: ANSI Standards
