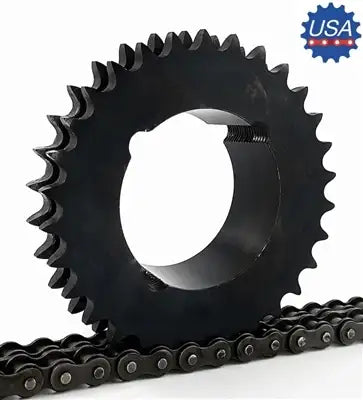

D08BTB30 Sprocket (Taper Bushed)
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: D08BTB30-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
D08BTB30 Sprocket (Taper Bushed) Description/Features
D08BTB30 Sprocket (Taper Bushed) Specifications
This D08BTB30 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 2012 taper bushing. Our D08BTB30 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our D08BTB30 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 30 tooth sprocket, we also stock a high-quality 08B-2 roller chain, 2012 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed D08BTB30 sprockets, please contact us and one of our sales team members will be happy to assist you.
D08BTB30 Sprocket Dimensions
- Sprocket Size: D08BTB30
- Tooth Count: 30
- Pitch Diameter: 121.50mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Length Thru Bore (L): 31.75mm
- Hub Diameter (C): 108mm
- Sprocket Weight: 1.59 kG
- Bushing Weight: 0.77 kG
- Sprocket Size: D08BTB30
- Tooth Count: 30
- Pitch Diameter: 121.50mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Length Thru Bore (L): 31.75mm
- Hub Diameter (C): 108mm
- Sprocket Weight: 1.59 kG
- Bushing Weight: 0.77 kG
