NH 78 Drive Chain

Note: Custom Cut to Length Chain Also Available
SKU: NH-78-DRIVE-CHAIN
Only 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715294167407" , "metafield_value":""}]
NH 78 Drive Chain Features
NH 78 Drive Chain Specifications

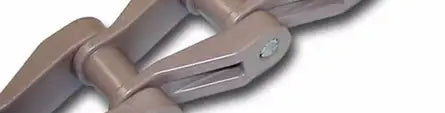

NH78 Drive Chain is a plastic chain that features an ultimate strength of 5,000 LBS and a maximum working load of 5,000 LBS. This chain is manufactured to be high strength, lightweight, and extremely corrosion resistant. It features glass filled nylon links and 304 grade stainless steel pins and clips. Commonly NH78 Drive Chain is used as a drive chain for wastewater treatment applications as well as other applications that require a high strength non-metallic chain. This chain is designed to run in both directions.

Besides the NH78 Chain we offer a full line of sprockets, bearings, drives, shafting, wear components, flights, and skimmer assemblies. USA Roller Chain and Sprockets sets its self apart from the competition by having 100+ years of customer experience, extremely competitive pricing, a wide range of inventory, and rapid fast customer service. To get a quote or for more information on NH78 drive chain please contact us and we will be happy to assist you.

Dimensions:
NH 78 Drive Chain
  • Chain Size: NH78 Drive
  • Pitch: 2.609"
  • Pin Diameter (D): 0.38"
  • Sidebar Height (F): 1.12"
  • Barrel Diameter (H): 0.88"
  • Maximum Sprocket Face (A): 0.94"
  • Bearing Length (X): 1.62"
  • Overall Width (E): 3.19"
  • Head of Pin to Center Line (J): 2.10"
  • End of Pin To Center Line Cottered (K): 2.19"
  • End of Pin To Center Line Riveted (L): 1.59"
  • Maximum Recombined Working Load: 1,750 LBS
  • Average Ultimate Strength: 3,100 LBS
  • Links Per 10ft: 46
  • Weight: 1.5 LBS/ FT
  • Link Material: Nylon-6
  • Pin Material: Stainless Steel
