D50B15H Sprocket With Stock Bore

Name: D50B15H Sprocket With Stock Bore
Brand: USA ROLLER CHAIN
SKU: D50B15H-SPROCKET
Price: 49.99 USD
Availability: InStock

Note: Contact Us For Large Quantity Request

$49.99

SKU: D50B15H-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

D50B15H Sprocket With Stock Bore Description/Features

D50B15H Sprocket With Stock Bore Specifications

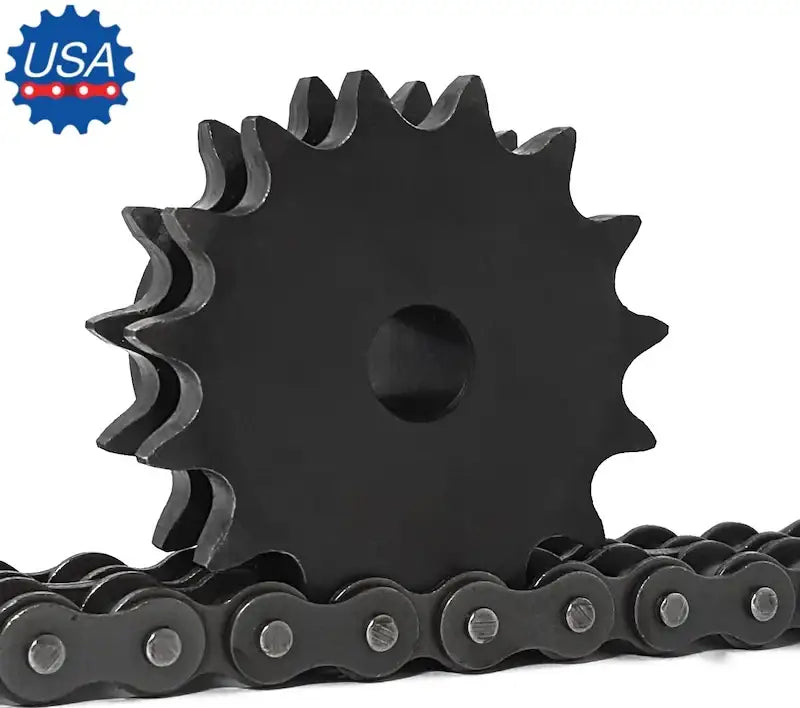

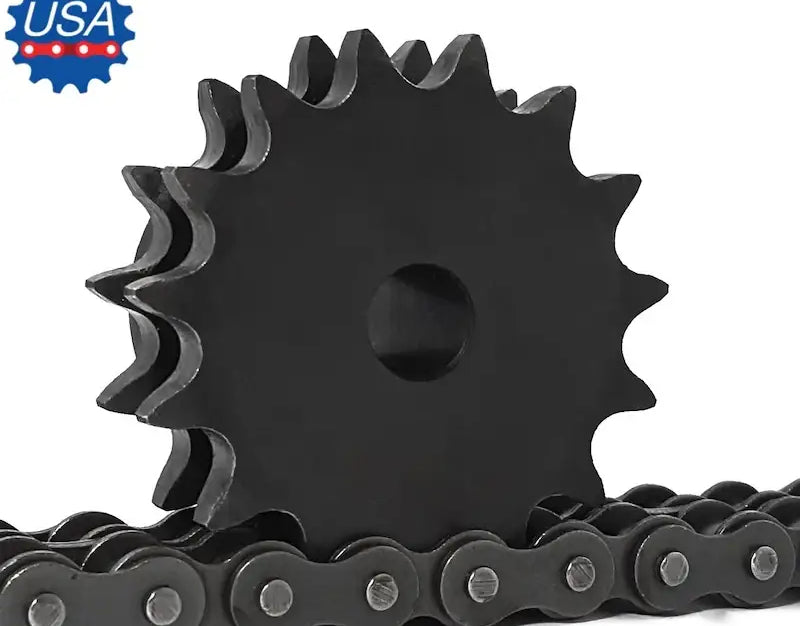

This D50B15H sprocket is a durable, high quality, and precision double sprocket with 15 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D50B15H sprockets with a stock bore is supplied with a standard 3/4" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: D50B15H
Tooth Count: 15
Outside Diameter: 3.320"
Hub Type: B
Bore Size: 3/4"
Recommended Maximum: 1-1/2"
Hub Diameter: 2-5/16"
Length Thru Bore: 1-3/4"
Weight: 2.22 LBS
Interchanges: D50B15H, D50B15, HD50B15
