Power Transmission > Sprockets > Metric Roller Chain Sprockets > 16B-2 Chain Sprockets

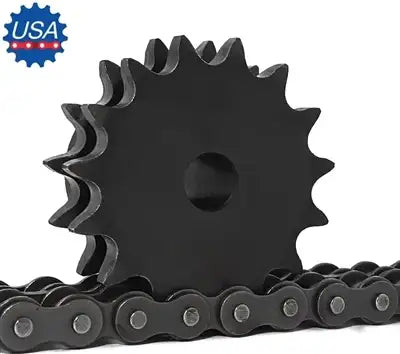

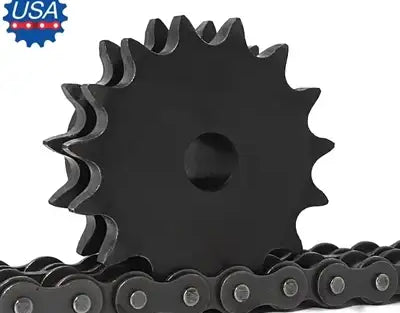

D16B16 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
SKU: D16B16-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D16B16 Sprocket With Stock Bore Features
D16B16 Sprocket With Stock Bore Specifications
This D16B16 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our D16B16 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our double D16B16 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 16 tooth sprocket, we also stock a high-quality 16B-2 roller chain and a wide array of roller chain accessories. For more information or to get a quote on D16B16 sprockets, please contact us and one of our sales team members will be happy to assist you.
D16B16 Sprocket Dimensions
- Sprocket Size: D16B16
- Tooth Count: 16
- Pitch Diameter: 130.20mm
- Stock Bore: 20mm
- Maximum Bore Size: 66mm
- Hub Diameter (C): 104mm
- Length Thru Bore (L): 70mm
- Sprocket Weight: 5.22 kG
- Sprocket Size: D16B16
- Tooth Count: 16
- Pitch Diameter: 130.20mm
- Stock Bore: 20mm
- Maximum Bore Size: 66mm
- Hub Diameter (C): 104mm
- Length Thru Bore (L): 70mm
- Sprocket Weight: 5.22 kG
