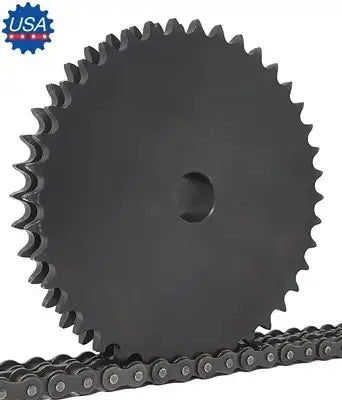

D10B48 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
SKU: D10B48-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D10B48 Sprocket With Stock Bore Features
D10B48 Sprocket With Stock Bore Specifications
This D10B48 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228/11. Our D10B48 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our double D10B48 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 48 tooth sprocket, we also stock a high-quality 10B-2 roller chain and a wide array of roller chain accessories. For more information or to get a quote on D10B48 sprockets, please contact us and one of our sales team members will be happy to assist you.
D10B48 Sprocket Dimensions
- Sprocket Size: D10B48
- Tooth Count: 48
- Pitch Diameter: 242.73mm
- Stock Bore: 30mm
- Maximum Recommended Bore: 80mm
- Hub Diameter (H): 120mm
- Length Thru Bore (L): 60mm
- Sprocket Weight: 10.92 kg
- Sprocket Size: D10B48
- Tooth Count: 48
- Pitch Diameter: 242.73mm
- Stock Bore: 30mm
- Maximum Recommended Bore: 80mm
- Hub Diameter (H): 120mm
- Length Thru Bore (L): 60mm
- Sprocket Weight: 10.92 kg
